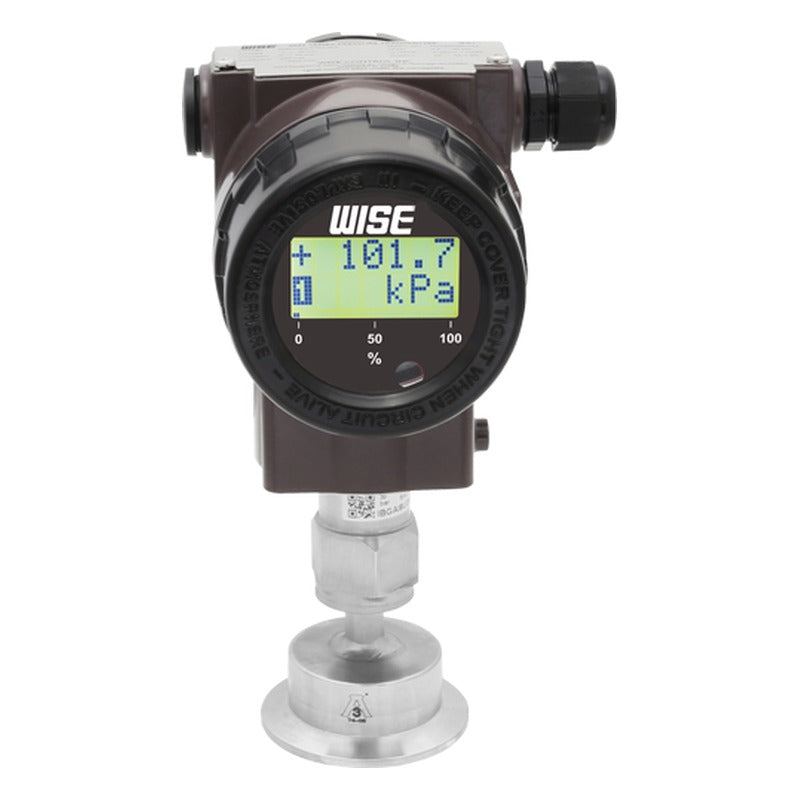

WISE P791S Sanitary Diaphragm Seal for Pressure Transmitter

Sanitary diaphragm seal with flush, aseptic process connection for SMT2002/SMT2003 pressure transmitters. Used in dairy, food, beverage, biochemical and pharmaceutical processes including fermentation tanks.

Key features

3-A certificated, suitable for SIP and CIP
Flush aseptic connection with rotatable retainer flange
Tri-clamp 1 1/2", 2", 3" or DRD flange DN50
FDA certified food grade fill oil
Surface roughness Ra ≤ 0.76 µm

Specifications

Transmitter	SMT2002, SMT2003
Process connection	1 1/2", 2", 3" Tri-clamp; DRD flange (DN50)
Diaphragm	316L SS, Hastelloy C276 (tri-clamp only)
Body	316L SS; DRD flange 316L SS (1.4435)
Surface roughness	Ra ≤ 0.76 µm
System filling	Food grade oil (FDA certified)
Working temperature	Ambient -20~65 °C; fluid max. 121 °C
Measuring range	Sensor D: -1~2.5 bar; sensor E: -1~30 bar (SMT2002)
Certificates	3-A
Ordering options	Transmitter model, connection, unit, span, diaphragm material
Source	WISE data sheet PD07-11

P791S

Conn: Tri-clamp / DRD DN50 | Cert: 3-A
