WISE Pressure Switches
WISE Pressure Switches
Explosion-proof process pressure switch and UHP pressure switch for alarm and interlock duty.
Specifications
| Industries (catalogs) | General Process, Semiconductor |
|---|

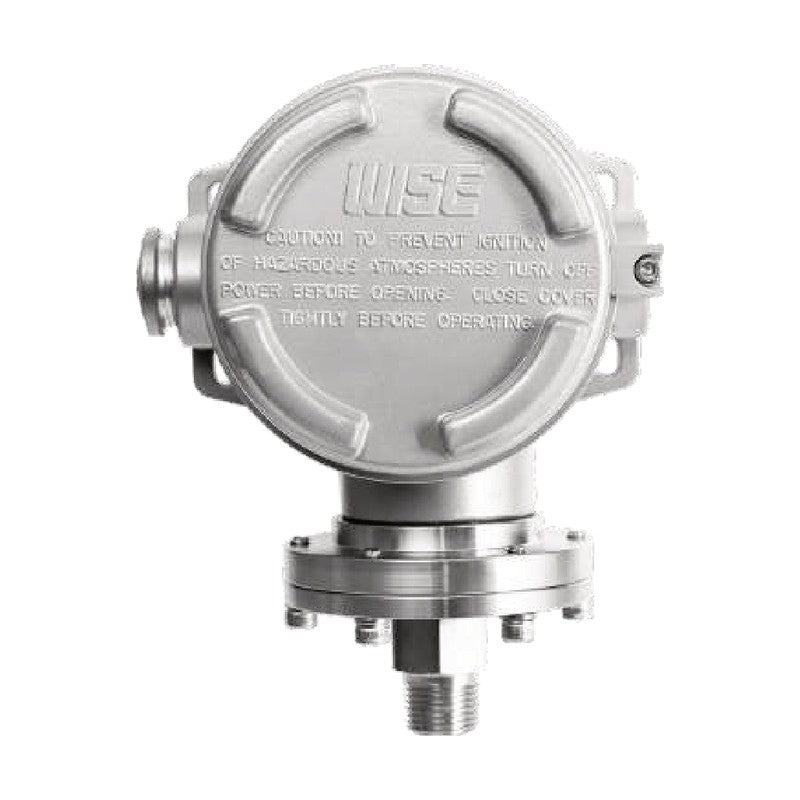

| P953 | Product: Explosion Proof Pressure Switch | Range: 0.3kPA to 15MPa, -1.0~0.15bar | Case: ALDC 12.1(Silver gray painted) | Element: 316L SS, Monel, Hastelloy-C | Contact: Micro Contact type / One SPDT / Two SPDT | |
| P840 | Product: UHP Pressure Switch | Nominal Diameter: 50mm(2ˮ) | Switch Point Accuracy: ±2.0% of full scale | Scale Range: 0~25MPa | Pressure Connection: 316L SS Electropolished low mount or center back / mount surface finish Ra ≤ 0.25㎛ / ·1/4ˮNPT male thread / ·Swivel male or female face seal fitting | Element: Type 316L SS / < 6MPa: C-type bourdon tube / ≥ 6MPa: Helical type bourdon tube | Case: Type 304SS, Electropolished with pressure relief | Connection: 26 AWG, Teflon, 6 feet(2M) |
Pressure Switches & MonitoringWISE
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
WISE Pressure Switches
Available part numbers (2)
P953, P840
How to order
Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
WISE
Pressure Switches & Monitoring
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| P953 | Product: Explosion Proof Pressure Switch | Range: 0.3kPA to 15MPa, -1.0~0.15bar | Case: ALDC 12.1(Silver gray painted) | Element: 316L SS, Monel, Hastelloy-C | Contact: Micro Contact type / One SPDT / Two SPDT | ||
| P840 | Product: UHP Pressure Switch | Nominal Diameter: 50mm(2ˮ) | Switch Point Accuracy: ±2.0% of full scale | Scale Range: 0~25MPa | Pressure Connection: 316L SS Electropolished low mount or center back / mount surface finish Ra ≤ 0.25㎛ / ·1/4ˮNPT male thread / ·Swivel male or female face seal fitting | Element: Type 316L SS / < 6MPa: C-type bourdon tube / ≥ 6MPa: Helical type bourdon tube | Case: Type 304SS, Electropolished with pressure relief | Connection: 26 AWG, Teflon, 6 feet(2M) |
