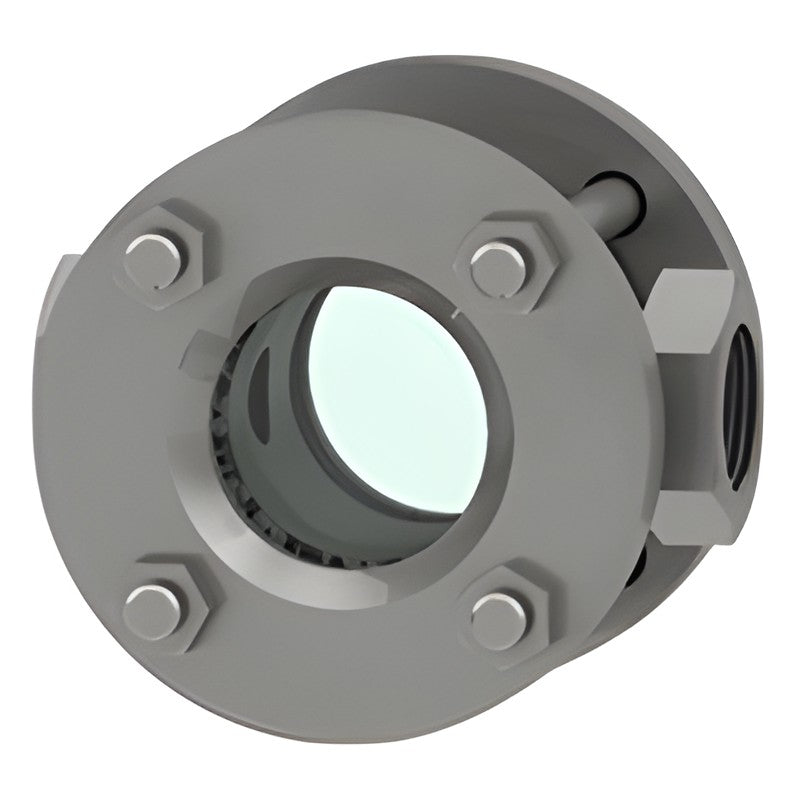

WISE S100/S110 See-Through Type Sight Glass

WISE S100 series see-through sight glasses let operators observe flow direction, colour and clarity of liquid in a pipeline. S100 has screwed/socket ends; S110 is flanged.

Key features

Direct see-through window
Tempered glass
Screwed, socket or flanged ends
Cast carbon or stainless steel body

Specifications

Max. pressure	2.9 MPa
Max. temperature	300 C
Glass	Tempered
Sizes	S100: 8-25A (1/4"-1"); S110: 15-150A (1/2"-6")
Body material	A216 WCB, A351 CF8, A351 CF8M; S110 also A106 Gr.B
Flange ratings	JIS 10K/20K, ANSI 150/300 Lb, PN10/PN16
Screwed ends	NPT (F) or PT (F)
Gaskets	Non-asbestos, Teflon
Ordering options	Line size, glass, flange rating, screwed connection, gasket, body material
Source	WISE data sheet SD01-01

S100		Ends: Screwed/socket \| Size: 1/4"-1"
S110		Ends: Flanged \| Size: 1/2"-6"
