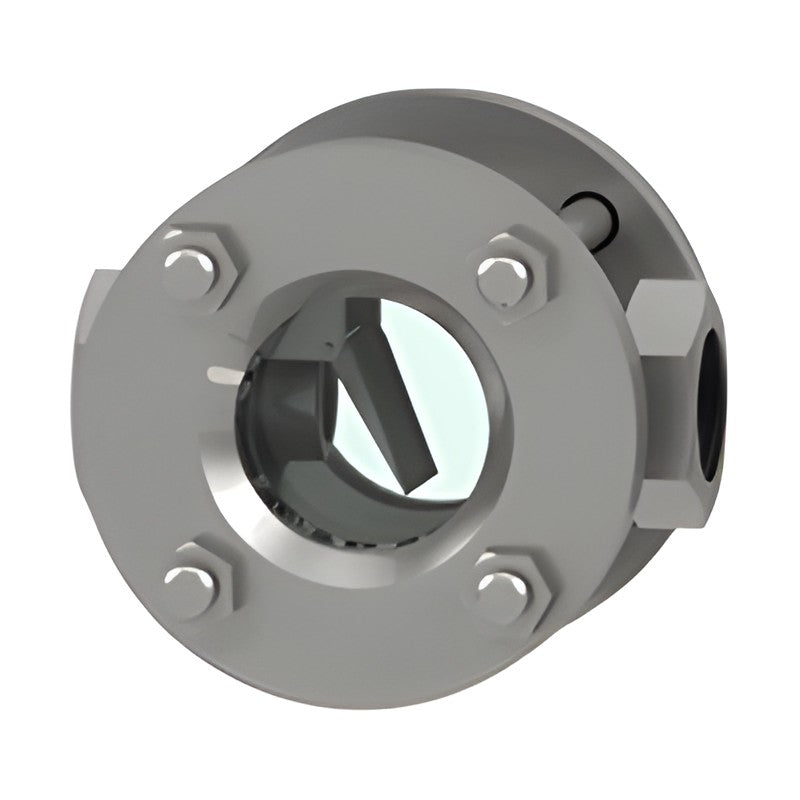

WISE S200/S210 Flapper Type Sight Glass

WISE S200 series flapper sight glasses show the state of fluid flow by the opening and closing of an internal flapper. S200 has screwed/socket ends; S210 is flanged.

Key features

Internal flapper shows flow
Tempered glass
Screwed, socket or flanged ends
Cast carbon or stainless steel body

Specifications

Max. pressure	2.9 MPa
Max. temperature	300 C
Glass	Tempered
Sizes	S200: 8-25A (1/4"-1"); S210: 15-150A (1/2"-6")
Body material	A216 WCB, A351 CF8, A351 CF8M; S210 also A106 Gr.B
Flange ratings	JIS 10K/20K, ANSI 150/300 Lb, PN10/PN16
Screwed ends	NPT (F) or PT (F)
Gaskets	Non-asbestos, Teflon
Ordering options	Line size, glass, flange rating, screwed connection, gasket, body material
Source	WISE data sheet SD02-01

S200		Ends: Screwed/socket \| Size: 1/4"-1"
S210		Ends: Flanged \| Size: 1/2"-6"

Sight GlassesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE S200/S210 Flapper Type Sight Glass

Brand WISE·Sight Glasses

Available part numbers (2)

S200, S210

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	S200	Ends: Screwed/socket \| Size: 1/4"-1"
	S210	Ends: Flanged \| Size: 1/2"-6"
