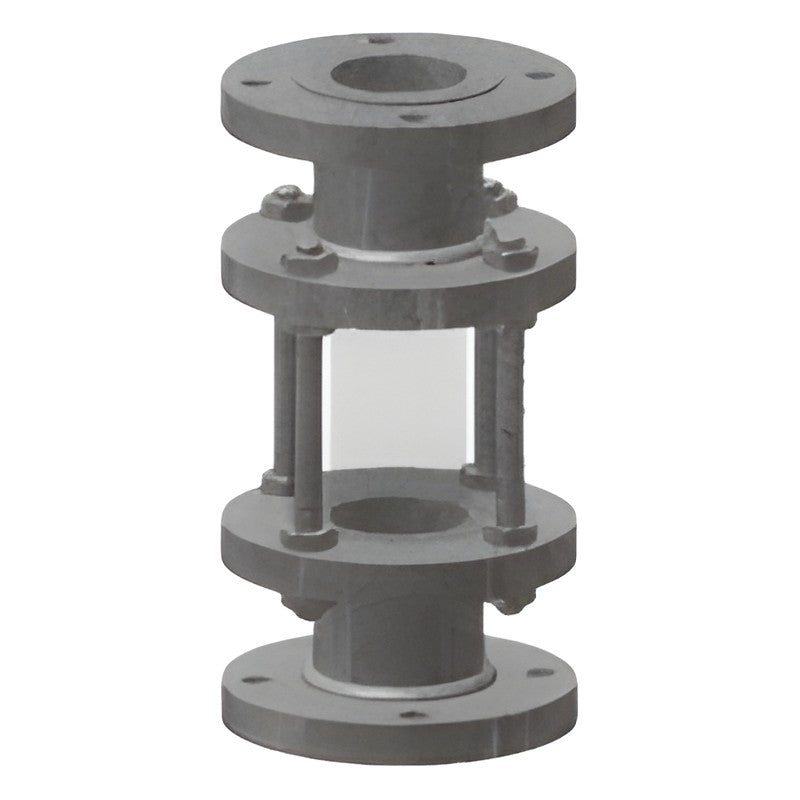

WISE S400/S410 Lantern Type Sight Glass

WISE S400/S410 Lantern Type Sight Glass

WISE S400 series lantern sight glasses use a cylindrical glass so fluid flow can be checked from any direction in low-pressure lines. S400 is the long type; S410 the short type.

Key features

  • 360-degree view of flow
  • For low-pressure service
  • Flanged ends
  • Carbon or stainless steel plate body

Specifications

Max. pressure 0.7 MPa
Max. temperature 100 C
Glass Tempered
Sizes 15A-200A (1/2"-8")
Connection Flanged
Body material Carbon steel, 304SS, 316SS plate
Flange ratings JIS 10K/20K, ANSI 150/300 Lb, PN10/PN16
Gaskets Non-asbestos, Teflon
Ordering options Line size, glass, flange rating, gasket, body material
Source WISE data sheet SD04-01
S400 Type: Long | Size: 1/2"-8" | Conn: Flanged
S410 Type: Short | Size: 15A-200A | Conn: Flanged
Sight GlassesWISE
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE S400/S410 Lantern Type Sight Glass

Brand WISE·Sight Glasses

Available part numbers (2)

S400, S410

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S400Type: Long | Size: 1/2"-8" | Conn: Flanged
S410Type: Short | Size: 15A-200A | Conn: Flanged
