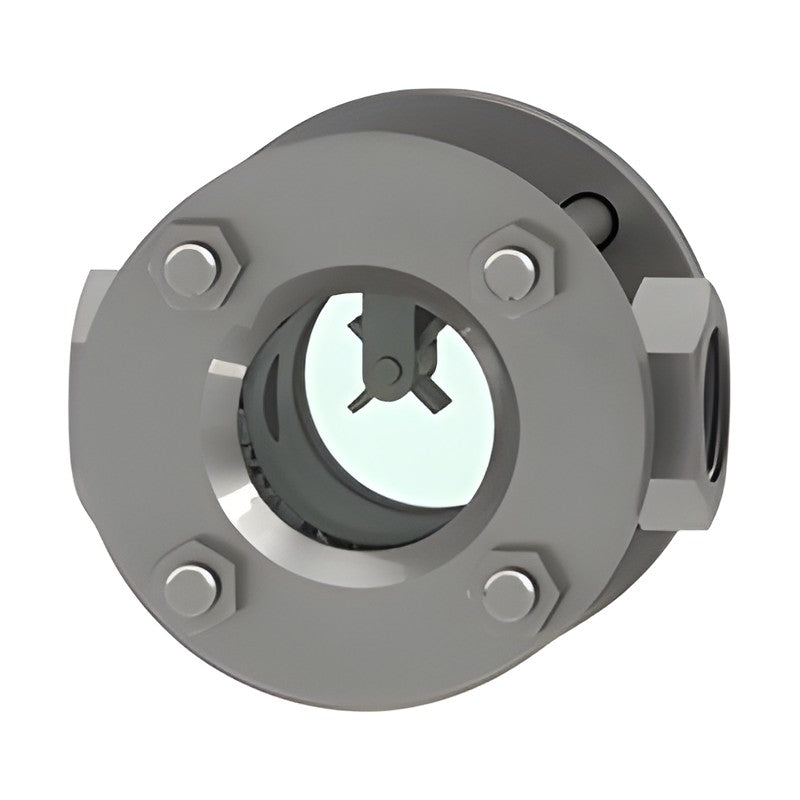

WISE S500/S510 Rotary Type Sight Glass

WISE S500 series rotary sight glasses give visual flow indication by a rotor that turns as fluid passes. S500 has screwed/socket ends; S510 is flanged.

Key features

Rotor turns with flow
Tempered glass
Screwed, socket weld or flanged ends
316L SS rotor

Specifications

Max. pressure	2.9 MPa
Max. temperature	300 C
Glass	Tempered
Sizes	S500: 8-25A (1/4"-1"); S510: 15-150A (1/2"-6")
Body / cover	A216 WCB/CS, A351 CF8/304SS, A351 CF8M/304SS, A351 CF3M/304SS
Connection	ANSI 150/300 Lb RF/FF, JIS 10K/20K RF/FF, NPT (F), PT (F), SW
Gaskets	Non-asbestos with Teflon or graphite
Rotor	316L SS
Ordering options	Line size, connection, body/cover, glass, gasket, rotor material
Source	WISE data sheet SD05-01

S500		Ends: Screwed/socket \| Size: 1/4"-1"
S510		Ends: Flanged \| Size: 1/2"-6"

Sight GlassesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE S500/S510 Rotary Type Sight Glass

Brand WISE·Sight Glasses

Available part numbers (2)

S500, S510

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	S500	Ends: Screwed/socket \| Size: 1/4"-1"
	S510	Ends: Flanged \| Size: 1/2"-6"
