WISE Temperature Transmitters

WISE Temperature Transmitters

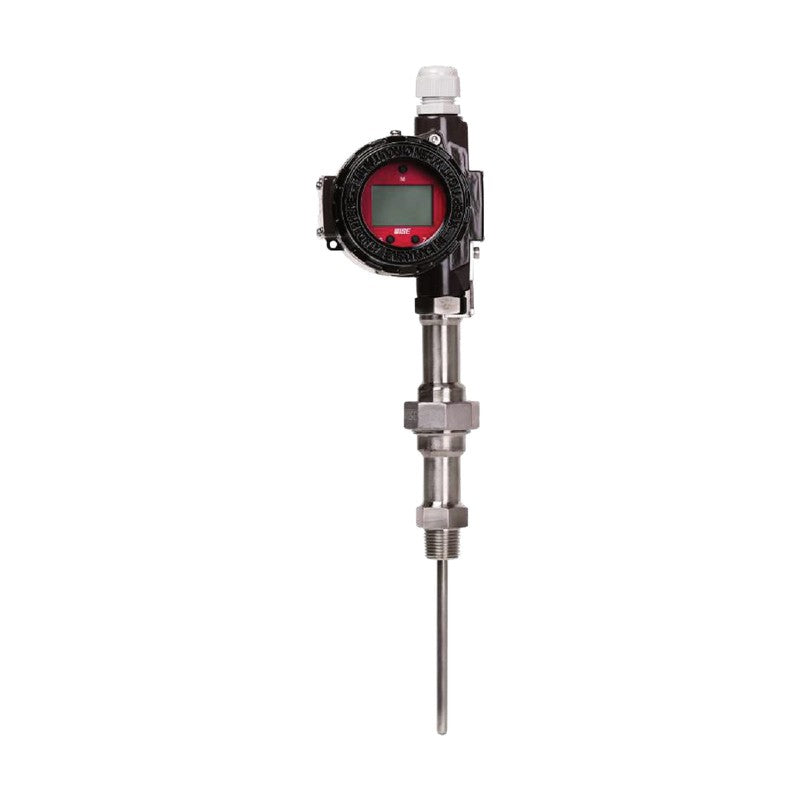

Head-mount and slim temperature transmitters converting thermocouple or RTD signals to 4-20 mA (HART on SMT3000).

Specifications

Industries (catalogs) Battery and Clean Energy, General Process, Pharma and Bio, Shipbuilding and Offshore
WISE Temperature TransmittersWISE Temperature Transmitters
SMT3000 Product: Temperature Transmitter | Working Temperature: Ambient: -40~65°C | Power Supply: 10 ~ 42VDC | Input: Thermocouple: K, J, T, N, E, B, R, S / RTD: Pt 100 Ω at 0°C | Sheath Material: Thermocouple: 316L SS, Inconel 600, 310SS, 446SS, / 347SS, 321SS / RTD: 316L SS | Output: 4~20mA with HART Protocol
WTT-3100 Product: Temperature Transmitter | Working Temperature: -40~85°C | Input: Thermocouple: K, E, N, T, J, B, R, S / RTD: Pt 100Ω at 0°C | Output: 4~20 mA with HART Protocol
WTT-3200 Product: Temperature Transmitter | Working Temperature: -40~85°C | Input: Thermocouple: K, E, N, T, J, B, R, S / RTD: Pt 100Ω at 0°C | Output: 4~20 mA with HART Protocol
BTT3000 Product: Slim Type Temperature Transmitter (3-A Marking) | Process Connection: G 3/8”(F)(With well type) | Material: 316L SS | Working Temperature: Ambient: -40 to 85°C / Process: -50 to 200°C(With well type) | Power Supply: DC 10~30V | Input: RTD: Pt100Ω at 0°C(A Class) / RTD: Pt100Ω at 0°C(B Class) | Output: 4~20mA / DC 2-wire loop powered technique / CABLE CONNECTION / M12 Connection / RESPONSE TIME(10~90%) / ≤ 2 seconds | Surface Roughness Of Wetted Part: Ra ≤ 0.64㎛ / Ra ≤ 0.64㎛ with E.P(Special)
Temperature TransmittersWISE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE Temperature Transmitters

Brand WISE·Temperature Transmitters

Available part numbers (4)

SMT3000, WTT-3100, WTT-3200, BTT3000

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
WISE Temperature TransmittersWISE Temperature Transmitters
0 selected
RFQ List (0)
Product codeSpec
SMT3000Product: Temperature Transmitter | Working Temperature: Ambient: -40~65°C | Power Supply: 10 ~ 42VDC | Input: Thermocouple: K, J, T, N, E, B, R, S / RTD: Pt 100 Ω at 0°C | Sheath Material: Thermocouple: 316L SS, Inconel 600, 310SS, 446SS, / 347SS, 321SS / RTD: 316L SS | Output: 4~20mA with HART Protocol
WTT-3100Product: Temperature Transmitter | Working Temperature: -40~85°C | Input: Thermocouple: K, E, N, T, J, B, R, S / RTD: Pt 100Ω at 0°C | Output: 4~20 mA with HART Protocol
WTT-3200Product: Temperature Transmitter | Working Temperature: -40~85°C | Input: Thermocouple: K, E, N, T, J, B, R, S / RTD: Pt 100Ω at 0°C | Output: 4~20 mA with HART Protocol
BTT3000Product: Slim Type Temperature Transmitter (3-A Marking) | Process Connection: G 3/8”(F)(With well type) | Material: 316L SS | Working Temperature: Ambient: -40 to 85°C / Process: -50 to 200°C(With well type) | Power Supply: DC 10~30V | Input: RTD: Pt100Ω at 0°C(A Class) / RTD: Pt100Ω at 0°C(B Class) | Output: 4~20mA / DC 2-wire loop powered technique / CABLE CONNECTION / M12 Connection / RESPONSE TIME(10~90%) / ≤ 2 seconds | Surface Roughness Of Wetted Part: Ra ≤ 0.64㎛ / Ra ≤ 0.64㎛ with E.P(Special)

Need a different model, or a part not listed here? Send us your parts list →
