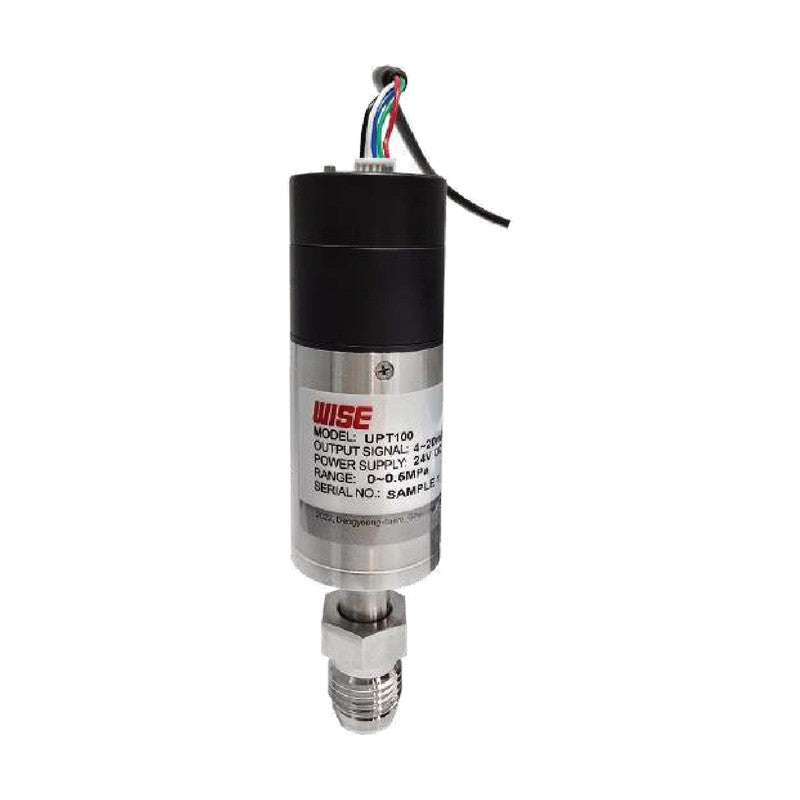

WISE UHP Pressure Transmitters
WISE UHP Pressure Transmitters
Ultra-high-purity pressure transmitters with Hastelloy C22 MEMS sensors and face-seal or surface-mount connections for semiconductor process gas lines, including hazardous-area versions.
Specifications
| Industries (catalogs) | Semiconductor |
|---|
| UPT100 | Product: UHP Pressure Transmitter with Display Indicating Type | Technology: MEMS Piezoresistive effect sensor | Accuracy: Analog output: ±0.5% of full span / Display: ±0.5% of full span +1 digit | Range: -0.1~0, 0~1MPa | Display: 7-Segment LED, 4-digit, 270°rotatable | Working Temperature: 80°C | Pressure Connection: Type 316L Stainless steel Electropolished surface / finish Ra ≤ 0.13㎛ / ·1.125” W or C Seal | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power, 0~5V, 1~5V, 0~10V | |
| UPT200 | Product: UHP Pressure Transmitter with Display Indicating Type | Technology: MEMS Piezoresistive effect sensor | Accuracy: Analog output: ±0.5% of full span / Display: ±0.5% of full span +1 digit | Range: -0.1~0, 0~1MPa | Display: 7-Segment LED, 4-digit, 270°rotatable | Working Temperature: 80°C | Pressure Connection: Type 316L Stainless steel Electropolished surface finish / Ra ≤ 0.13㎛ / ·1.125” W or C Seal | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power, 0~5V, 1~5V, 0~10V | |
| UPT300 | Product: UHP High Performance Pressure Transmitter | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power, 1~5V, 0~10V | Sensor Material Wetted By Process: Hastelloy C22 or 316L with electropolished wetted / surface | Explosion Protection: Ex ia, nA, e | |
| UPT400 | Product: UHP High Performance Pressure Transmitter | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power, 1~5V, 0~10V | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surfcae | |
| UPT700 | Product: UHP Hybrid Thermo-Pressure Sensor | Input Power: 12~24VDC | Output Signal: Pressure: 4~20mA DC 2-wire loop power / Temperature: Pt100, 3-wire, Resistance Output | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | |
| PT850 | Product: UHP Pressure Transmitter (Flameproof Enclosure) | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | Explosion Protection: Ex db IIC T6 Gb | |
| UPT852 | Product: UHP Pressure Transmitter (Non-incendive Equipment) | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | Explosion Protection: Class I, Division 2, Group A, B, C, D; T6...T4 / Ex nA IIC T6...T4 | |
| UPT853 | Product: UHP Pressure Transmitter | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | |
| PT860 | Product: UHP Pressure Transmitter (Flameproof Enclosure) | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | Explosion Protection: Ex db IIC T6 Gb | |
| UPT861 | Product: UHP Pressure Transmitter (Intrinsic Safety) | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | Explosion Protection: Ex ia IIC T4 Ga | |
| UPT862 | Product: UHP Pressure Transmitter (Non-Incendive / Increased Safetyequipment) | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | Explosion Protection: Class I, Division 2, Group A, B, C, D; T6...T4 / Ex ec IIC T6...T4 | Ex nA IIC T6...T4 | |
| UPT863 | Product: UHP Pressure Transmitter | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface |
Pressure TransmittersWISE
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
WISE UHP Pressure Transmitters
Available part numbers (12)
UPT100, UPT200, UPT300, UPT400, UPT700, PT850, UPT852, UPT853, PT860, UPT861 + 2 more — see full table ↓
How to order
Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
WISE
Pressure Transmitters
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| UPT100 | Product: UHP Pressure Transmitter with Display Indicating Type | Technology: MEMS Piezoresistive effect sensor | Accuracy: Analog output: ±0.5% of full span / Display: ±0.5% of full span +1 digit | Range: -0.1~0, 0~1MPa | Display: 7-Segment LED, 4-digit, 270°rotatable | Working Temperature: 80°C | Pressure Connection: Type 316L Stainless steel Electropolished surface / finish Ra ≤ 0.13㎛ / ·1.125” W or C Seal | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power, 0~5V, 1~5V, 0~10V | ||
| UPT200 | Product: UHP Pressure Transmitter with Display Indicating Type | Technology: MEMS Piezoresistive effect sensor | Accuracy: Analog output: ±0.5% of full span / Display: ±0.5% of full span +1 digit | Range: -0.1~0, 0~1MPa | Display: 7-Segment LED, 4-digit, 270°rotatable | Working Temperature: 80°C | Pressure Connection: Type 316L Stainless steel Electropolished surface finish / Ra ≤ 0.13㎛ / ·1.125” W or C Seal | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power, 0~5V, 1~5V, 0~10V | ||
| UPT300 | Product: UHP High Performance Pressure Transmitter | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power, 1~5V, 0~10V | Sensor Material Wetted By Process: Hastelloy C22 or 316L with electropolished wetted / surface | Explosion Protection: Ex ia, nA, e | ||
| UPT400 | Product: UHP High Performance Pressure Transmitter | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power, 1~5V, 0~10V | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surfcae | ||
| UPT700 | Product: UHP Hybrid Thermo-Pressure Sensor | Input Power: 12~24VDC | Output Signal: Pressure: 4~20mA DC 2-wire loop power / Temperature: Pt100, 3-wire, Resistance Output | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | ||
| PT850 | Product: UHP Pressure Transmitter (Flameproof Enclosure) | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | Explosion Protection: Ex db IIC T6 Gb | ||
| UPT852 | Product: UHP Pressure Transmitter (Non-incendive Equipment) | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | Explosion Protection: Class I, Division 2, Group A, B, C, D; T6...T4 / Ex nA IIC T6...T4 | ||
| UPT853 | Product: UHP Pressure Transmitter | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | ||
| PT860 | Product: UHP Pressure Transmitter (Flameproof Enclosure) | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | Explosion Protection: Ex db IIC T6 Gb | ||
| UPT861 | Product: UHP Pressure Transmitter (Intrinsic Safety) | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | Explosion Protection: Ex ia IIC T4 Ga | ||
| UPT862 | Product: UHP Pressure Transmitter (Non-Incendive / Increased Safetyequipment) | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface | Explosion Protection: Class I, Division 2, Group A, B, C, D; T6...T4 / Ex ec IIC T6...T4 | Ex nA IIC T6...T4 | ||
| UPT863 | Product: UHP Pressure Transmitter | Input Power: 12~24VDC | Output Signal: 4~20mA DC 2-wire loop power | Sensor Material Wetted By Process: Hastelloy C22 with electropolished wetted surface |
Need a different model, or a part not listed here? Send us your parts list →
