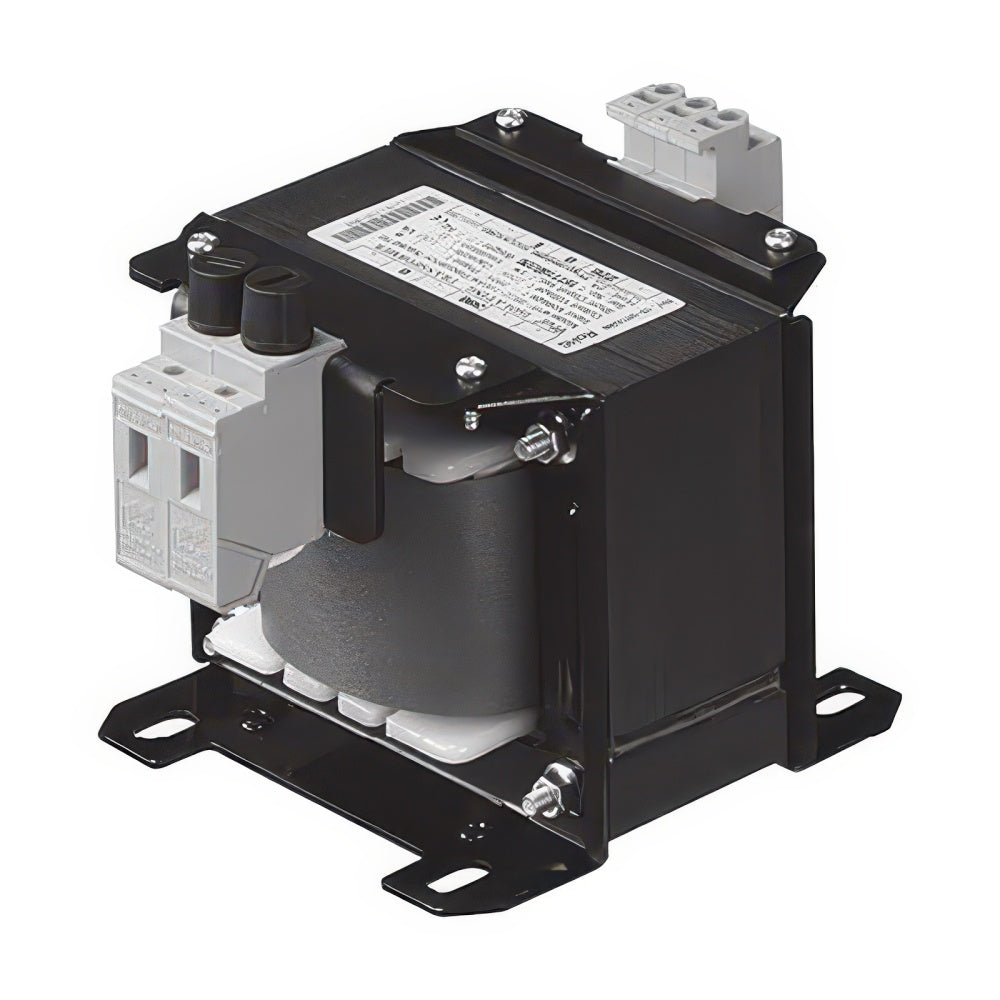

Woonyoung WYF32 Series Fuse-Type Control Transformer, 380 V to 220 V

Woonyoung WYF32 Series Fuse-Type Control Transformer, 380 V to 220 V

Single-phase isolating control transformer with built-in ceramic fuses, converting 380 V to 220 V from 40 VA to 1 kVA.

Key features

  • Single-phase multi-winding transformer fitted with ceramic fuses on the secondary side
  • Fuses protect the transformer against load short circuits and overloads
  • Helps prevent equipment safety accidents in advance
  • Fuse terminal type with earth (E) terminal on the secondary
  • Standard ratings from 40 VA to 1 kVA
  • CE marked

Specifications

Phase Single phase
Type Fuse terminal
Primary voltage 0-380 V
Secondary voltage 0-220 V (E)
Protection Ceramic fuses on secondary
Capacity range 40 VA - 1 kVA
Certifications CE
Other specifications Available on request
WYF32-40AW Capacity: 40 VA | Primary voltage: 0-380 V | Secondary voltage: 0-220 V (E) | Dimensions W x H x D: 77.6 x 85.2 x 87.0 mm | Dimensions a / b / c / d: 42.0 / 57.0 / 54.0 / 67.0 mm | Weight: 1.31 kg
WYF32-60AW Capacity: 60 VA | Primary voltage: 0-380 V | Secondary voltage: 0-220 V (E) | Dimensions W x H x D: 77.6 x 85.2 x 87.0 mm | Dimensions a / b / c / d: 42.0 / 57.0 / 54.0 / 67.0 mm | Weight: 1.65 kg
WYF32-100AW Capacity: 100 VA | Primary voltage: 0-380 V | Secondary voltage: 0-220 V (E) | Dimensions W x H x D: 98.4 x 85.2 x 87.0 mm | Dimensions a / b / c / d: 53.8 / 72.0 / 62.0 / 85.0 mm | Weight: 2.59 kg
WYF32-150AW Capacity: 150 VA | Primary voltage: 0-380 V | Secondary voltage: 0-220 V (E) | Dimensions W x H x D: 98.4 x 85.2 x 87.0 mm | Dimensions a / b / c / d: 53.8 / 72.0 / 62.0 / 85.0 mm | Weight: 3.23 kg
WYF32-200AW Capacity: 200 VA | Primary voltage: 0-380 V | Secondary voltage: 0-220 V (E) | Dimensions W x H x D: 110.2 x 109.2 x 104.2 mm | Dimensions a / b / c / d: 57.9 / 76.5 / 65.4 / 87.2 mm | Weight: 3.60 kg
WYF32-300AW Capacity: 300 VA | Primary voltage: 0-380 V | Secondary voltage: 0-220 V (E) | Dimensions W x H x D: 110.2 x 109.2 x 104.2 mm | Dimensions a / b / c / d: 57.9 / 76.5 / 65.4 / 87.2 mm | Weight: 4.97 kg
WYF32-500AW Capacity: 500 VA | Primary voltage: 0-380 V | Secondary voltage: 0-220 V (E) | Dimensions W x H x D: 140.0 x 132.9 x 128.4 mm | Dimensions a / b / c / d: 83.0 / 97.9 / 82.4 / 108.2 mm | Weight: 7.10 kg
WYF32-750AW Capacity: 750 VA | Primary voltage: 0-380 V | Secondary voltage: 0-220 V (E) | Dimensions W x H x D: 160.2 x 149.4 x 146.2 mm | Dimensions a / b / c / d: 95.9 / 114.0 / 92.4 / 124.2 mm | Weight: 10.70 kg
WYF32-1KAW Capacity: 1 kVA | Primary voltage: 0-380 V | Secondary voltage: 0-220 V (E) | Dimensions W x H x D: 160.2 x 152.0 x 156.2 mm | Dimensions a / b / c / d: 95.9 / 114.0 / 102.4 / 134.2 mm | Weight: 12.30 kg
Control TransformersWoonyoung
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYF32 Series Fuse-Type Control Transformer, 380 V to 220 V

Brand Woonyoung·Control Transformers

Available part numbers (9)

WYF32-40AW, WYF32-60AW, WYF32-100AW, WYF32-150AW, WYF32-200AW, WYF32-300AW, WYF32-500AW, WYF32-750AW, WYF32-1KAW

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
