YASKAWA R1000 Power Coordinating Reactor

YASKAWA R1000 Power Coordinating Reactor

Power coordinating reactor that is a required standard configuration device for the R1000 power regenerative unit, connected between the power supply and the drive/R1000.

Key features

  • Select according to the R1000 model (and motor capacity)
  • Wire the drive AC input from the reactor secondary side; wire the R1000 voltage-detection terminals from the primary side

Specifications

Use Standard configuration device for R1000 (required)

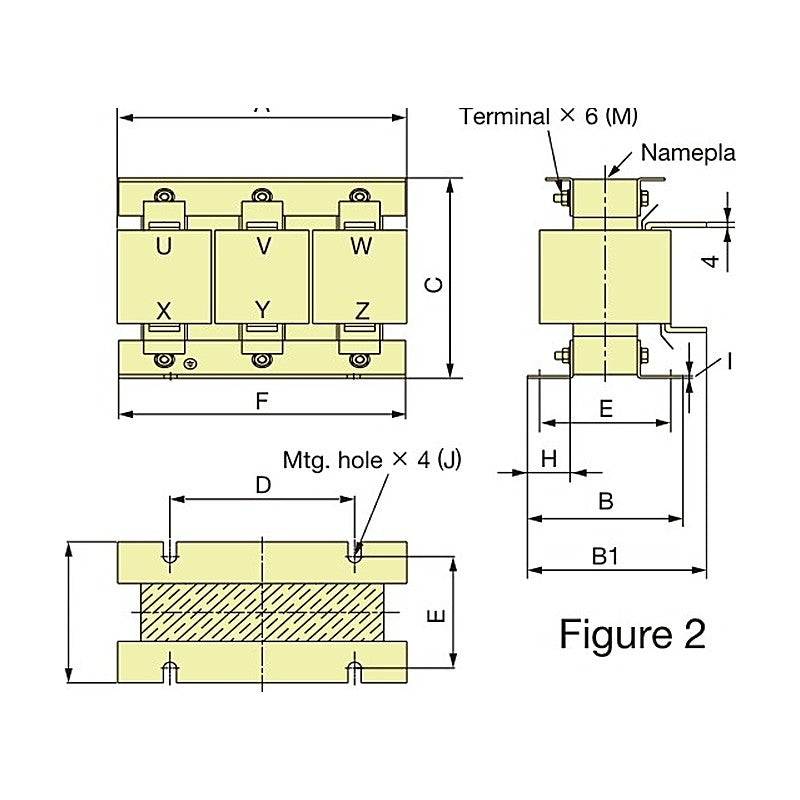

Terminals U, V, W inputs / X, Y, Z outputs
100-133-584 For R1000 model: CIMR-RA2A03P5 | Voltage class: 200 V | Rated current: 20 A | Inductance: 0.53 mH | Weight: 3.5 kg
100-133-585 For R1000 model: CIMR-RA2A0005 | Voltage class: 200 V | Rated current: 30 A | Inductance: 0.35 mH | Weight: 4.5 kg
100-133-586 For R1000 model: CIMR-RA2A0007 | Voltage class: 200 V | Rated current: 40 A | Inductance: 0.265 mH | Weight: 4.8 kg
100-133-587 For R1000 model: CIMR-RA2A0010 | Voltage class: 200 V | Rated current: 60 A | Inductance: 0.18 mH | Weight: 7 kg
100-133-588 For R1000 model: CIMR-RA2A0014 | Voltage class: 200 V | Rated current: 80 A | Inductance: 0.13 mH | Weight: 8 kg
100-133-589 For R1000 model: CIMR-RA2A0017 | Voltage class: 200 V | Rated current: 90 A | Inductance: 0.12 mH | Weight: 8.5 kg
100-133-590 For R1000 model: CIMR-RA2A0020 | Voltage class: 200 V | Rated current: 120 A | Inductance: 0.09 mH | Weight: 9 kg
100-133-591 For R1000 model: CIMR-RA2A0028 | Voltage class: 200 V | Rated current: 160 A | Inductance: 0.07 mH | Weight: 12 kg
100-133-592 For R1000 model: CIMR-RA2A0035 | Voltage class: 200 V | Rated current: 200 A | Inductance: 0.05 mH | Weight: 16 kg
100-107-364 For R1000 model: CIMR-RA2A0053 | Voltage class: 200 V | Rated current: 280 A | Inductance: 0.038 mH | Weight: 18 kg
100-107-365 For R1000 model: CIMR-RA2A0073 | Voltage class: 200 V | Rated current: 360 A | Inductance: 0.026 mH | Weight: 26 kg
100-107-366 For R1000 model: CIMR-RA2A0105 | Voltage class: 200 V | Rated current: 500 A | Inductance: 0.02 mH | Weight: 28 kg
100-107-367 For R1000 model: CIMR-RA4A03P5 | Voltage class: 400 V | Rated current: 10 A | Inductance: 2.2 mH | Weight: 3.5 kg
100-107-368 For R1000 model: CIMR-RA4A0005 | Voltage class: 400 V | Rated current: 15 A | Inductance: 1.42 mH | Weight: 4.5 kg
100-107-369 For R1000 model: CIMR-RA4A0007 | Voltage class: 400 V | Rated current: 20 A | Inductance: 1.06 mH | Weight: 6.2 kg
100-107-370 For R1000 model: CIMR-RA4A0010 | Voltage class: 400 V | Rated current: 30 A | Inductance: 0.7 mH | Weight: 7 kg
100-107-371 For R1000 model: CIMR-RA4A0014 | Voltage class: 400 V | Rated current: 40 A | Inductance: 0.53 mH | Weight: 9 kg
100-107-372 For R1000 model: CIMR-RA4A0017 | Voltage class: 400 V | Rated current: 50 A | Inductance: 0.42 mH | Weight: 9.5 kg
100-107-373 For R1000 model: CIMR-RA4A0020 | Voltage class: 400 V | Rated current: 60 A | Inductance: 0.36 mH | Weight: 9.5 kg
100-107-374 For R1000 model: CIMR-RA4A0028 | Voltage class: 400 V | Rated current: 80 A | Inductance: 0.26 mH | Weight: 13 kg
100-107-375 For R1000 model: CIMR-RA4A0035 | Voltage class: 400 V | Rated current: 90 A | Inductance: 0.24 mH | Weight: 18 kg
100-107-376 For R1000 model: CIMR-RA4A0043 | Voltage class: 400 V | Rated current: 120 A | Inductance: 0.18 mH | Weight: 23 kg
100-107-377 For R1000 model: CIMR-RA4A0053 | Voltage class: 400 V | Rated current: 150 A | Inductance: 0.15 mH | Weight: 25 kg
100-107-378 For R1000 model: CIMR-RA4A0073 | Voltage class: 400 V | Rated current: 200 A | Inductance: 0.11 mH | Weight: 34 kg
100-107-379 For R1000 model: CIMR-RA4A0105 | Voltage class: 400 V | Rated current: 250 A | Inductance: 0.09 mH | Weight: 35 kg
100-107-380 For R1000 model: CIMR-RA4A0150 | Voltage class: 400 V | Rated current: 330 A | Inductance: 0.06 mH | Weight: 45 kg
100-107-381 For R1000 model: CIMR-RA4A0210 | Voltage class: 400 V | Rated current: 490 A | Inductance: 0.04 mH | Weight: 55 kg
100-107-382 For R1000 model: CIMR-RA4A0300 | Voltage class: 400 V | Rated current: 660 A | Inductance: 0.03 mH | Weight: 73 kg
