• YONGSU YSTM-13 Tapping Drilling Machine
1 1

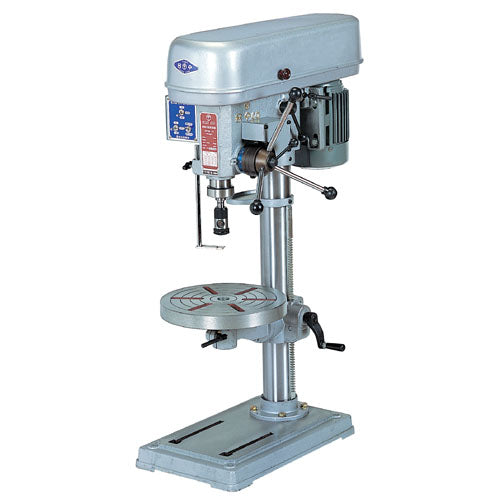

YONGSU YSTM-13 Tapping Drilling Machine

YONGSU YSTM-13 Tapping Drilling Machine

The YONGSU YSTM-13 Tapping Drilling Machine is a combined tapping and drilling unit designed for precision thread-forming and hole-making operations, sourced direct from Korea.

Key features

  • Machines of this type are commonly used in metalworking shops, fabrication facilities, and production lines where consistent, repeatable tapping cycles are required across a range of workpiece materials

Specifications

Voltage Three-phase 380
543-0446 MPN: YSTM-13 | YSTM-13 (Three-Phase 380V) | Height: 1/100 | Weight: 80.0 | Tapping Capacity: 10 | Drilling Capacity: 13 | Chuck Size: MT2 | Voltage: Three-phase 380 | Motor: 0.4 | V-Belt: A29/A30x1 pcs
543-0455 MPN: YSTM-19 | YSTM-19 (3-phase 380V) | Height: 1/230 | Weight: 85.0 | Tapping Capacity: 14 | Drilling Capacity: 19 | Chuck Size: MT2 | Voltage: Three-phase 380 | Motor: 0.4 | V-Belt: A29/A30x1 pcs
543-0464 MPN: YSTM-32 | YSTM-32 (Three-phase 380V) | Height: 1/540 | Weight: 200.0 | Tapping Capacity: 18 | Drilling Capacity: 32 | Chuck Size: MT3 | Voltage: Three-phase 380 | Motor: 0.75 | V-Belt: B31/B36x1 pcs
Machine ToolsYONGSU
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YONGSU YSTM-13 Tapping Drilling Machine

Brand YONGSU·Machine Tools

Available part numbers (3)

543-0446, 543-0455, 543-0464

How to order

Send the YONGSU part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
543-0446MPN: YSTM-13 | YSTM-13 (Three-Phase 380V) | Height: 1/100 | Weight: 80.0 | Tapping Capacity: 10 | Drilling Capacity: 13 | Chuck Size: MT2 | Voltage: Three-phase 380 | Motor: 0.4 | V-Belt: A29/A30x1 pcs
543-0455MPN: YSTM-19 | YSTM-19 (3-phase 380V) | Height: 1/230 | Weight: 85.0 | Tapping Capacity: 14 | Drilling Capacity: 19 | Chuck Size: MT2 | Voltage: Three-phase 380 | Motor: 0.4 | V-Belt: A29/A30x1 pcs
543-0464MPN: YSTM-32 | YSTM-32 (Three-phase 380V) | Height: 1/540 | Weight: 200.0 | Tapping Capacity: 18 | Drilling Capacity: 32 | Chuck Size: MT3 | Voltage: Three-phase 380 | Motor: 0.75 | V-Belt: B31/B36x1 pcs

Need a different model, or a part not listed here? Send us your parts list →
