Photoelectric
Autonics

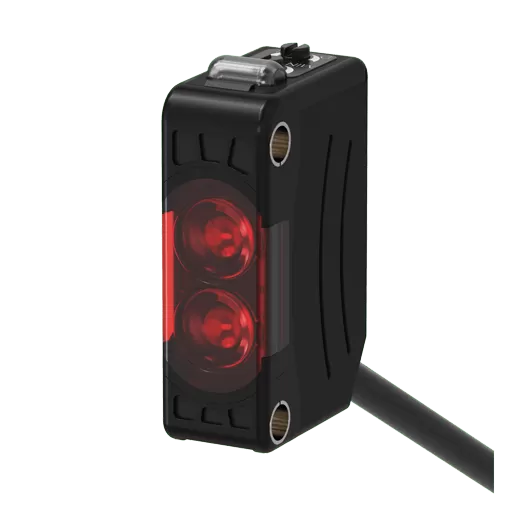

[AUTONICS] BJ Series Rectangular Photoelectric Sensors
Family ID: AUTONICS-BJ-SERIES
Compact rectangular photoelectric sensors W 10.6 x H 32 x L 20 mm with through-beam, polarized retroreflective, BGS reflective, narrow-beam reflective, and diffuse reflective sensing types. Light/Dark ON adjuster, sensitivity adjuster, mutual interference prevention. IP65 rated. Cable and M8 connector type variants.
46 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-BJ7M-TDT-1 | — | AUTONICS | Photoelectric sensor | BJ Series | Through-beam | 7 m | NPN open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ7M-TDT-2 | — | AUTONICS | Photoelectric sensor | BJ Series | Through-beam | 7 m | PNP open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ7M-TDT-C1 | — | AUTONICS | Photoelectric sensor | BJ Series | Through-beam | 7 m | NPN open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ7M-TDT-C2 | — | AUTONICS | Photoelectric sensor | BJ Series | Through-beam | 7 m | PNP open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ10M-TDT-1 | — | AUTONICS | Photoelectric sensor | BJ Series | Through-beam | 10 m | NPN open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ10M-TDT-2 | — | AUTONICS | Photoelectric sensor | BJ Series | Through-beam | 10 m | PNP open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ10M-TDT-C1 | — | AUTONICS | Photoelectric sensor | BJ Series | Through-beam | 10 m | NPN open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ10M-TDT-C2 | — | AUTONICS | Photoelectric sensor | BJ Series | Through-beam | 10 m | PNP open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ15M-TDT-1 | — | AUTONICS | Photoelectric sensor | BJ Series | Through-beam | 15 m | NPN open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ15M-TDT-2 | — | AUTONICS | Photoelectric sensor | BJ Series | Through-beam | 15 m | PNP open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ15M-TDT-C1 | — | AUTONICS | Photoelectric sensor | BJ Series | Through-beam | 15 m | NPN open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ15M-TDT-C2 | — | AUTONICS | Photoelectric sensor | BJ Series | Through-beam | 15 m | PNP open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ3M-PDT-1 | — | AUTONICS | Photoelectric sensor | BJ Series | Polarized retroreflective | 3 m | NPN open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ3M-PDT-2 | — | AUTONICS | Photoelectric sensor | BJ Series | Polarized retroreflective | 3 m | PNP open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ3M-PDT-C1 | — | AUTONICS | Photoelectric sensor | BJ Series | Polarized retroreflective | 3 m | NPN open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ3M-PDT-C2 | — | AUTONICS | Photoelectric sensor | BJ Series | Polarized retroreflective | 3 m | PNP open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ30-BDT-1 | — | AUTONICS | Photoelectric sensor | BJ Series | BGS reflective | 10-30 mm | NPN open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ30-BDT-2 | — | AUTONICS | Photoelectric sensor | BJ Series | BGS reflective | 10-30 mm | PNP open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ30-BDT-C1 | — | AUTONICS | Photoelectric sensor | BJ Series | BGS reflective | 10-30 mm | NPN open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ30-BDT-C2 | — | AUTONICS | Photoelectric sensor | BJ Series | BGS reflective | 10-30 mm | PNP open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ50-BDT-1 | — | AUTONICS | Photoelectric sensor | BJ Series | BGS reflective | 10-50 mm | NPN open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ50-BDT-2 | — | AUTONICS | Photoelectric sensor | BJ Series | BGS reflective | 10-50 mm | PNP open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ50-BDT-C1 | — | AUTONICS | Photoelectric sensor | BJ Series | BGS reflective | 10-50 mm | NPN open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ50-BDT-C2 | — | AUTONICS | Photoelectric sensor | BJ Series | BGS reflective | 10-50 mm | PNP open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJN70-NDT-1 | — | AUTONICS | Photoelectric sensor | BJ Series | Narrow-beam reflective | 30-70 mm | NPN open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJN70-NDT-2 | — | AUTONICS | Photoelectric sensor | BJ Series | Narrow-beam reflective | 30-70 mm | PNP open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJN70-NDT-C1 | — | AUTONICS | Photoelectric sensor | BJ Series | Narrow-beam reflective | 30-70 mm | NPN open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJN70-NDT-C2 | — | AUTONICS | Photoelectric sensor | BJ Series | Narrow-beam reflective | 30-70 mm | PNP open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJN130-NDT-1 | — | AUTONICS | Photoelectric sensor | BJ Series | Narrow-beam reflective | 70-130 mm | NPN open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJN130-NDT-2 | — | AUTONICS | Photoelectric sensor | BJ Series | Narrow-beam reflective | 70-130 mm | PNP open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJN130-NDT-C1 | — | AUTONICS | Photoelectric sensor | BJ Series | Narrow-beam reflective | 70-130 mm | NPN open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJN130-NDT-C2 | — | AUTONICS | Photoelectric sensor | BJ Series | Narrow-beam reflective | 70-130 mm | PNP open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ100-DDT-1 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective | 100 mm | NPN open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ100-DDT-2 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective | 100 mm | PNP open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ100-DDT-C1 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective | 100 mm | NPN open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ100-DDT-C2 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective | 100 mm | PNP open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ300-DDT-1 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective | 300 mm | NPN open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ300-DDT-2 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective | 300 mm | PNP open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ300-DDT-C1 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective | 300 mm | NPN open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ300-DDT-C2 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective | 300 mm | PNP open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ1M-DDT-1 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective | 1 m | NPN open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ1M-DDT-2 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective | 1 m | PNP open collector | 12-24 VDC | Cable type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ1M-DDT-C1 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective | 1 m | NPN open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJ1M-DDT-C2 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective | 1 m | PNP open collector | 12-24 VDC | M8 connector type | IP65 | Light/Dark ON adjuster | ||
| AUTONICS-BJG30-DDT-1 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective transparent glass | 15/30 mm | NPN open collector | 12-24 VDC | Cable type | IP65 | for transparent glass | ||
| AUTONICS-BJG30-DDT-2 | — | AUTONICS | Photoelectric sensor | BJ Series | Diffuse reflective transparent glass | 15/30 mm | PNP open collector | 12-24 VDC | Cable type | IP65 | for transparent glass |
