Push Button Switch
Autonics

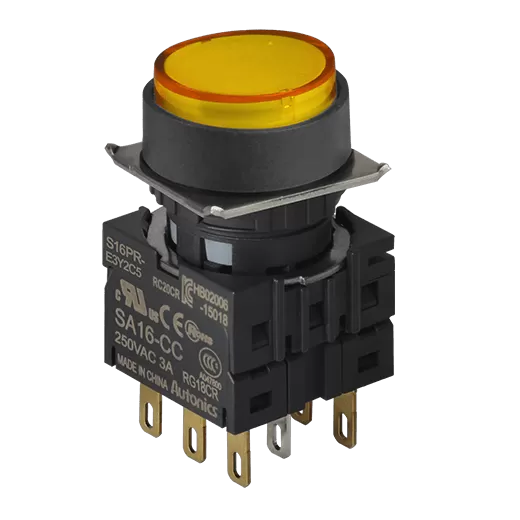

[AUTONICS] S16PR Series 16 mm Push Button Switches
Family ID: AUTONICS-S16PR-SERIES
Ø 16 mm push button switches with compact 29.5 mm rear length. Independent detachable contacts. Momentary and latching variants. 1 NO and 1 NO+1 NC contact configurations. Various cap colors with optional LED illumination (24 VDC, 110/220 VAC). 1 million mechanical operations. IP65 rated.
30 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-S16PR-MR1A | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary | 1 NO contact Red cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-MR1A1B | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary | 1 NO+1 NC contact Red cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-MR1A-L24 | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary LED | 1 NO contact Red cap | mechanical contact + 24 VDC LED | 250 VAC | Solder terminal | IP65 | illuminated 24 VDC | ||
| AUTONICS-S16PR-MG1A | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary | 1 NO contact Green cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-MG1A1B | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary | 1 NO+1 NC contact Green cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-MG1A-L24 | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary LED | 1 NO contact Green cap | mechanical contact + 24 VDC LED | 250 VAC | Solder terminal | IP65 | illuminated 24 VDC | ||
| AUTONICS-S16PR-MY1A | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary | 1 NO contact Yellow cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-MY1A1B | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary | 1 NO+1 NC contact Yellow cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-MY1A-L24 | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary LED | 1 NO contact Yellow cap | mechanical contact + 24 VDC LED | 250 VAC | Solder terminal | IP65 | illuminated 24 VDC | ||
| AUTONICS-S16PR-MB1A | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary | 1 NO contact Blue cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-MB1A1B | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary | 1 NO+1 NC contact Blue cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-MB1A-L24 | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary LED | 1 NO contact Blue cap | mechanical contact + 24 VDC LED | 250 VAC | Solder terminal | IP65 | illuminated 24 VDC | ||
| AUTONICS-S16PR-MW1A | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary | 1 NO contact White cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-MW1A1B | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary | 1 NO+1 NC contact White cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-MW1A-L24 | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button momentary LED | 1 NO contact White cap | mechanical contact + 24 VDC LED | 250 VAC | Solder terminal | IP65 | illuminated 24 VDC | ||
| AUTONICS-S16PR-AR1A | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching | 1 NO contact Red cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-AR1A1B | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching | 1 NO+1 NC contact Red cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-AR1A-L24 | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching LED | 1 NO contact Red cap | mechanical contact + 24 VDC LED | 250 VAC | Solder terminal | IP65 | illuminated 24 VDC | ||
| AUTONICS-S16PR-AG1A | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching | 1 NO contact Green cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-AG1A1B | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching | 1 NO+1 NC contact Green cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-AG1A-L24 | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching LED | 1 NO contact Green cap | mechanical contact + 24 VDC LED | 250 VAC | Solder terminal | IP65 | illuminated 24 VDC | ||
| AUTONICS-S16PR-AY1A | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching | 1 NO contact Yellow cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-AY1A1B | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching | 1 NO+1 NC contact Yellow cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-AY1A-L24 | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching LED | 1 NO contact Yellow cap | mechanical contact + 24 VDC LED | 250 VAC | Solder terminal | IP65 | illuminated 24 VDC | ||
| AUTONICS-S16PR-AB1A | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching | 1 NO contact Blue cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-AB1A1B | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching | 1 NO+1 NC contact Blue cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-AB1A-L24 | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching LED | 1 NO contact Blue cap | mechanical contact + 24 VDC LED | 250 VAC | Solder terminal | IP65 | illuminated 24 VDC | ||
| AUTONICS-S16PR-AW1A | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching | 1 NO contact White cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-AW1A1B | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching | 1 NO+1 NC contact White cap | mechanical contact | 250 VAC | Solder terminal | IP65 | non-illuminated | ||
| AUTONICS-S16PR-AW1A-L24 | — | AUTONICS | Push button switch | S16PR Series | Ø 16 mm push button latching LED | 1 NO contact White cap | mechanical contact + 24 VDC LED | 250 VAC | Solder terminal | IP65 | illuminated 24 VDC |
