Push Button Switch
Autonics

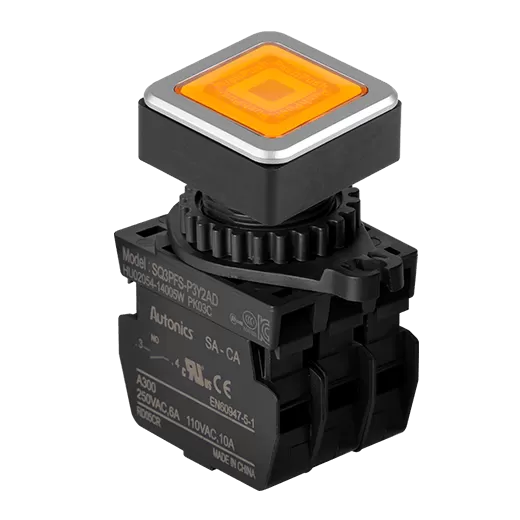

[AUTONICS] SQ3PF Series Square 30 mm Push Button Switches
Family ID: AUTONICS-SQ3PF-SERIES
□ 30 mm square push button switches. Modern square aesthetic for control panels. Momentary and latching. Non-illuminated and LED variants.
20 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-SQ3PF-MR1A1B | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square push button momentary | 1NO+1NC Red | mechanical contact | 250 VAC | Screw terminal | IP65 | square 30 mm momentary | ||
| AUTONICS-SQ3PF-MR1A1B-L24 | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square LED push button momentary | 1NO+1NC Red | mechanical + 24V LED | 250 VAC | Screw terminal | IP65 | square 30 mm illuminated | ||
| AUTONICS-SQ3PF-MG1A1B | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square push button momentary | 1NO+1NC Green | mechanical contact | 250 VAC | Screw terminal | IP65 | square 30 mm momentary | ||
| AUTONICS-SQ3PF-MG1A1B-L24 | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square LED push button momentary | 1NO+1NC Green | mechanical + 24V LED | 250 VAC | Screw terminal | IP65 | square 30 mm illuminated | ||
| AUTONICS-SQ3PF-MY1A1B | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square push button momentary | 1NO+1NC Yellow | mechanical contact | 250 VAC | Screw terminal | IP65 | square 30 mm momentary | ||
| AUTONICS-SQ3PF-MY1A1B-L24 | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square LED push button momentary | 1NO+1NC Yellow | mechanical + 24V LED | 250 VAC | Screw terminal | IP65 | square 30 mm illuminated | ||
| AUTONICS-SQ3PF-MB1A1B | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square push button momentary | 1NO+1NC Blue | mechanical contact | 250 VAC | Screw terminal | IP65 | square 30 mm momentary | ||
| AUTONICS-SQ3PF-MB1A1B-L24 | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square LED push button momentary | 1NO+1NC Blue | mechanical + 24V LED | 250 VAC | Screw terminal | IP65 | square 30 mm illuminated | ||
| AUTONICS-SQ3PF-MW1A1B | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square push button momentary | 1NO+1NC White | mechanical contact | 250 VAC | Screw terminal | IP65 | square 30 mm momentary | ||
| AUTONICS-SQ3PF-MW1A1B-L24 | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square LED push button momentary | 1NO+1NC White | mechanical + 24V LED | 250 VAC | Screw terminal | IP65 | square 30 mm illuminated | ||
| AUTONICS-SQ3PF-AR1A1B | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square push button latching | 1NO+1NC Red | mechanical contact | 250 VAC | Screw terminal | IP65 | square 30 mm latching | ||
| AUTONICS-SQ3PF-AR1A1B-L24 | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square LED push button latching | 1NO+1NC Red | mechanical + 24V LED | 250 VAC | Screw terminal | IP65 | square 30 mm illuminated | ||
| AUTONICS-SQ3PF-AG1A1B | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square push button latching | 1NO+1NC Green | mechanical contact | 250 VAC | Screw terminal | IP65 | square 30 mm latching | ||
| AUTONICS-SQ3PF-AG1A1B-L24 | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square LED push button latching | 1NO+1NC Green | mechanical + 24V LED | 250 VAC | Screw terminal | IP65 | square 30 mm illuminated | ||
| AUTONICS-SQ3PF-AY1A1B | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square push button latching | 1NO+1NC Yellow | mechanical contact | 250 VAC | Screw terminal | IP65 | square 30 mm latching | ||
| AUTONICS-SQ3PF-AY1A1B-L24 | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square LED push button latching | 1NO+1NC Yellow | mechanical + 24V LED | 250 VAC | Screw terminal | IP65 | square 30 mm illuminated | ||
| AUTONICS-SQ3PF-AB1A1B | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square push button latching | 1NO+1NC Blue | mechanical contact | 250 VAC | Screw terminal | IP65 | square 30 mm latching | ||
| AUTONICS-SQ3PF-AB1A1B-L24 | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square LED push button latching | 1NO+1NC Blue | mechanical + 24V LED | 250 VAC | Screw terminal | IP65 | square 30 mm illuminated | ||
| AUTONICS-SQ3PF-AW1A1B | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square push button latching | 1NO+1NC White | mechanical contact | 250 VAC | Screw terminal | IP65 | square 30 mm latching | ||
| AUTONICS-SQ3PF-AW1A1B-L24 | — | AUTONICS | Push button switch | SQ3PF Series | □ 30 mm square LED push button latching | 1NO+1NC White | mechanical + 24V LED | 250 VAC | Screw terminal | IP65 | square 30 mm illuminated |
