![[AUTONICS] SFDL2 Series Safety Flat Type Door Lock Switches](https://img.prosourcemro.com/2026/04/001-1334.png)
Door Switch
Autonics

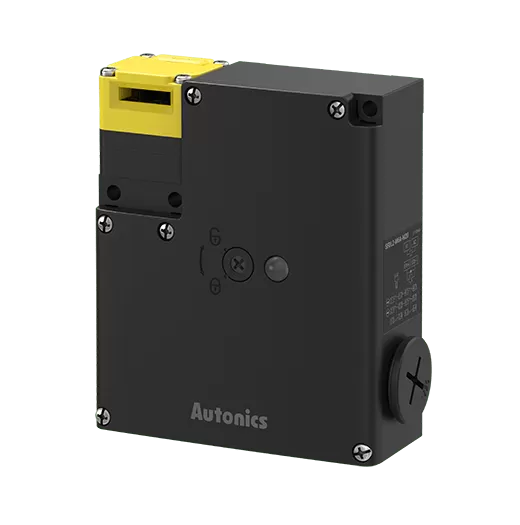

[AUTONICS] SFDL2 Series Safety Flat Type Door Lock Switches
Family ID: AUTONICS-SFDL2-SERIES
Safety flat-type door lock switches with slim profile for thin-mount applications. 4-contact configurations with terminal and connector type variants. Manual unlock function. Locking pullout strength similar to SFDL. Spring-to-unlock and power-to-unlock options. EN ISO 14119, GS-ET-15, UL 508 certified. IP67 rated.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-SFDL2-MAA-24 | — | AUTONICS | Safety flat door lock switch | SFDL2 Series | Flat type door lock | power-to-unlock 4-contact 24 VDC | Mechanical contact | 24 VDC solenoid | Terminal | IP67 | flat slim profile | ||
| AUTONICS-SFDL2-MAA-C24 | — | AUTONICS | Safety flat door lock switch | SFDL2 Series | Flat type door lock | power-to-unlock 4-contact 24 VDC | Mechanical contact | 24 VDC solenoid | M12 connector | IP67 | flat slim profile | ||
| AUTONICS-SFDL2-SAA-24 | — | AUTONICS | Safety flat door lock switch | SFDL2 Series | Flat type door lock | spring-to-unlock 4-contact 24 VDC | Mechanical contact | 24 VDC solenoid | Terminal | IP67 | flat slim profile | ||
| AUTONICS-SFDL2-SAA-C24 | — | AUTONICS | Safety flat door lock switch | SFDL2 Series | Flat type door lock | spring-to-unlock 4-contact 24 VDC | Mechanical contact | 24 VDC solenoid | M12 connector | IP67 | flat slim profile |
