Solid State Relay
Autonics

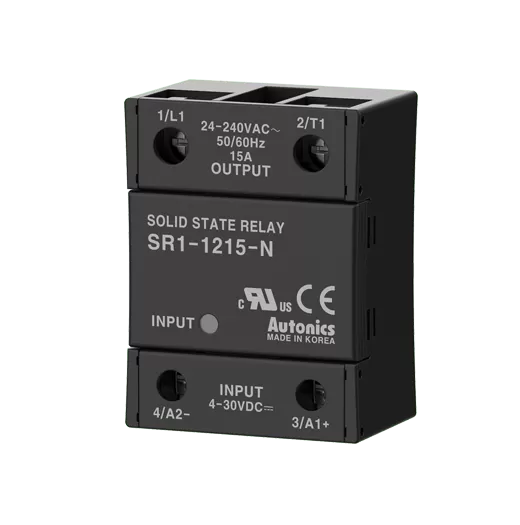

[AUTONICS] SR1 Series Single-Phase SSR with Detachable Heatsink
Family ID: AUTONICS-SR1-SERIES
Single-phase solid state relays with detachable heatsink. Heatsink can be replaced separately for maintenance. 20/40/60/90 A load current ratings. DC and AC control input variants. Suitable for higher-power applications than integrated-heatsink models.
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-SR1-2025D | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 20 A 240V load | 4-30 VDC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-2025A | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 20 A 240V load | 90-240 VAC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-2050D | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 20 A 480V load | 4-30 VDC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-2050A | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 20 A 480V load | 90-240 VAC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-4025D | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 40 A 240V load | 4-30 VDC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-4025A | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 40 A 240V load | 90-240 VAC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-4050D | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 40 A 480V load | 4-30 VDC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-4050A | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 40 A 480V load | 90-240 VAC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-6025D | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 60 A 240V load | 4-30 VDC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-6025A | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 60 A 240V load | 90-240 VAC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-6050D | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 60 A 480V load | 4-30 VDC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-6050A | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 60 A 480V load | 90-240 VAC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-9025D | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 90 A 240V load | 4-30 VDC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-9025A | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 90 A 240V load | 90-240 VAC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-9050D | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 90 A 480V load | 4-30 VDC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement | ||
| AUTONICS-SR1-9050A | — | AUTONICS | Solid state relay | SR1 Series | Single-phase detachable heatsink | 90 A 480V load | 90-240 VAC input | AC load | DIN-rail or panel | IP20 | detachable heatsink for replacement |
