![[AUTONICS] SR3 / SRH3 Series 3-Phase SSR with Detachable / Integrated Heatsink](https://img.prosourcemro.com/2026/04/001-1404.png)
Solid State Relay
Autonics

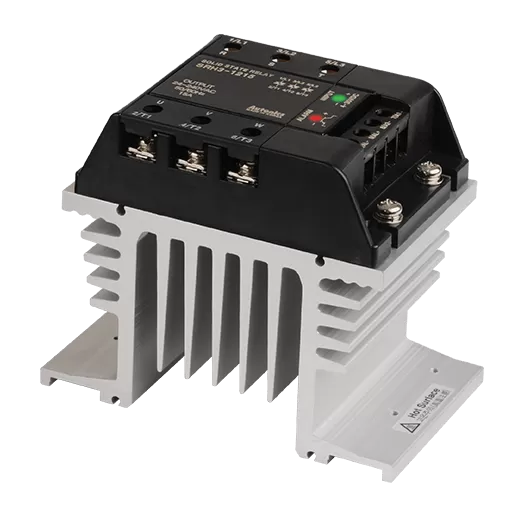

[AUTONICS] SR3 / SRH3 Series 3-Phase SSR with Detachable / Integrated Heatsink
Family ID: AUTONICS-SR3-SRH3-SERIES
Three-phase solid state relays for 3-phase load switching. SR3 (detachable heatsink) and SRH3 (integrated heatsink) variants. DC and AC control input options. For 3-phase motor and heater control applications.
20 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-SR3-2025D | — | AUTONICS | Solid state relay | SR3 Series | 3-phase SSR detachable heatsink | 20 A 240V load | 4-30 VDC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase detachable heatsink | ||
| AUTONICS-SRH3-2025D | — | AUTONICS | Solid state relay | SRH3 Series | 3-phase SSR integrated heatsink | 20 A 240V load | 4-30 VDC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase integrated heatsink | ||
| AUTONICS-SR3-2025A | — | AUTONICS | Solid state relay | SR3 Series | 3-phase SSR detachable heatsink | 20 A 240V load | 90-240 VAC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase detachable heatsink | ||
| AUTONICS-SRH3-2025A | — | AUTONICS | Solid state relay | SRH3 Series | 3-phase SSR integrated heatsink | 20 A 240V load | 90-240 VAC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase integrated heatsink | ||
| AUTONICS-SR3-4025D | — | AUTONICS | Solid state relay | SR3 Series | 3-phase SSR detachable heatsink | 40 A 240V load | 4-30 VDC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase detachable heatsink | ||
| AUTONICS-SRH3-4025D | — | AUTONICS | Solid state relay | SRH3 Series | 3-phase SSR integrated heatsink | 40 A 240V load | 4-30 VDC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase integrated heatsink | ||
| AUTONICS-SR3-4025A | — | AUTONICS | Solid state relay | SR3 Series | 3-phase SSR detachable heatsink | 40 A 240V load | 90-240 VAC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase detachable heatsink | ||
| AUTONICS-SRH3-4025A | — | AUTONICS | Solid state relay | SRH3 Series | 3-phase SSR integrated heatsink | 40 A 240V load | 90-240 VAC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase integrated heatsink | ||
| AUTONICS-SR3-4050D | — | AUTONICS | Solid state relay | SR3 Series | 3-phase SSR detachable heatsink | 40 A 480V load | 4-30 VDC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase detachable heatsink | ||
| AUTONICS-SRH3-4050D | — | AUTONICS | Solid state relay | SRH3 Series | 3-phase SSR integrated heatsink | 40 A 480V load | 4-30 VDC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase integrated heatsink | ||
| AUTONICS-SR3-4050A | — | AUTONICS | Solid state relay | SR3 Series | 3-phase SSR detachable heatsink | 40 A 480V load | 90-240 VAC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase detachable heatsink | ||
| AUTONICS-SRH3-4050A | — | AUTONICS | Solid state relay | SRH3 Series | 3-phase SSR integrated heatsink | 40 A 480V load | 90-240 VAC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase integrated heatsink | ||
| AUTONICS-SR3-6025D | — | AUTONICS | Solid state relay | SR3 Series | 3-phase SSR detachable heatsink | 60 A 240V load | 4-30 VDC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase detachable heatsink | ||
| AUTONICS-SRH3-6025D | — | AUTONICS | Solid state relay | SRH3 Series | 3-phase SSR integrated heatsink | 60 A 240V load | 4-30 VDC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase integrated heatsink | ||
| AUTONICS-SR3-6025A | — | AUTONICS | Solid state relay | SR3 Series | 3-phase SSR detachable heatsink | 60 A 240V load | 90-240 VAC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase detachable heatsink | ||
| AUTONICS-SRH3-6025A | — | AUTONICS | Solid state relay | SRH3 Series | 3-phase SSR integrated heatsink | 60 A 240V load | 90-240 VAC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase integrated heatsink | ||
| AUTONICS-SR3-6050D | — | AUTONICS | Solid state relay | SR3 Series | 3-phase SSR detachable heatsink | 60 A 480V load | 4-30 VDC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase detachable heatsink | ||
| AUTONICS-SRH3-6050D | — | AUTONICS | Solid state relay | SRH3 Series | 3-phase SSR integrated heatsink | 60 A 480V load | 4-30 VDC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase integrated heatsink | ||
| AUTONICS-SR3-6050A | — | AUTONICS | Solid state relay | SR3 Series | 3-phase SSR detachable heatsink | 60 A 480V load | 90-240 VAC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase detachable heatsink | ||
| AUTONICS-SRH3-6050A | — | AUTONICS | Solid state relay | SRH3 Series | 3-phase SSR integrated heatsink | 60 A 480V load | 90-240 VAC input | 3-phase AC load | DIN-rail or panel | IP20 | 3-phase integrated heatsink |
