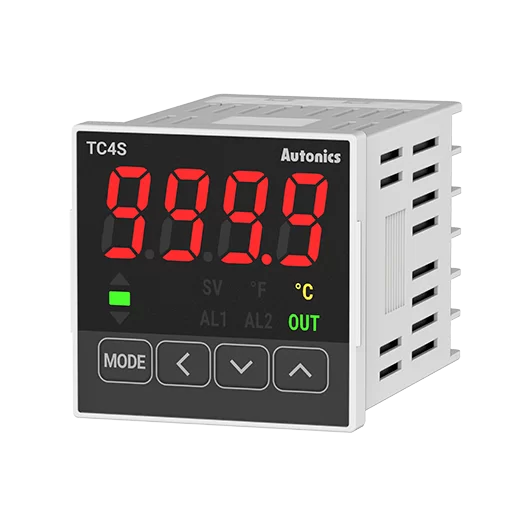

![[AUTONICS] TC Series Single Display PID Temperature Controllers](https://img.prosourcemro.com/2026/04/001-1397.png)
Temperature Controller
Autonics
[AUTONICS] TC Series Single Display PID Temperature Controllers
Family ID: AUTONICS-TC-SERIES
Single display PID temperature controllers. Cost-effective basic temperature control with auto-tuning PID. Universal input. Various sizes. Front-side parameter setting.
20 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-TC-4S-R | — | AUTONICS | Temperature controller | TC Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4S-S | — | AUTONICS | Temperature controller | TC Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4S-V | — | AUTONICS | Temperature controller | TC Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4S-C | — | AUTONICS | Temperature controller | TC Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4M-R | — | AUTONICS | Temperature controller | TC Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4M-S | — | AUTONICS | Temperature controller | TC Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4M-V | — | AUTONICS | Temperature controller | TC Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4M-C | — | AUTONICS | Temperature controller | TC Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4Y-R | — | AUTONICS | Temperature controller | TC Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4Y-S | — | AUTONICS | Temperature controller | TC Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4Y-V | — | AUTONICS | Temperature controller | TC Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4Y-C | — | AUTONICS | Temperature controller | TC Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4W-R | — | AUTONICS | Temperature controller | TC Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4W-S | — | AUTONICS | Temperature controller | TC Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4W-V | — | AUTONICS | Temperature controller | TC Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4W-C | — | AUTONICS | Temperature controller | TC Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4N-R | — | AUTONICS | Temperature controller | TC Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4N-S | — | AUTONICS | Temperature controller | TC Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4N-V | — | AUTONICS | Temperature controller | TC Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TC-4N-C | — | AUTONICS | Temperature controller | TC Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting |
