Temperature Controller
Omron

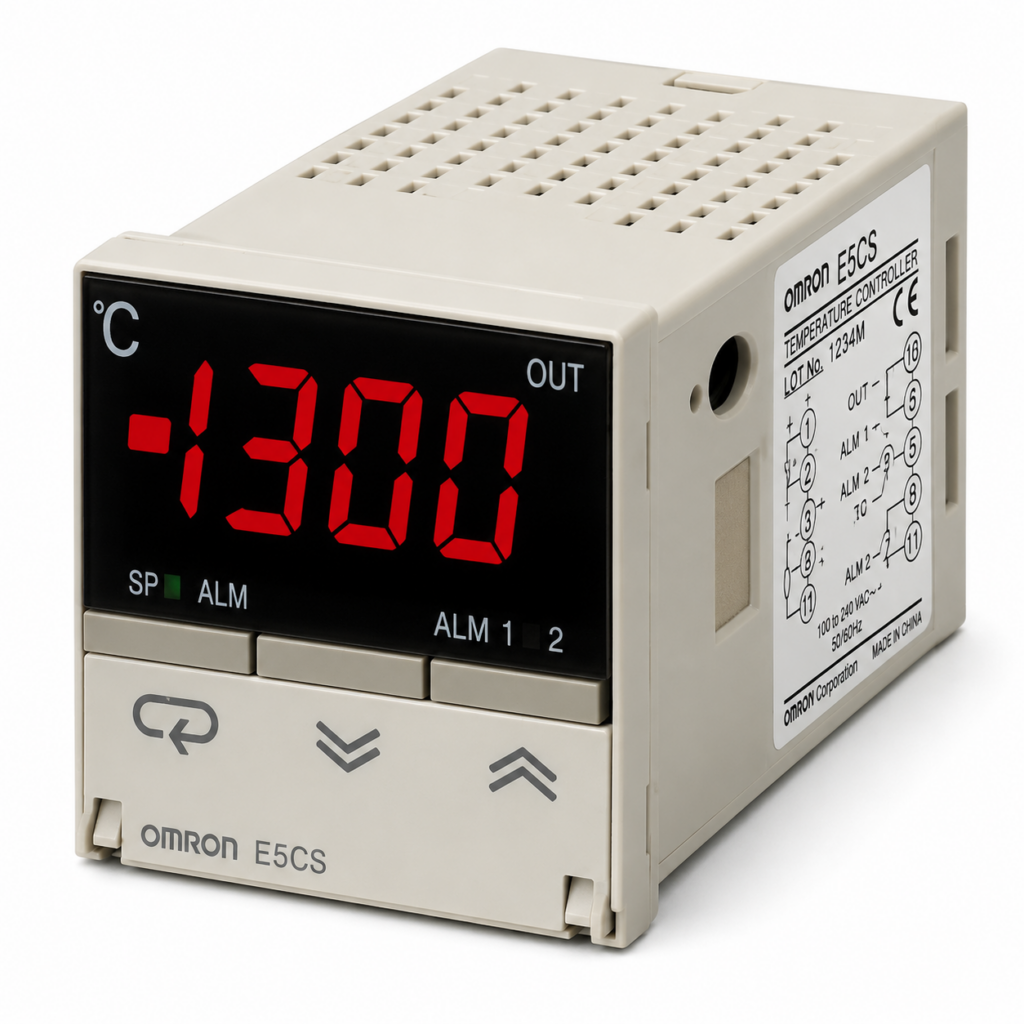

[OMRON] — E5CS Temperature Controller (48x48mm Plug-in, ON/OFF or PID, TC/RTD/Thermistor/Universal Input)
Family ID: OMRON-E5CS
Simple Functions in DIN 48x48mm-size Plug-in Temperature Controllers. ON/OFF or PID control modes. Thermocouple, Platinum resistance thermometer, Thermistor, and Universal input types. Relay and Voltage output (for driving SSR) variants. Light Gray case color.
26 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E5CS-RKJU-W | Relay, Thermocouple, 0 alarms, 100~240VAC | OMRON | Input: Thermocouple | Output: Relay | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-RPU-W | Relay, Platinum RTD, 0 alarms, 100~240VAC | OMRON | Input: Platinum Resistance Thermometer | Output: Relay | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-QKJU-W | Voltage (SSR), Thermocouple, 0 alarms, 100~240VAC | OMRON | Input: Thermocouple | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-QPU-W | Voltage (SSR), Platinum RTD, 0 alarms, 100~240VAC | OMRON | Input: Platinum Resistance Thermometer | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-R1KJU-W | Relay, Thermocouple, 1 alarm, 100~240VAC | OMRON | Input: Thermocouple | Output: Relay | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-R1PU-W | Relay, Platinum RTD, 1 alarm, 100~240VAC | OMRON | Input: Platinum Resistance Thermometer | Output: Relay | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-Q1KJU-W | Voltage (SSR), Thermocouple, 1 alarm, 100~240VAC | OMRON | Input: Thermocouple | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-Q1PU-W | Voltage (SSR), Platinum RTD, 1 alarm, 100~240VAC | OMRON | Input: Platinum Resistance Thermometer | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-RKJDU-W | Relay, Thermocouple, 0 alarms, 24VAC/VDC | OMRON | Input: Thermocouple | Output: Relay | Alarms: 0 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray | ||
| E5CS-RPDU-W | Relay, Platinum RTD, 0 alarms, 24VAC/VDC | OMRON | Input: Platinum Resistance Thermometer | Output: Relay | Alarms: 0 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray | ||
| E5CS-QKJDU-W | Voltage (SSR), Thermocouple, 0 alarms, 24VAC/VDC | OMRON | Input: Thermocouple | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray | ||
| E5CS-R1KJDU-W | Relay, Thermocouple, 1 alarm, 24VAC/VDC | OMRON | Input: Thermocouple | Output: Relay | Alarms: 1 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray | ||
| E5CS-R1PDU-W | Relay, Platinum RTD, 1 alarm, 24VAC/VDC | OMRON | Input: Platinum Resistance Thermometer | Output: Relay | Alarms: 1 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray | ||
| E5CS-Q1KJDU-W | Voltage (SSR), Thermocouple, 1 alarm, 24VAC/VDC | OMRON | Input: Thermocouple | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray | ||
| E5CS-RGU-W | Relay, Thermistor, 0 alarms, 100~240VAC | OMRON | Input: Thermistor | Output: Relay | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-RTU-W | Relay, Universal input, 0 alarms, 100~240VAC | OMRON | Input: Universal (TC and RTD) | Output: Relay | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-QGU-W | Voltage (SSR), Thermistor, 0 alarms, 100~240VAC | OMRON | Input: Thermistor | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-QTU-W | Voltage (SSR), Universal input, 0 alarms, 100~240VAC | OMRON | Input: Universal (TC and RTD) | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-R1GU-W | Relay, Thermistor, 1 alarm, 100~240VAC | OMRON | Input: Thermistor | Output: Relay | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-R1TU-W | Relay, Universal input, 1 alarm, 100~240VAC | OMRON | Input: Universal (TC and RTD) | Output: Relay | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-Q1GU-W | Voltage (SSR), Thermistor, 1 alarm, 100~240VAC | OMRON | Input: Thermistor | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-Q1TU-W | Voltage (SSR), Universal input, 1 alarm, 100~240VAC | OMRON | Input: Universal (TC and RTD) | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | ||
| E5CS-R2TU-W | Relay, Universal input, 2 alarms, 100~240VAC | OMRON | Input: Universal (TC and RTD) | Output: Relay | Alarms: 2 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | Note: Alarm 2 default = upper limit; changeable via initial setting level 5 | ||
| E5CS-Q2TU-W | Voltage (SSR), Universal input, 2 alarms, 100~240VAC | OMRON | Input: Universal (TC and RTD) | Output: Voltage (for driving SSR) | Alarms: 2 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | Note: Alarm 2 default = upper limit; changeable via initial setting level 5 | ||
| E5CS-RGDU-W | Relay, Thermistor, 0 alarms, 24VAC/VDC | OMRON | Input: Thermistor | Output: Relay | Alarms: 0 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray | ||
| E5CS-R1GDU-W | Relay, Thermistor, 1 alarm, 24VAC/VDC | OMRON | Input: Thermistor | Output: Relay | Alarms: 1 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray |
