Temperature Controller
Autonics

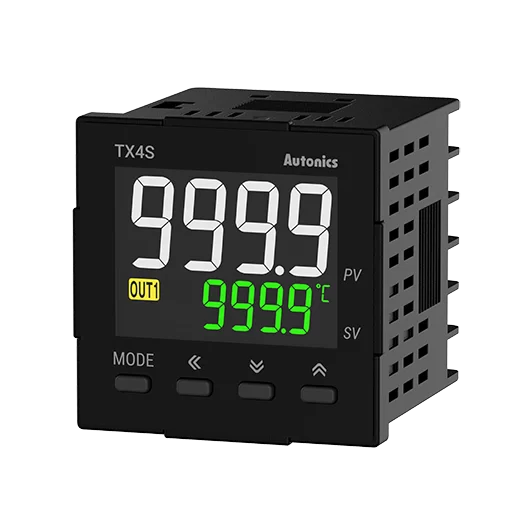

[AUTONICS] TX Series LCD PID Temperature Controllers
Family ID: AUTONICS-TX-SERIES
LCD display PID temperature controllers with high visibility and easy parameter setting. Universal input for RTD, thermocouple, and analog. Multi-output support (relay, SSR, current). Various sizes available (4S, 4M, 4Y, 4W). Front USB port for parameter copy. Modbus RTU communication. Heater break alarm, sensor break alarm, output limit functions.
32 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-TX-4S-R | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4S-R4 | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Relay + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4S-S | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4S-S4 | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4S-V | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4S-V4 | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4S-C | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4S-C4 | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Current 4-20 mA + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4M-R | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4M-R4 | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Relay + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4M-S | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4M-S4 | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4M-V | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4M-V4 | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4M-C | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4M-C4 | — | AUTONICS | Temperature controller | TX Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4Y-R | — | AUTONICS | Temperature controller | TX Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4Y-R4 | — | AUTONICS | Temperature controller | TX Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Relay + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4Y-S | — | AUTONICS | Temperature controller | TX Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4Y-S4 | — | AUTONICS | Temperature controller | TX Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4Y-V | — | AUTONICS | Temperature controller | TX Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4Y-V4 | — | AUTONICS | Temperature controller | TX Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4Y-C | — | AUTONICS | Temperature controller | TX Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4Y-C4 | — | AUTONICS | Temperature controller | TX Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Current 4-20 mA + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4W-R | — | AUTONICS | Temperature controller | TX Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4W-R4 | — | AUTONICS | Temperature controller | TX Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Relay + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4W-S | — | AUTONICS | Temperature controller | TX Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4W-S4 | — | AUTONICS | Temperature controller | TX Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4W-V | — | AUTONICS | Temperature controller | TX Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4W-V4 | — | AUTONICS | Temperature controller | TX Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TX-4W-C | — | AUTONICS | Temperature controller | TX Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TX-4W-C4 | — | AUTONICS | Temperature controller | TX Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs |
