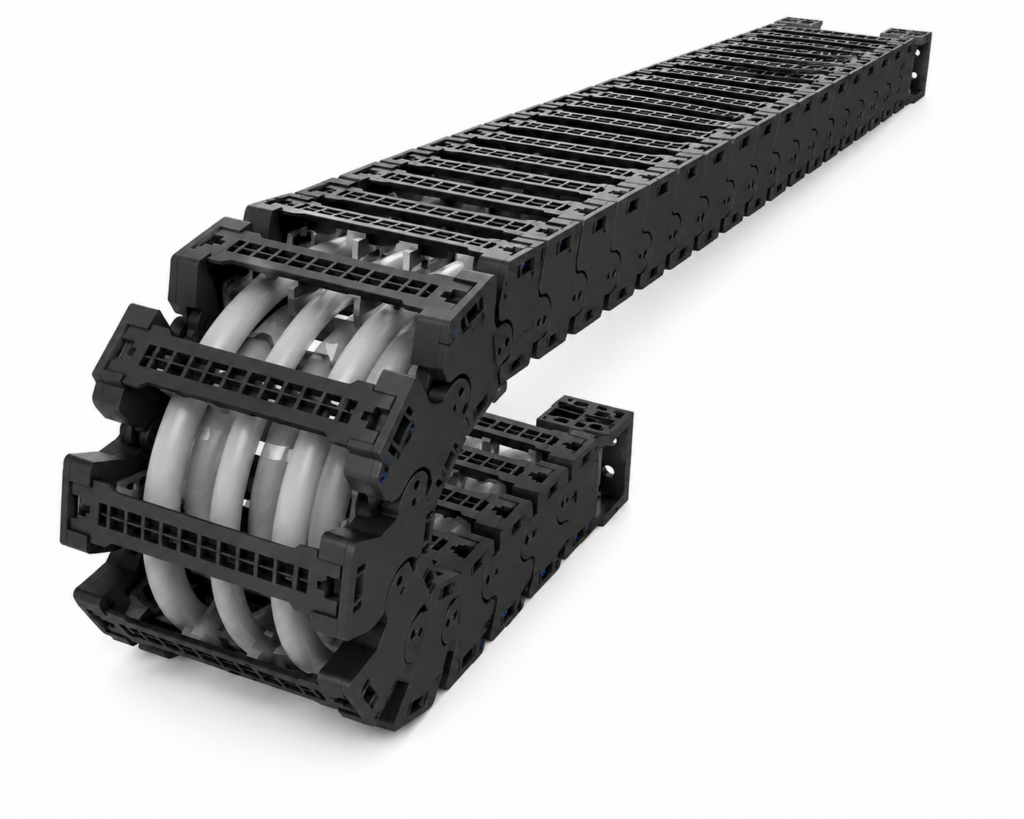

[CP SYSTEM] — nsb045CRG G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 75-200mm)
Cable Carriers CP SYSTEM

[CP SYSTEM] — nsb045CRG G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 75-200mm)

Family ID: CPS-NSB-045CRG

nsb G-Clean Chain - Clean Room Type with UHMW-PE material. Low Dust, Low Noise Cable Chain. IPA ISO Class 1 certified for Semiconductors, LCD and PDP production lines.

24 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
nsb045CRG.75.R75 nsb045CRG G-Clean Chain, inner width 75mm, bending radius R75mm CP SYSTEM Inner Width (C): 75mm | Outer Width (A): 105mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 75mm | Loop Length (Lp): 506mm | Moving Height (H): 243mm | Weight: 3.24 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.75.R100 nsb045CRG G-Clean Chain, inner width 75mm, bending radius R100mm CP SYSTEM Inner Width (C): 75mm | Outer Width (A): 105mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 100mm | Loop Length (Lp): 584mm | Moving Height (H): 293mm | Weight: 3.24 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.75.R120 nsb045CRG G-Clean Chain, inner width 75mm, bending radius R120mm CP SYSTEM Inner Width (C): 75mm | Outer Width (A): 105mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 120mm | Loop Length (Lp): 647mm | Moving Height (H): 333mm | Weight: 3.24 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.75.R140 nsb045CRG G-Clean Chain, inner width 75mm, bending radius R140mm CP SYSTEM Inner Width (C): 75mm | Outer Width (A): 105mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 140mm | Loop Length (Lp): 710mm | Moving Height (H): 373mm | Weight: 3.24 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.100.R75 nsb045CRG G-Clean Chain, inner width 100mm, bending radius R75mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 130mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 75mm | Loop Length (Lp): 506mm | Moving Height (H): 243mm | Weight: 3.38 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.100.R100 nsb045CRG G-Clean Chain, inner width 100mm, bending radius R100mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 130mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 100mm | Loop Length (Lp): 584mm | Moving Height (H): 293mm | Weight: 3.38 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.100.R120 nsb045CRG G-Clean Chain, inner width 100mm, bending radius R120mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 130mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 120mm | Loop Length (Lp): 647mm | Moving Height (H): 333mm | Weight: 3.38 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.100.R140 nsb045CRG G-Clean Chain, inner width 100mm, bending radius R140mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 130mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 140mm | Loop Length (Lp): 710mm | Moving Height (H): 373mm | Weight: 3.38 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.125.R75 nsb045CRG G-Clean Chain, inner width 125mm, bending radius R75mm CP SYSTEM Inner Width (C): 125mm | Outer Width (A): 155mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 75mm | Loop Length (Lp): 506mm | Moving Height (H): 243mm | Weight: 3.53 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.125.R100 nsb045CRG G-Clean Chain, inner width 125mm, bending radius R100mm CP SYSTEM Inner Width (C): 125mm | Outer Width (A): 155mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 100mm | Loop Length (Lp): 584mm | Moving Height (H): 293mm | Weight: 3.53 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.125.R120 nsb045CRG G-Clean Chain, inner width 125mm, bending radius R120mm CP SYSTEM Inner Width (C): 125mm | Outer Width (A): 155mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 120mm | Loop Length (Lp): 647mm | Moving Height (H): 333mm | Weight: 3.53 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.125.R140 nsb045CRG G-Clean Chain, inner width 125mm, bending radius R140mm CP SYSTEM Inner Width (C): 125mm | Outer Width (A): 155mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 140mm | Loop Length (Lp): 710mm | Moving Height (H): 373mm | Weight: 3.53 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.150.R75 nsb045CRG G-Clean Chain, inner width 150mm, bending radius R75mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 180mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 75mm | Loop Length (Lp): 506mm | Moving Height (H): 243mm | Weight: 3.67 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.150.R100 nsb045CRG G-Clean Chain, inner width 150mm, bending radius R100mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 180mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 100mm | Loop Length (Lp): 584mm | Moving Height (H): 293mm | Weight: 3.67 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.150.R120 nsb045CRG G-Clean Chain, inner width 150mm, bending radius R120mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 180mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 120mm | Loop Length (Lp): 647mm | Moving Height (H): 333mm | Weight: 3.67 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.150.R140 nsb045CRG G-Clean Chain, inner width 150mm, bending radius R140mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 180mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 140mm | Loop Length (Lp): 710mm | Moving Height (H): 373mm | Weight: 3.67 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.175.R75 nsb045CRG G-Clean Chain, inner width 175mm, bending radius R75mm CP SYSTEM Inner Width (C): 175mm | Outer Width (A): 205mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 75mm | Loop Length (Lp): 506mm | Moving Height (H): 243mm | Weight: 3.81 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.175.R100 nsb045CRG G-Clean Chain, inner width 175mm, bending radius R100mm CP SYSTEM Inner Width (C): 175mm | Outer Width (A): 205mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 100mm | Loop Length (Lp): 584mm | Moving Height (H): 293mm | Weight: 3.81 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.175.R120 nsb045CRG G-Clean Chain, inner width 175mm, bending radius R120mm CP SYSTEM Inner Width (C): 175mm | Outer Width (A): 205mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 120mm | Loop Length (Lp): 647mm | Moving Height (H): 333mm | Weight: 3.81 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.175.R140 nsb045CRG G-Clean Chain, inner width 175mm, bending radius R140mm CP SYSTEM Inner Width (C): 175mm | Outer Width (A): 205mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 140mm | Loop Length (Lp): 710mm | Moving Height (H): 373mm | Weight: 3.81 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.200.R75 nsb045CRG G-Clean Chain, inner width 200mm, bending radius R75mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 230mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 75mm | Loop Length (Lp): 506mm | Moving Height (H): 243mm | Weight: 4.03 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.200.R100 nsb045CRG G-Clean Chain, inner width 200mm, bending radius R100mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 230mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 100mm | Loop Length (Lp): 584mm | Moving Height (H): 293mm | Weight: 4.03 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.200.R120 nsb045CRG G-Clean Chain, inner width 200mm, bending radius R120mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 230mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 120mm | Loop Length (Lp): 647mm | Moving Height (H): 333mm | Weight: 4.03 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb045CRG.200.R140 nsb045CRG G-Clean Chain, inner width 200mm, bending radius R140mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 230mm | Outer Height (B): 71.2mm | Inner Height (D): 49mm | Bending Radius (R): 140mm | Loop Length (Lp): 710mm | Moving Height (H): 373mm | Weight: 4.03 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
