Cable Carriers
CP SYSTEM

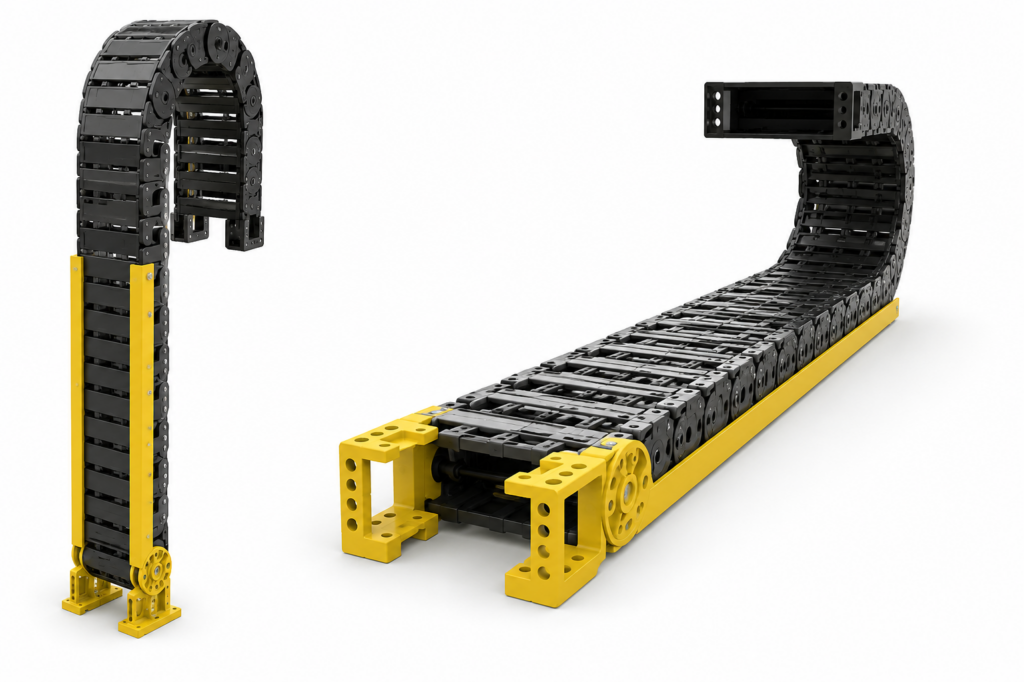

[CP SYSTEM] — Unity System ST095E (Shift Chain Enclosed (E), Guide Channel Supported)
Family ID: CPS-UNITY-ST095E
Unity System - long-travel cable carrier where the ST095E Shift Chain is supported inside a Guide Channel (GC) for stable horizontal runs. CPS-Amide chain, speed 6-10 m/s, CE / ATEX(Ex) / RoHs2 certified.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| ST095E.75/G | Unity System ST095E (Shift Chain Enclosed (E)), inside width 75mm, Guide Channel supported | CP SYSTEM | Type: Shift Chain Enclosed (E), Guide Channel supported | Inside Width (C): 75 mm | Frame (D): 100 mm | FEB Hole Width (E): 115 mm | FEB Width (F): 160 mm | GC Hole Width (G): 115 mm | Chain Outer Width (I): 138 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2 | ||
| ST095E.100/G | Unity System ST095E (Shift Chain Enclosed (E)), inside width 100mm, Guide Channel supported | CP SYSTEM | Type: Shift Chain Enclosed (E), Guide Channel supported | Inside Width (C): 100 mm | Frame (D): 125 mm | FEB Hole Width (E): 140 mm | FEB Width (F): 185 mm | GC Hole Width (G): 140 mm | Chain Outer Width (I): 163 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2 | ||
| ST095E.125/G | Unity System ST095E (Shift Chain Enclosed (E)), inside width 125mm, Guide Channel supported | CP SYSTEM | Type: Shift Chain Enclosed (E), Guide Channel supported | Inside Width (C): 125 mm | Frame (D): 150 mm | FEB Hole Width (E): 165 mm | FEB Width (F): 210 mm | GC Hole Width (G): 165 mm | Chain Outer Width (I): 188 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2 | ||
| ST095E.150/G | Unity System ST095E (Shift Chain Enclosed (E)), inside width 150mm, Guide Channel supported | CP SYSTEM | Type: Shift Chain Enclosed (E), Guide Channel supported | Inside Width (C): 150 mm | Frame (D): 175 mm | FEB Hole Width (E): 190 mm | FEB Width (F): 235 mm | GC Hole Width (G): 190 mm | Chain Outer Width (I): 213 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2 | ||
| ST095E.175/G | Unity System ST095E (Shift Chain Enclosed (E)), inside width 175mm, Guide Channel supported | CP SYSTEM | Type: Shift Chain Enclosed (E), Guide Channel supported | Inside Width (C): 175 mm | Frame (D): 200 mm | FEB Hole Width (E): 215 mm | FEB Width (F): 260 mm | GC Hole Width (G): 215 mm | Chain Outer Width (I): 238 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2 |
