Lifts & Conveyors
Daehwa Conveyor

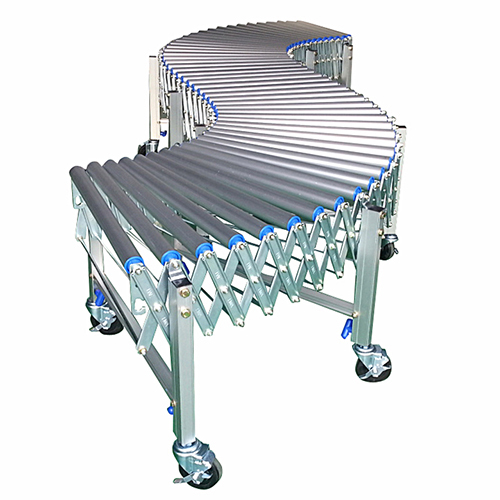

[Daehwa Conveyor] — DFCA-4035 Bellows Conveyor
Family ID: 567-0211
Daehwa Conveyor's DFCA-4035 Bellows Conveyor is a flexible material handling unit designed to transport bulk materials or components through compressed and extended bellows-style movement, sourced direct from Korea. Bellows conveyors are commonly used in industrial and manufacturing environments where controlled, enclosed material transfer is needed — particularly in dusty, granular, or fragile-product applications where spillage and contamination must be minimized. Request a quote today for export-ready supply, competitive Korea-direct pricing, and reliable fulfillment through a KITA-registered Korean exporter.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 567-0211 | DFCA-4035 | Daehwa Conveyor | DFCA-4035 (Aluminum Type) | Weight: 48.0 | Note: AL Roller / Low & High Profile Available | Number of Rollers: 23 | Number of Legs: 3 | Length L: Min 900 / Max 3440mm | Roller Frame: Inner W400 / Outer W570mm | Height (H): Std(S):600~900 Low(L):450~600 High(H):900~1500mm | ||
| 567-0220 | DFCA-4050 | Daehwa Conveyor | DFCA-4050 (Aluminum Type) | Weight: 67.0 | Note: AL Roller / Low & High Profile Available | Number of Rollers: 33 | Number of Legs: 5 | Length L: Min 1430 / Max 4980mm | Roller Frame: Inner W400 / Outer W570mm | Height (H): Std(S):600~900 Low(L):450~600 High(H):900~1500mm | ||
| 567-0239 | DFCA-4075 | Daehwa Conveyor | DFCA-4075 (Aluminum Type) ★Individual Delivery Item | Weight: 78.0 | Note: AL Roller / Low & High Profile Available | Number of Rollers: 49 | Number of Legs: 7 | Length L: Min 2140 / Max 7440mm | Roller Frame: Inner W400 / Outer W570mm | Height (H): Std(S):600~900 Low(L):450~600 High(H):900~1500mm | ||
| 567-0248 | DFCA-4535 | Daehwa Conveyor | DFCA-4535 (Aluminum Type) | Weight: 50.0 | Note: AL Roller / Low & High Profile Available | Number of Rollers: 23 | Number of Legs: 3 | Length L: Min 900 / Max 3440mm | Roller Frame: Inner W450 / Outer W620mm | Height (H): Std(S):600~900 Low(L):450~600 High(H):900~1500mm | ||
| 567-0257 | DFCA-4550 | Daehwa Conveyor | DFCA-4550 (Aluminum Type) | Weight: 71.0 | Note: AL Roller / Low & High Profile Available | Number of Rollers: 33 | Number of Legs: 5 | Length L: Min 1430 / Max 4980mm | Roller Frame: Inner W450 / Outer W620mm | Height (H): Std(S):600~900 Low(L):450~600 High(H):900~1500mm | ||
| 567-0266 | DFCA-4575 | Daehwa Conveyor | DFCA-4575 (Aluminum Type) ★Special Order Item | Weight: 88.0 | Note: AL Roller / Low & High Profile Available | Number of Rollers: 49 | Number of Legs: 7 | Length L: Min 2140 / Max 7440mm | Roller Frame: Inner W450 / Outer W620mm | Height (H): Std(S):600~900 Low(L):450~600 High(H):900~1500mm |
