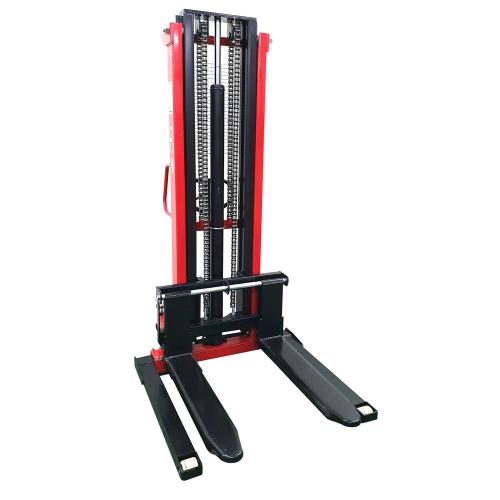

[UDT] — FSM-1020W Lift Manual Lift (Hydraulic Type)
Family ID: 515-6155
The UDT FSM-1020W is a manual hydraulic lift designed to raise and position heavy loads with controlled, stable vertical movement, sourced direct from Korea. Hydraulic manual lifts of this type are commonly used in workshops, warehouses, and light manufacturing facilities where powered lifting equipment is impractical or unavailable. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 515-6155 | FSM-1020W | UDT | FSM-1020W ★Special Order Item | Capacity: 1.0 | Weight: 245.0 | Fork Length: 900 | Fork Adjustment Range: 210~850 | Min Fork Height: 65 | Max Fork Height: 2/000 | Overall Width: 1/116 | Overall Length: 1/475 | Overall Height: 1/580 | ||
| 515-6164 | FSM-1030W | UDT | FSM-1030W ★Individual Delivery Item | Capacity: 1.0 | Weight: 265.0 | Fork Length: 900 | Fork Adjustment Range: 210~850 | Min Fork Height: 65 | Max Fork Height: 3/000 | Overall Width: 1/116 | Overall Length: 1/475 | Overall Height: 2/080 | ||
| 515-6173 | FSM-1520W | UDT | FSM-1520W ★Special Order Item | Capacity: 1.5 | Weight: 275.0 | Fork Length: 900 | Fork Adjustment Range: 210~850 | Min Fork Height: 65 | Max Fork Height: 2/000 | Overall Width: 1/116 | Overall Length: 1/475 | Overall Height: 1/580 | ||
| 515-6182 | FSM-1530W | UDT | FSM-1530W | Capacity: 1.5 | Weight: 285.0 | Fork Length: 900 | Fork Adjustment Range: 210~850 | Min Fork Height: 65 | Max Fork Height: 3/000 | Overall Width: 1/116 | Overall Length: 1/475 | Overall Height: 2/080 | ||
| 590-6055 | FS-1012W | UDT | FS-1012W (=SFH10-W1.2M) ★Individual Delivery Item | Capacity: 1.0 | Weight: 262.0 | Fork Length: 900 | Fork Adjustment Range: 330~740 | Min Fork Height: 85 | Max Fork Height: 1/600 | Overall Width: 1/680 | Overall Length: 1/410 | Overall Height: 1/980 |
