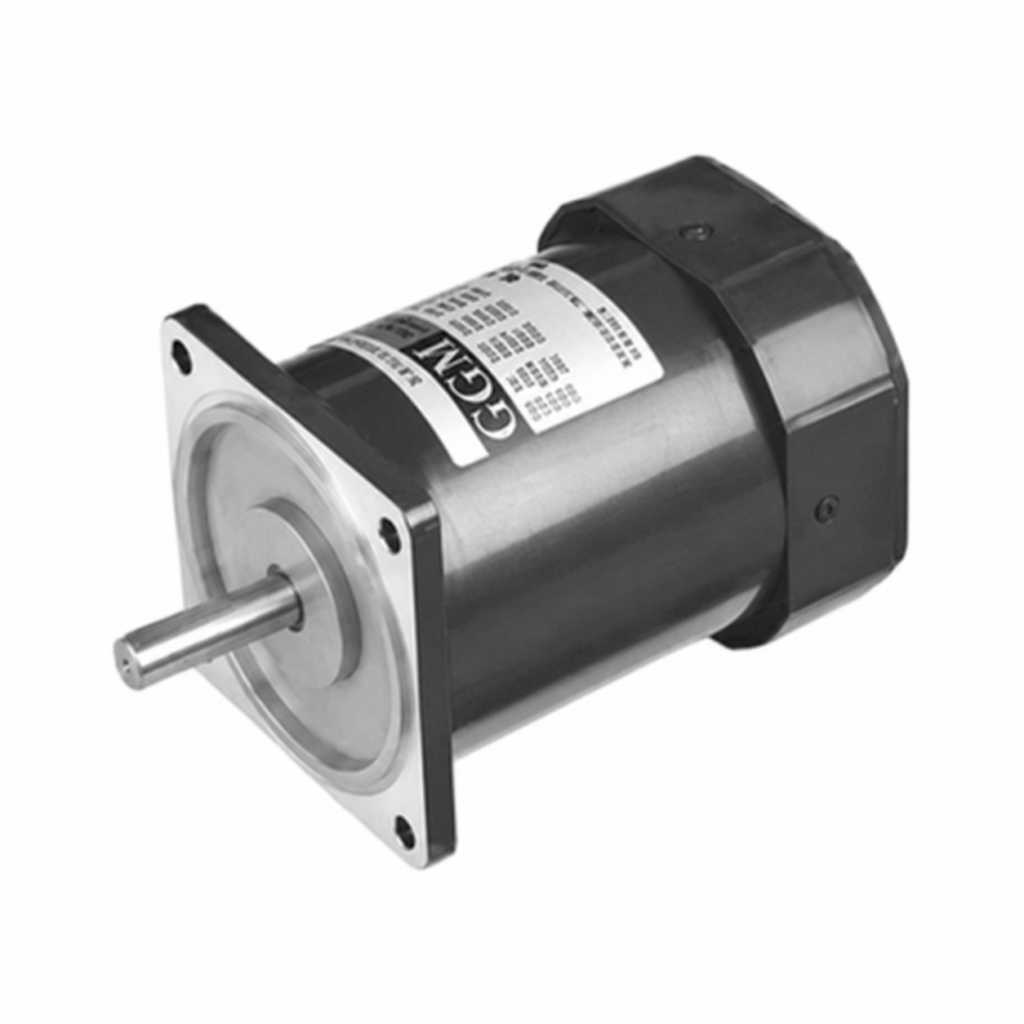

[GGM] — K8I□40F Series 40W Single-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)
AC Geared Motors GGM

[GGM] — K8I□40F Series 40W Single-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)

Family ID: GGM-K8I40F-1P

GGM K8I□40F series 40W single-phase AC induction motor. □80mm frame, 4-pole, continuous rating, lead wire (300mm, UL Style 3271 AWG20). Straight (S) and pinion (G) shaft; 220/230V (50/60Hz). Pinion-shaft type combines with K8G□ gear heads (matching face/teeth). Capacitor-run (2.5μF).

2 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
K8IS40FC GGM 40W single-phase AC induction motor K8IS40FC — Straight shaft, 220/230V, lead wire GGM Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 2.5μF | Operating Points: 220V/50Hz: 0.45A, Start 0.23/2.30N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.43A, Start 0.23/2.30N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.50A, Start 0.27/2.70N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.45A, Start 0.24/2.40N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm
K8IG40FC GGM 40W single-phase AC induction motor K8IG40FC — Pinion (for gear head) shaft, 220/230V, lead wire GGM Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 2.5μF | Operating Points: 220V/50Hz: 0.45A, Start 0.23/2.30N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.43A, Start 0.23/2.30N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.50A, Start 0.27/2.70N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.45A, Start 0.24/2.40N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm
