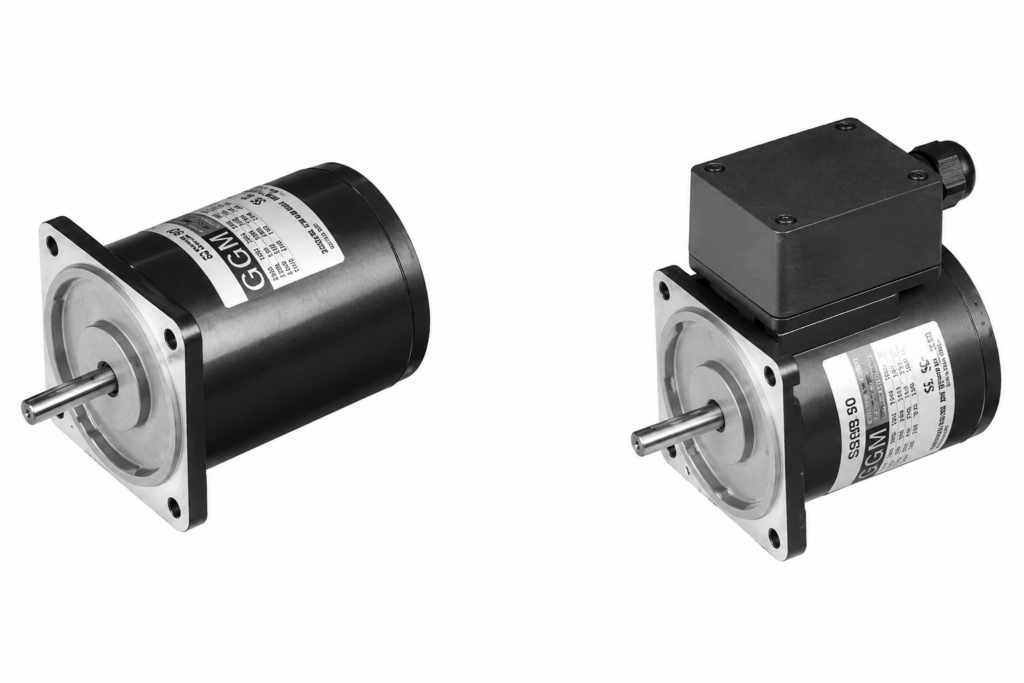

[GGM] — K9I□40N-T5 Series 40W Single-phase AC Induction Motor (□90mm, 4-Pole, Terminal Box T5 (Plastic))

Family ID: GGM-K9I40N-1P-T5

GGM K9I□40N series 40W single-phase AC induction motor. □90mm frame, 4-pole, continuous rating, terminal box (plastic). Straight (S) and pinion (G) shaft; 100–240V (50/60Hz). Pinion-shaft type combines with K9G□ gear heads (matching face/teeth). U variant (110/115V) UL certified (E204632).

10 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
K9IS40NJ-T5	GGM 40W single-phase AC induction motor K9IS40NJ-T5 — Straight shaft, 100V, Terminal Box (plastic)	GGM	Output: 40W \| Poles: 4 \| Phase: Single-phase \| Frame: □90mm \| Shaft: Straight \| Connection: Terminal Box (plastic) \| Voltage: 100V \| Condenser: 12μF \| Operating Points: 100V/50Hz: 0.86A, Start 0.21/2.1N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 100V/60Hz: 0.84A, Start 0.22/2.2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm \| UL: —
K9IG40NJ-T5	GGM 40W single-phase AC induction motor K9IG40NJ-T5 — Pinion (for gear head) shaft, 100V, Terminal Box (plastic)	GGM	Output: 40W \| Poles: 4 \| Phase: Single-phase \| Frame: □90mm \| Shaft: Pinion (for gear head) \| Connection: Terminal Box (plastic) \| Voltage: 100V \| Condenser: 12μF \| Operating Points: 100V/50Hz: 0.86A, Start 0.21/2.1N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 100V/60Hz: 0.84A, Start 0.22/2.2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm \| UL: —
K9IS40NU-T5	GGM 40W single-phase AC induction motor K9IS40NU-T5 — Straight shaft, 110/115V, Terminal Box (plastic)	GGM	Output: 40W \| Poles: 4 \| Phase: Single-phase \| Frame: □90mm \| Shaft: Straight \| Connection: Terminal Box (plastic) \| Voltage: 110/115V \| Condenser: 8μF \| Operating Points: 110V/60Hz: 0.65A, Start 0.19/1.9N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm ; 115V/60Hz: 0.68A, Start 0.2/2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm \| UL: —
K9IG40NU-T5	GGM 40W single-phase AC induction motor K9IG40NU-T5 — Pinion (for gear head) shaft, 110/115V, Terminal Box (plastic)	GGM	Output: 40W \| Poles: 4 \| Phase: Single-phase \| Frame: □90mm \| Shaft: Pinion (for gear head) \| Connection: Terminal Box (plastic) \| Voltage: 110/115V \| Condenser: 8μF \| Operating Points: 110V/60Hz: 0.65A, Start 0.19/1.9N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm ; 115V/60Hz: 0.68A, Start 0.2/2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm \| UL: —
K9IS40NL-T5	GGM 40W single-phase AC induction motor K9IS40NL-T5 — Straight shaft, 200V, Terminal Box (plastic)	GGM	Output: 40W \| Poles: 4 \| Phase: Single-phase \| Frame: □90mm \| Shaft: Straight \| Connection: Terminal Box (plastic) \| Voltage: 200V \| Condenser: 3μF \| Operating Points: 200V/50Hz: 0.40A, Start 0.22/2.2N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 200V/60Hz: 0.41A, Start 0.22/2.2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm \| UL: —
K9IG40NL-T5	GGM 40W single-phase AC induction motor K9IG40NL-T5 — Pinion (for gear head) shaft, 200V, Terminal Box (plastic)	GGM	Output: 40W \| Poles: 4 \| Phase: Single-phase \| Frame: □90mm \| Shaft: Pinion (for gear head) \| Connection: Terminal Box (plastic) \| Voltage: 200V \| Condenser: 3μF \| Operating Points: 200V/50Hz: 0.40A, Start 0.22/2.2N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 200V/60Hz: 0.41A, Start 0.22/2.2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm \| UL: —
K9IS40NC-T5	GGM 40W single-phase AC induction motor K9IS40NC-T5 — Straight shaft, 220/230V, Terminal Box (plastic)	GGM	Output: 40W \| Poles: 4 \| Phase: Single-phase \| Frame: □90mm \| Shaft: Straight \| Connection: Terminal Box (plastic) \| Voltage: 220/230V \| Condenser: 2.5μF \| Operating Points: 220V/50Hz: 0.38A, Start 0.24/2.4N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.37A, Start 0.24/2.4N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm ; 230V/50Hz: 0.40A, Start 0.26/2.6N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.38A, Start 0.26/2.6N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm \| UL: —
K9IG40NC-T5	GGM 40W single-phase AC induction motor K9IG40NC-T5 — Pinion (for gear head) shaft, 220/230V, Terminal Box (plastic)	GGM	Output: 40W \| Poles: 4 \| Phase: Single-phase \| Frame: □90mm \| Shaft: Pinion (for gear head) \| Connection: Terminal Box (plastic) \| Voltage: 220/230V \| Condenser: 2.5μF \| Operating Points: 220V/50Hz: 0.38A, Start 0.24/2.4N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.37A, Start 0.24/2.4N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm ; 230V/50Hz: 0.40A, Start 0.26/2.6N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.38A, Start 0.26/2.6N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm \| UL: —
K9IS40ND-T5	GGM 40W single-phase AC induction motor K9IS40ND-T5 — Straight shaft, 240V, Terminal Box (plastic)	GGM	Output: 40W \| Poles: 4 \| Phase: Single-phase \| Frame: □90mm \| Shaft: Straight \| Connection: Terminal Box (plastic) \| Voltage: 240V \| Condenser: 2μF \| Operating Points: 240V/50Hz: 0.39A, Start 0.2/2N·m·kgf·cm, Rated 0.3/3N·m·kgf·cm, 1300rpm \| UL: —
K9IG40ND-T5	GGM 40W single-phase AC induction motor K9IG40ND-T5 — Pinion (for gear head) shaft, 240V, Terminal Box (plastic)	GGM	Output: 40W \| Poles: 4 \| Phase: Single-phase \| Frame: □90mm \| Shaft: Pinion (for gear head) \| Connection: Terminal Box (plastic) \| Voltage: 240V \| Condenser: 2μF \| Operating Points: 240V/50Hz: 0.39A, Start 0.2/2N·m·kgf·cm, Rated 0.3/3N·m·kgf·cm, 1300rpm \| UL: —
