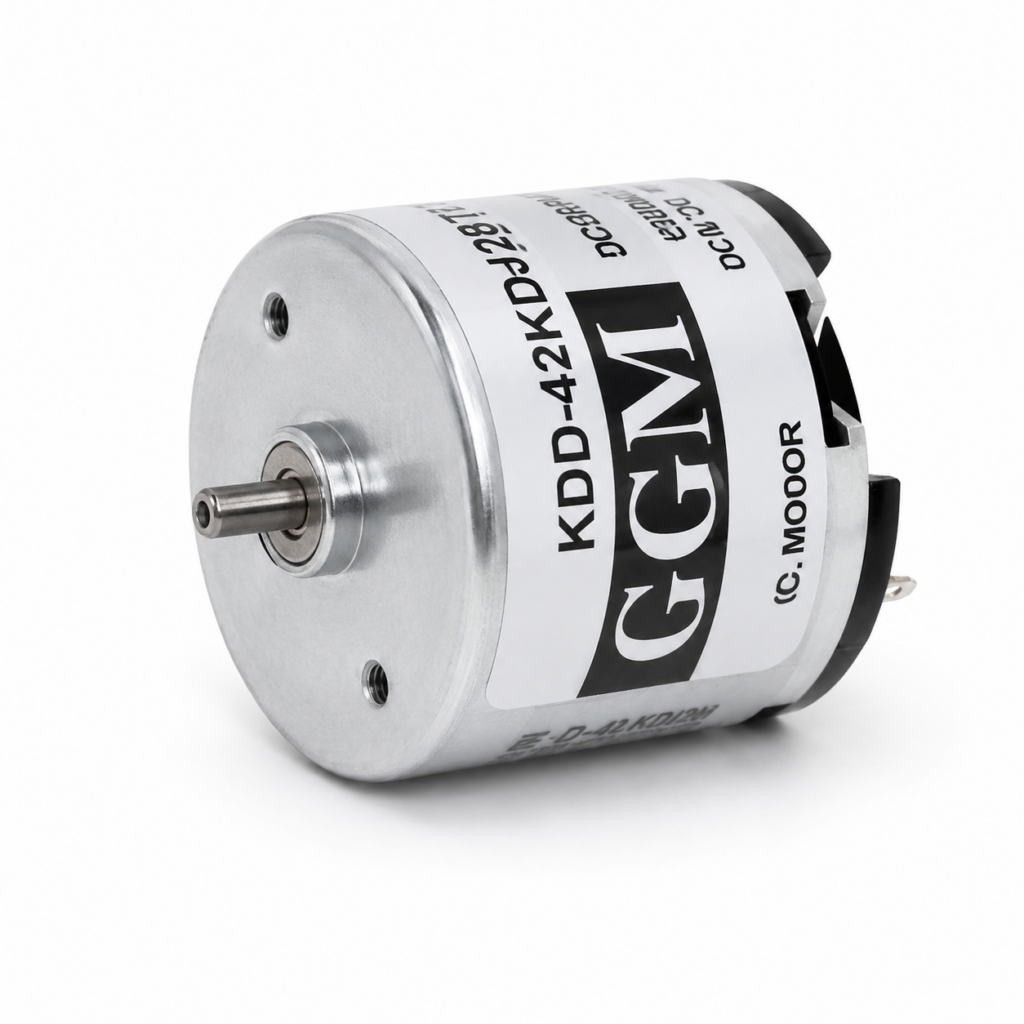

[GGM] — KD3429 Series DC Motor (ø34mm, 12/24V)
Family ID: GGM-KD3429
GGM KD3429 brushed DC motor, ø34mm can, ø3mm shaft, 2-M3 face mount; S/T/P speed grades (12V/24V); body 51.5mm, 90g.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| KD3429S1 | GGM KD3429S1 DC 12V brushed DC motor, no-load 5200 rpm, max-eff 4500 rpm / 40 gf·cm. | GGM | Model: KD3429S1 | Voltage: DC 12V | No-load Speed: 5200 rpm | Rated Speed (max eff.): 4500 rpm | Rated Torque (max eff.): 40 gf·cm | Rated Current (max eff.): 0.3 A | Stall Torque: 360 gf·cm | Stall Current: 1.7 A | Frame: ø34mm can | Output Shaft: ø3mm, 2-M3 face mount | Type: DC motor | ||
| KD3429S2 | GGM KD3429S2 DC 24V brushed DC motor, no-load 5200 rpm, max-eff 4500 rpm / 40 gf·cm. | GGM | Model: KD3429S2 | Voltage: DC 24V | No-load Speed: 5200 rpm | Rated Speed (max eff.): 4500 rpm | Rated Torque (max eff.): 40 gf·cm | Rated Current (max eff.): 0.2 A | Stall Torque: 370 gf·cm | Stall Current: 1 A | Frame: ø34mm can | Output Shaft: ø3mm, 2-M3 face mount | Type: DC motor | ||
| KD3429T1 | GGM KD3429T1 DC 12V brushed DC motor, no-load 7500 rpm, max-eff 6500 rpm / 40 gf·cm. | GGM | Model: KD3429T1 | Voltage: DC 12V | No-load Speed: 7500 rpm | Rated Speed (max eff.): 6500 rpm | Rated Torque (max eff.): 40 gf·cm | Rated Current (max eff.): 0.5 A | Stall Torque: 420 gf·cm | Stall Current: 3.8 A | Frame: ø34mm can | Output Shaft: ø3mm, 2-M3 face mount | Type: DC motor | ||
| KD3429T2 | GGM KD3429T2 DC 24V brushed DC motor, no-load 7500 rpm, max-eff 6500 rpm / 40 gf·cm. | GGM | Model: KD3429T2 | Voltage: DC 24V | No-load Speed: 7500 rpm | Rated Speed (max eff.): 6500 rpm | Rated Torque (max eff.): 40 gf·cm | Rated Current (max eff.): 0.2 A | Stall Torque: 320 gf·cm | Stall Current: 1.2 A | Frame: ø34mm can | Output Shaft: ø3mm, 2-M3 face mount | Type: DC motor | ||
| KD3429P1 | GGM KD3429P1 DC 12V brushed DC motor, no-load 9500 rpm, max-eff 8000 rpm / 80 gf·cm. | GGM | Model: KD3429P1 | Voltage: DC 12V | No-load Speed: 9500 rpm | Rated Speed (max eff.): 8000 rpm | Rated Torque (max eff.): 80 gf·cm | Rated Current (max eff.): 1 A | Stall Torque: 330 gf·cm | Stall Current: 3.8 A | Frame: ø34mm can | Output Shaft: ø3mm, 2-M3 face mount | Type: DC motor | ||
| KD3429P2 | GGM KD3429P2 DC 24V brushed DC motor, no-load 9500 rpm, max-eff 8000 rpm / 40 gf·cm. | GGM | Model: KD3429P2 | Voltage: DC 24V | No-load Speed: 9500 rpm | Rated Speed (max eff.): 8000 rpm | Rated Torque (max eff.): 40 gf·cm | Rated Current (max eff.): 0.3 A | Stall Torque: 350 gf·cm | Stall Current: 2 A | Frame: ø34mm can | Output Shaft: ø3mm, 2-M3 face mount | Type: DC motor |
