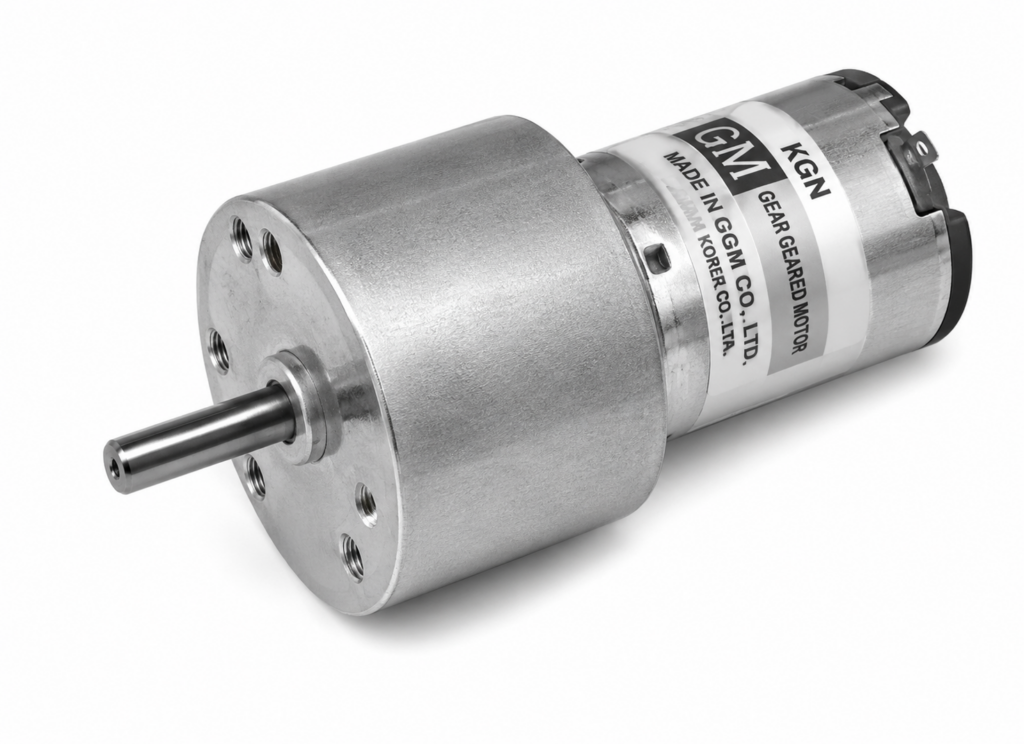

[GGM] — KG5-3448 Geared Motor, KD3448S1 (DC 12V, 36 ratios 1/3–1/3240, ø50 inline)
Family ID: GGM-KG5-3448-S1
GGM KG5-3448 DC geared motor with KD3448S1 brushed motor (DC 12V, no-load 5200 rpm). 36 reduction ratios 1/3–1/3240, ø50 round flange with ø6 coaxial output shaft, output torque up to 10 kgf·cm.
36 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| KG5-0003-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/3 | GGM | Gear Ratio: 1/3 | Output Speed: 1500 rpm | Output Torque: 0.2 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0005-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/5 | GGM | Gear Ratio: 1/5 | Output Speed: 900 rpm | Output Torque: 0.3 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0010-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/10 | GGM | Gear Ratio: 1/10 | Output Speed: 450 rpm | Output Torque: 0.65 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0015-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/15 | GGM | Gear Ratio: 1/15 | Output Speed: 300 rpm | Output Torque: 0.87 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0020-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/20 | GGM | Gear Ratio: 1/20 | Output Speed: 225 rpm | Output Torque: 1.2 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0025-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/25 | GGM | Gear Ratio: 1/25 | Output Speed: 180 rpm | Output Torque: 1.5 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0030-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/30 | GGM | Gear Ratio: 1/30 | Output Speed: 150 rpm | Output Torque: 1.75 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0040-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/40 | GGM | Gear Ratio: 1/40 | Output Speed: 112.5 rpm | Output Torque: 2.3 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0050-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/50 | GGM | Gear Ratio: 1/50 | Output Speed: 90 rpm | Output Torque: 2.6 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0060-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/60 | GGM | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 3.1 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0075-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/75 | GGM | Gear Ratio: 1/75 | Output Speed: 60 rpm | Output Torque: 3.9 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0090-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/90 | GGM | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0100-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/100 | GGM | Gear Ratio: 1/100 | Output Speed: 45 rpm | Output Torque: 5.2 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0120-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/120 | GGM | Gear Ratio: 1/120 | Output Speed: 37.5 rpm | Output Torque: 6.3 kgf·cm | Gearhead Length: 34 mm | ||
| KG5-0150-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/150 | GGM | Gear Ratio: 1/150 | Output Speed: 30 rpm | Output Torque: 7 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0160-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/160 | GGM | Gear Ratio: 1/160 | Output Speed: 28.1 rpm | Output Torque: 7.5 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0180-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/180 | GGM | Gear Ratio: 1/180 | Output Speed: 25 rpm | Output Torque: 8.5 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0200-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/200 | GGM | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 9.4 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0210-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/210 | GGM | Gear Ratio: 1/210 | Output Speed: 21.4 rpm | Output Torque: 9.9 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0240-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/240 | GGM | Gear Ratio: 1/240 | Output Speed: 18.8 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0250-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/250 | GGM | Gear Ratio: 1/250 | Output Speed: 18 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0270-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/270 | GGM | Gear Ratio: 1/270 | Output Speed: 16.7 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0300-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/300 | GGM | Gear Ratio: 1/300 | Output Speed: 15 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0360-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/360 | GGM | Gear Ratio: 1/360 | Output Speed: 12.5 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0400-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/400 | GGM | Gear Ratio: 1/400 | Output Speed: 11.3 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0500-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/500 | GGM | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0600-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/600 | GGM | Gear Ratio: 1/600 | Output Speed: 7.5 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0750-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/750 | GGM | Gear Ratio: 1/750 | Output Speed: 6 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-0900-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/900 | GGM | Gear Ratio: 1/900 | Output Speed: 5 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-1080-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/1080 | GGM | Gear Ratio: 1/1080 | Output Speed: 4.2 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-1250-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/1250 | GGM | Gear Ratio: 1/1250 | Output Speed: 3.6 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-1500-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/1500 | GGM | Gear Ratio: 1/1500 | Output Speed: 3 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-1800-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/1800 | GGM | Gear Ratio: 1/1800 | Output Speed: 2.5 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-2250-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/2250 | GGM | Gear Ratio: 1/2250 | Output Speed: 2 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-2700-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/2700 | GGM | Gear Ratio: 1/2700 | Output Speed: 1.7 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm | ||
| KG5-3240-KD3448S1 | KG5-3448 KD3448S1 geared motor, 1/3240 | GGM | Gear Ratio: 1/3240 | Output Speed: 1.4 rpm | Output Torque: 10 kgf·cm | Gearhead Length: 46 mm |
