![[GGM] — KGE-3429-P1 F-Type Offset Geared DC Motor (DC 12V, 9500rpm base, 18 ratios 1/22-1/687)](https://img.prosourcemro.com/2026/06/0605-5-1024x1024.png)
DC
GGM

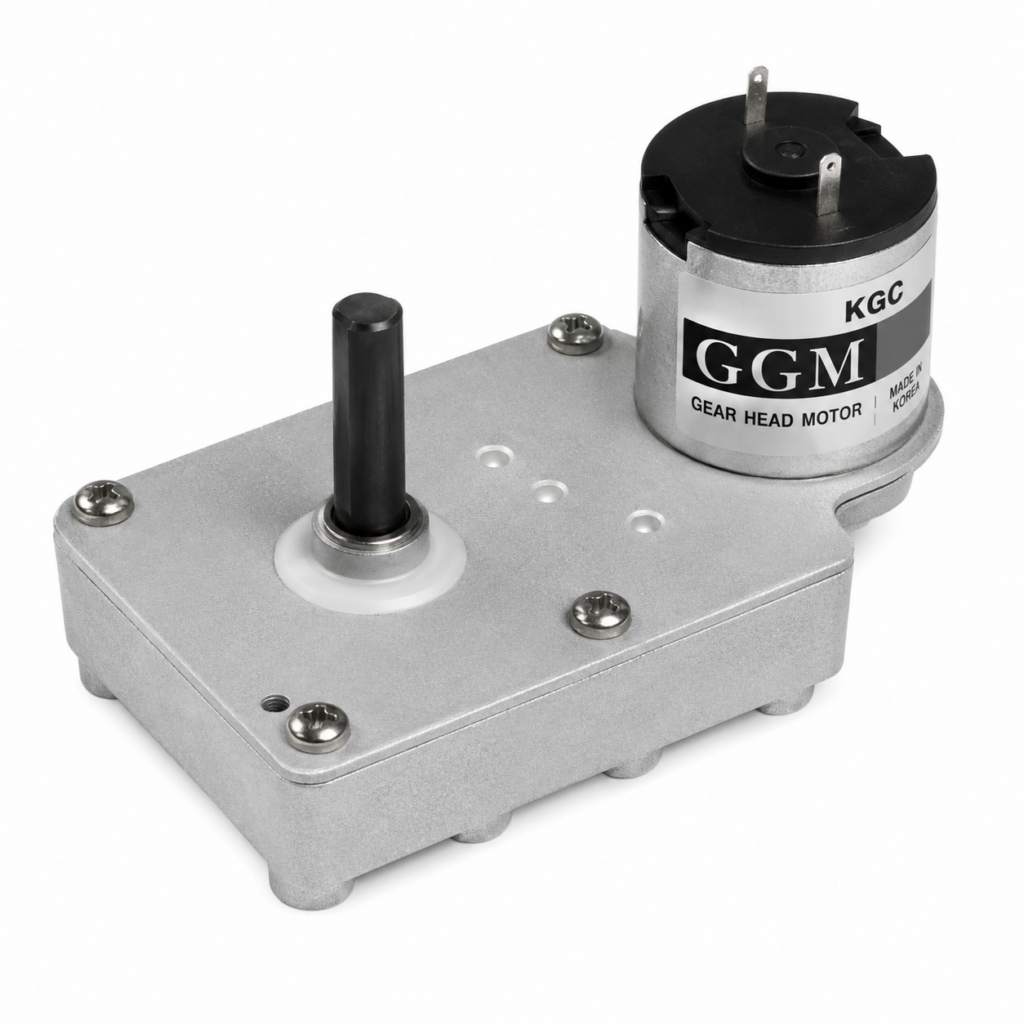

[GGM] — KGE-3429-P1 F-Type Offset Geared DC Motor (DC 12V, 9500rpm base, 18 ratios 1/22-1/687)
Family ID: GGM-KGE3429-P1-F
GGM KGE-3429-P1 f-type offset parallel-shaft geared DC motor, DC 12V (9500 rpm base motor). 18 gear ratios 1/22-1/687, output torque up to 20 kgf·cm, ø8 output shaft, 8-M4 mounting on 56x100.5 housing. F-Type shaft orientation (F-Type is standard). High-torque output (12V P1 winding).
18 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| KGE-0022-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/22, 364rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/22 | Output Speed: 364 rpm | Output Torque: 1.3 kgf·cm | Shaft Type: F-Type | ||
| KGE-0034-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/34, 235rpm, 2kgf·cm | GGM | Gear Ratio: 1/34 | Output Speed: 235 rpm | Output Torque: 2 kgf·cm | Shaft Type: F-Type | ||
| KGE-0043-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/43, 186rpm, 2.5kgf·cm | GGM | Gear Ratio: 1/43 | Output Speed: 186 rpm | Output Torque: 2.5 kgf·cm | Shaft Type: F-Type | ||
| KGE-0050-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/50, 160rpm, 2.9kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 160 rpm | Output Torque: 2.9 kgf·cm | Shaft Type: F-Type | ||
| KGE-0062-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/62, 129rpm, 3.6kgf·cm | GGM | Gear Ratio: 1/62 | Output Speed: 129 rpm | Output Torque: 3.6 kgf·cm | Shaft Type: F-Type | ||
| KGE-0068-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/68, 117.6rpm, 4kgf·cm | GGM | Gear Ratio: 1/68 | Output Speed: 117.6 rpm | Output Torque: 4 kgf·cm | Shaft Type: F-Type | ||
| KGE-0083-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/83, 96.4rpm, 4.8kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 96.4 rpm | Output Torque: 4.8 kgf·cm | Shaft Type: F-Type | ||
| KGE-0105-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/105, 76.2rpm, 6.1kgf·cm | GGM | Gear Ratio: 1/105 | Output Speed: 76.2 rpm | Output Torque: 6.1 kgf·cm | Shaft Type: F-Type | ||
| KGE-0116-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/116, 69rpm, 6.8kgf·cm | GGM | Gear Ratio: 1/116 | Output Speed: 69 rpm | Output Torque: 6.8 kgf·cm | Shaft Type: F-Type | ||
| KGE-0162-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/162, 49.4rpm, 8.5kgf·cm | GGM | Gear Ratio: 1/162 | Output Speed: 49.4 rpm | Output Torque: 8.5 kgf·cm | Shaft Type: F-Type | ||
| KGE-0182-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/182, 44rpm, 9.6kgf·cm | GGM | Gear Ratio: 1/182 | Output Speed: 44 rpm | Output Torque: 9.6 kgf·cm | Shaft Type: F-Type | ||
| KGE-0204-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/204, 39.2rpm, 10.7kgf·cm | GGM | Gear Ratio: 1/204 | Output Speed: 39.2 rpm | Output Torque: 10.7 kgf·cm | Shaft Type: F-Type | ||
| KGE-0240-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/240, 33.3rpm, 12.6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 33.3 rpm | Output Torque: 12.6 kgf·cm | Shaft Type: F-Type | ||
| KGE-0308-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/308, 26rpm, 16.2kgf·cm | GGM | Gear Ratio: 1/308 | Output Speed: 26 rpm | Output Torque: 16.2 kgf·cm | Shaft Type: F-Type | ||
| KGE-0350-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/350, 22.9rpm, 18.4kgf·cm | GGM | Gear Ratio: 1/350 | Output Speed: 22.9 rpm | Output Torque: 18.4 kgf·cm | Shaft Type: F-Type | ||
| KGE-0452-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/452, 17.7rpm, 20kgf·cm | GGM | Gear Ratio: 1/452 | Output Speed: 17.7 rpm | Output Torque: 20 kgf·cm | Shaft Type: F-Type | ||
| KGE-0615-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/615, 13rpm, 20kgf·cm | GGM | Gear Ratio: 1/615 | Output Speed: 13 rpm | Output Torque: 20 kgf·cm | Shaft Type: F-Type | ||
| KGE-0687-KD3429P1 | KGE-3429-P1 F-Type offset geared, 1/687, 11.6rpm, 20kgf·cm | GGM | Gear Ratio: 1/687 | Output Speed: 11.6 rpm | Output Torque: 20 kgf·cm | Shaft Type: F-Type |
