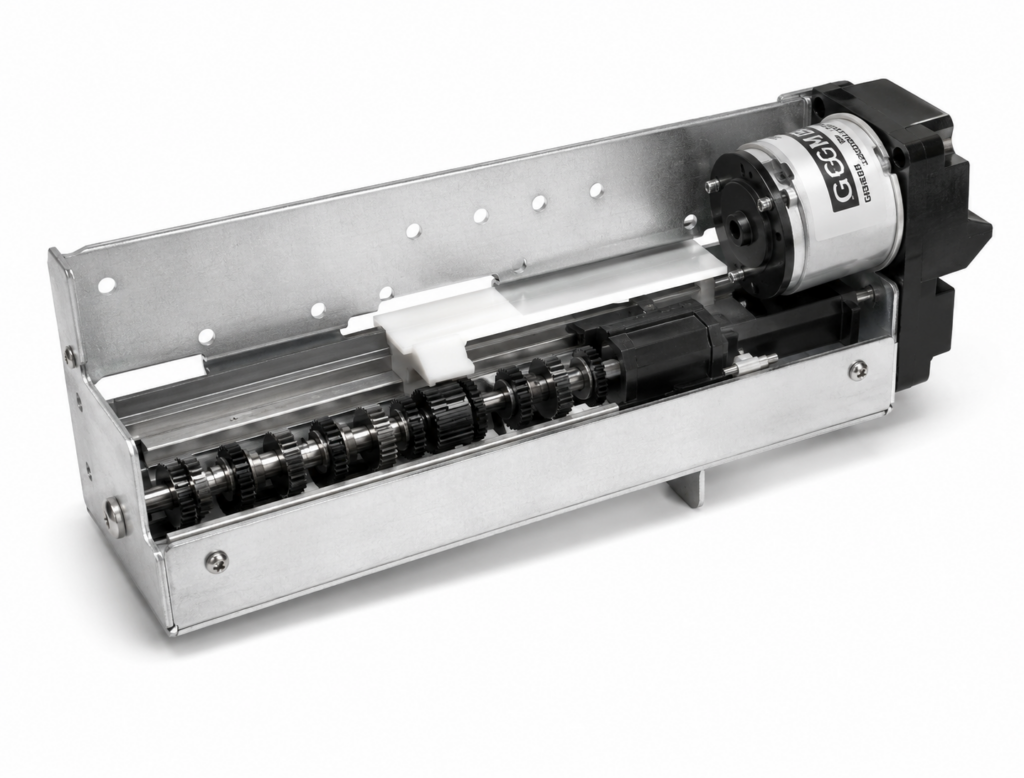

[GGM] — KGU-0035 Linear Actuator (Lead Screw, 135mm Stroke, KD3429 motor, DC 12V/24V, 6 motor options)
Family ID: GGM-KGU0035
GGM KGU-0035 lead-screw linear actuator with 135mm stroke, KD3429 DC motor. Six motor options (S/T/P speed grades, DC 12V/24V). Output thrust up to 2 kgf·cm at max efficiency, up to 18 cycles/min no-load.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| KGU-0035-KD3429S1 | KGU-0035 linear actuator, KD3429S1, DC 12V, 135mm stroke, 9 cycle/min @ max eff | GGM | Motor: KD3429S1 | Voltage: DC 12V | Stroke: 135 mm | No-load Speed: 140 rpm / 10 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 126 rpm / 9 cycle/min | Stall Thrust: 9.2 kgf·cm | Stall Current: 1.7 A | ||
| KGU-0035-KD3429S2 | KGU-0035 linear actuator, KD3429S2, DC 24V, 135mm stroke, 9 cycle/min @ max eff | GGM | Motor: KD3429S2 | Voltage: DC 24V | Stroke: 135 mm | No-load Speed: 140 rpm / 10 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 126 rpm / 9 cycle/min | Stall Thrust: 9.5 kgf·cm | Stall Current: 1 A | ||
| KGU-0035-KD3429T1 | KGU-0035 linear actuator, KD3429T1, DC 12V, 135mm stroke, 12 cycle/min @ max eff | GGM | Motor: KD3429T1 | Voltage: DC 12V | Stroke: 135 mm | No-load Speed: 210 rpm / 14 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 168 rpm / 12 cycle/min | Stall Thrust: 10.8 kgf·cm | Stall Current: 3.8 A | ||
| KGU-0035-KD3429T2 | KGU-0035 linear actuator, KD3429T2, DC 24V, 135mm stroke, 12 cycle/min @ max eff | GGM | Motor: KD3429T2 | Voltage: DC 24V | Stroke: 135 mm | No-load Speed: 210 rpm / 14 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 168 rpm / 12 cycle/min | Stall Thrust: 8.2 kgf·cm | Stall Current: 1.2 A | ||
| KGU-0035-KD3429P1 | KGU-0035 linear actuator, KD3429P1, DC 12V, 135mm stroke, 15 cycle/min @ max eff | GGM | Motor: KD3429P1 | Voltage: DC 12V | Stroke: 135 mm | No-load Speed: 252 rpm / 18 cycle/min | Max-Eff Thrust: 2 kgf·cm | Max-Eff Speed: 210 rpm / 15 cycle/min | Stall Thrust: 8.5 kgf·cm | Stall Current: 3.8 A | ||
| KGU-0035-KD3429P2 | KGU-0035 linear actuator, KD3429P2, DC 24V, 135mm stroke, 15 cycle/min @ max eff | GGM | Motor: KD3429P2 | Voltage: DC 24V | Stroke: 135 mm | No-load Speed: 252 rpm / 18 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 210 rpm / 15 cycle/min | Stall Thrust: 9 kgf·cm | Stall Current: 2 A |
