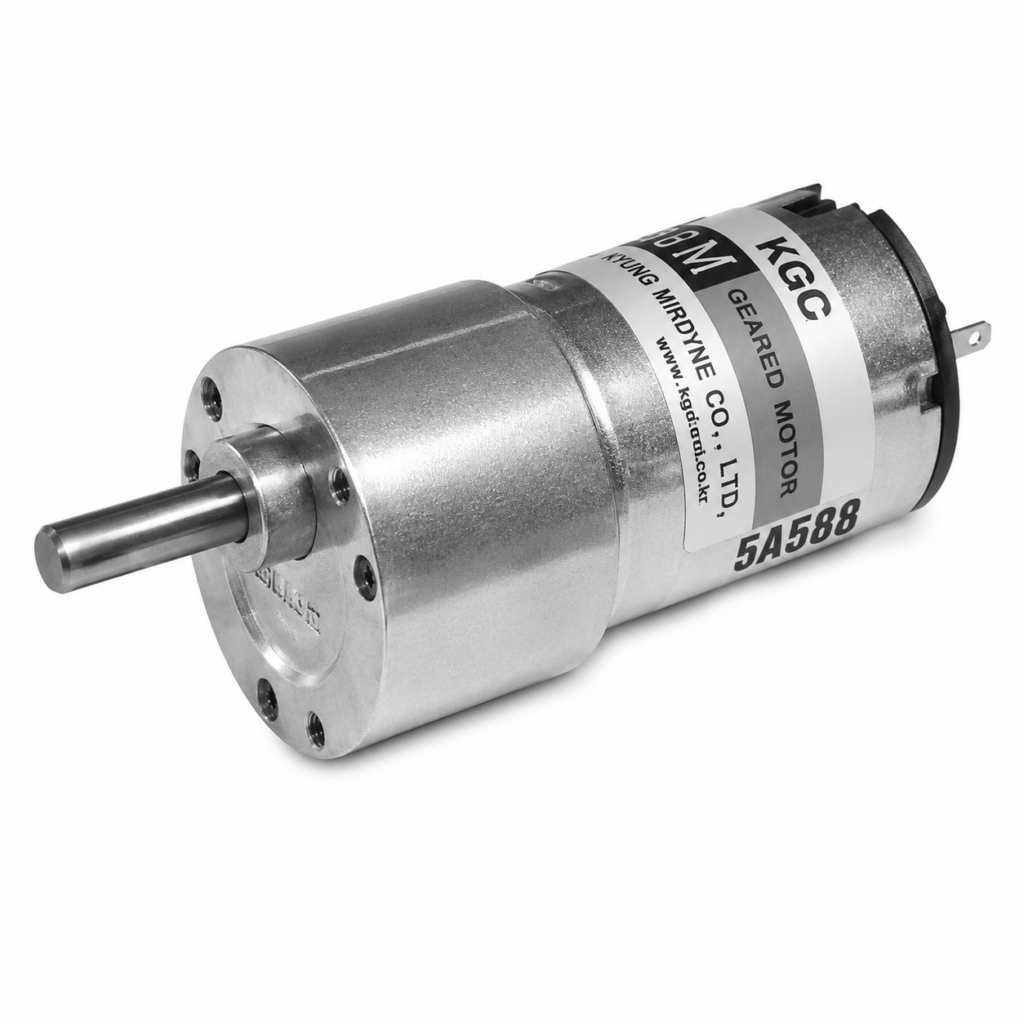

[GGM] — KGC-3448-S2 Spur Geared DC Motor (ø34, DC 24V, 5200rpm base, 32 ratios 1/2-1/2430)
Family ID: GGM-KGC3448-S2
GGM KGC-3448-S2 spur geared DC motor, ø34 long-can frame, DC 24V (Standard, 5200 rpm base motor). 32 gear ratios 1/2-1/2430, output torque up to 6 kgf·cm, ø6 output shaft on 3-M3 PCD ø31 flange.
32 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| KGC-0002-KD3448S2 | KGC-3448-S2 spur geared, 1/2, 2250rpm, 0.13kgf·cm | GGM | Gear Ratio: 1/2 | Output Speed: 2250 rpm | Output Torque: 0.13 kgf·cm | Gearhead Length L: 21 mm | ||
| KGC-0003-KD3448S2 | KGC-3448-S2 spur geared, 1/3, 1500rpm, 0.19kgf·cm | GGM | Gear Ratio: 1/3 | Output Speed: 1500 rpm | Output Torque: 0.19 kgf·cm | Gearhead Length L: 21 mm | ||
| KGC-0005-KD3448S2 | KGC-3448-S2 spur geared, 1/5, 900rpm, 0.32kgf·cm | GGM | Gear Ratio: 1/5 | Output Speed: 900 rpm | Output Torque: 0.32 kgf·cm | Gearhead Length L: 21 mm | ||
| KGC-0010-KD3448S2 | KGC-3448-S2 spur geared, 1/10, 450rpm, 0.65kgf·cm | GGM | Gear Ratio: 1/10 | Output Speed: 450 rpm | Output Torque: 0.65 kgf·cm | Gearhead Length L: 21 mm | ||
| KGC-0015-KD3448S2 | KGC-3448-S2 spur geared, 1/15, 300rpm, 0.87kgf·cm | GGM | Gear Ratio: 1/15 | Output Speed: 300 rpm | Output Torque: 0.87 kgf·cm | Gearhead Length L: 21 mm | ||
| KGC-0020-KD3448S2 | KGC-3448-S2 spur geared, 1/20, 225rpm, 1.1kgf·cm | GGM | Gear Ratio: 1/20 | Output Speed: 225 rpm | Output Torque: 1.1 kgf·cm | Gearhead Length L: 21 mm | ||
| KGC-0025-KD3448S2 | KGC-3448-S2 spur geared, 1/25, 180rpm, 1.4kgf·cm | GGM | Gear Ratio: 1/25 | Output Speed: 180 rpm | Output Torque: 1.4 kgf·cm | Gearhead Length L: 21 mm | ||
| KGC-0030-KD3448S2 | KGC-3448-S2 spur geared, 1/30, 150rpm, 1.7kgf·cm | GGM | Gear Ratio: 1/30 | Output Speed: 150 rpm | Output Torque: 1.7 kgf·cm | Gearhead Length L: 21 mm | ||
| KGC-0040-KD3448S2 | KGC-3448-S2 spur geared, 1/40, 112.5rpm, 2.1kgf·cm | GGM | Gear Ratio: 1/40 | Output Speed: 112.5 rpm | Output Torque: 2.1 kgf·cm | Gearhead Length L: 29 mm | ||
| KGC-0050-KD3448S2 | KGC-3448-S2 spur geared, 1/50, 90rpm, 2.6kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 90 rpm | Output Torque: 2.6 kgf·cm | Gearhead Length L: 29 mm | ||
| KGC-0060-KD3448S2 | KGC-3448-S2 spur geared, 1/60, 75rpm, 3.1kgf·cm | GGM | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 3.1 kgf·cm | Gearhead Length L: 29 mm | ||
| KGC-0070-KD3448S2 | KGC-3448-S2 spur geared, 1/70, 64.3rpm, 3.3kgf·cm | GGM | Gear Ratio: 1/70 | Output Speed: 64.3 rpm | Output Torque: 3.3 kgf·cm | Gearhead Length L: 29 mm | ||
| KGC-0083-KD3448S2 | KGC-3448-S2 spur geared, 1/83, 54.2rpm, 3.9kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 54.2 rpm | Output Torque: 3.9 kgf·cm | Gearhead Length L: 29 mm | ||
| KGC-0090-KD3448S2 | KGC-3448-S2 spur geared, 1/90, 50rpm, 4.2kgf·cm | GGM | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 4.2 kgf·cm | Gearhead Length L: 29 mm | ||
| KGC-0100-KD3448S2 | KGC-3448-S2 spur geared, 1/100, 45rpm, 4.7kgf·cm | GGM | Gear Ratio: 1/100 | Output Speed: 45 rpm | Output Torque: 4.7 kgf·cm | Gearhead Length L: 29 mm | ||
| KGC-0120-KD3448S2 | KGC-3448-S2 spur geared, 1/120, 37.5rpm, 5.6kgf·cm | GGM | Gear Ratio: 1/120 | Output Speed: 37.5 rpm | Output Torque: 5.6 kgf·cm | Gearhead Length L: 29 mm | ||
| KGC-0150-KD3448S2 | KGC-3448-S2 spur geared, 1/150, 30rpm, 6kgf·cm | GGM | Gear Ratio: 1/150 | Output Speed: 30 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | ||
| KGC-0180-KD3448S2 | KGC-3448-S2 spur geared, 1/180, 25rpm, 6kgf·cm | GGM | Gear Ratio: 1/180 | Output Speed: 25 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 29 mm | ||
| KGC-0200-KD3448S2 | KGC-3448-S2 spur geared, 1/200, 22.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-0210-KD3448S2 | KGC-3448-S2 spur geared, 1/210, 21.4rpm, 6kgf·cm | GGM | Gear Ratio: 1/210 | Output Speed: 21.4 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-0240-KD3448S2 | KGC-3448-S2 spur geared, 1/240, 18.7rpm, 6kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 18.7 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-0300-KD3448S2 | KGC-3448-S2 spur geared, 1/300, 15rpm, 6kgf·cm | GGM | Gear Ratio: 1/300 | Output Speed: 15 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-0360-KD3448S2 | KGC-3448-S2 spur geared, 1/360, 12.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/360 | Output Speed: 12.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-0400-KD3448S2 | KGC-3448-S2 spur geared, 1/400, 11.2rpm, 6kgf·cm | GGM | Gear Ratio: 1/400 | Output Speed: 11.2 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-0500-KD3448S2 | KGC-3448-S2 spur geared, 1/500, 9rpm, 6kgf·cm | GGM | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-0600-KD3448S2 | KGC-3448-S2 spur geared, 1/600, 7.5rpm, 6kgf·cm | GGM | Gear Ratio: 1/600 | Output Speed: 7.5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-0750-KD3448S2 | KGC-3448-S2 spur geared, 1/750, 6rpm, 6kgf·cm | GGM | Gear Ratio: 1/750 | Output Speed: 6 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-0900-KD3448S2 | KGC-3448-S2 spur geared, 1/900, 5rpm, 6kgf·cm | GGM | Gear Ratio: 1/900 | Output Speed: 5 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-1080-KD3448S2 | KGC-3448-S2 spur geared, 1/1080, 4.1rpm, 6kgf·cm | GGM | Gear Ratio: 1/1080 | Output Speed: 4.1 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-1350-KD3448S2 | KGC-3448-S2 spur geared, 1/1350, 3.3rpm, 6kgf·cm | GGM | Gear Ratio: 1/1350 | Output Speed: 3.3 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-1620-KD3448S2 | KGC-3448-S2 spur geared, 1/1620, 2.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/1620 | Output Speed: 2.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm | ||
| KGC-2430-KD3448S2 | KGC-3448-S2 spur geared, 1/2430, 1.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/2430 | Output Speed: 1.8 rpm | Output Torque: 6 kgf·cm | Gearhead Length L: 33.7 mm |
