[KBC] — 560-0416 Wire Rope Clip
Family ID: 560-0416

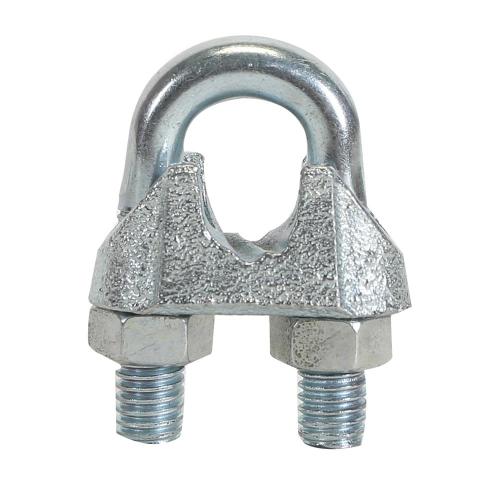

KBC Wire Rope Clip is a mechanical fastening component used to secure wire rope ends and form fixed loops, sourced direct from Korea. Commonly used in rigging, lifting, hoisting, and tie-down applications, these clips are a standard hardware element wherever wire rope terminations need to be held firmly under load. Request a quote today for export-ready supply of KBC Wire Rope Clips at competitive pricing through a KITA-registered Korean exporter.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 560-0416 | — | KBC | 3.2mm (1/8") General Clip | Spec: 1/8 | Weight: 0.006 | A: 11 | C: 14 | D: - | E: 10 | F: 22 | G: 20 | B: 14 | ||
| 560-0425 | — | KBC | 4.8mm (3/16") Standard Clip | Spec: 3/16 | Weight: 0.0136 | A: 13 | C: 16 | D: 10-24 | E: 13 | F: 26 | G: 24 | B: 15 | ||
| 560-0434 | — | KBC | 6.4mm (1/4") Standard Clip | Spec: 1/4 | Weight: 0.236 | A: 28 | C: 20 | D: 1/4-20 | E: 15 | F: 32 | G: 31 | B: 18 | ||
| 560-0443 | — | KBC | 7.9mm (5/16") Standard Clip | Spec: 5/16 | Weight: 0.0268 | A: 18 | C: 22 | D: 5/16-18 | E: 16 | F: 35 | G: 34 | B: 20 | ||
| 560-0452 | — | KBC | 9.5mm (3/8'), Standard Clip | Spec: 3/8 | Weight: 0.045 | A: 22 | C: 27 | D: 3/8-16 | E: 22 | F: 42 | G: 42 | B: 22 | ||
| 560-0461 | — | KBC | 13mm (1/2") General Clip | Spec: 1/2 | Weight: 0.079 | A: 27 | C: 35 | D: 7/16-14 | E: 23 | F: 49 | G: 54 | B: 26 | ||
| 560-0470 | — | KBC | 16mm (5/8") General Clip | Spec: 5/8 | Weight: 0.11 | A: 33 | C: 40 | D: 1/2-13 | E: 28 | F: 57 | G: 59 | B: 28 | ||
| 560-0489 | — | KBC | 19mm (3/4'), Standard Clip | Spec: 3/4 | Weight: 0.16 | A: 34 | C: 42 | D: 9/16-12 | E: 34 | F: 61 | G: 68 | B: 32 | ||
| 560-0498 | — | KBC | 22mm (7/8") Standard Clip | Spec: 7/8 | Weight: 0.24 | A: 41 | C: 46 | D: 5/8-11 | E: 38 | F: 71 | G: 78 | B: 37 | ||
| 560-0504 | — | KBC | 25mm (1') Standard Clip | Spec: 1 | Weight: 0.3 | A: 45 | C: 55 | D: 5/8-11 | E: 43 | F: 77 | G: 87 | B: 42 |
