Snap Ring
KNIPEX

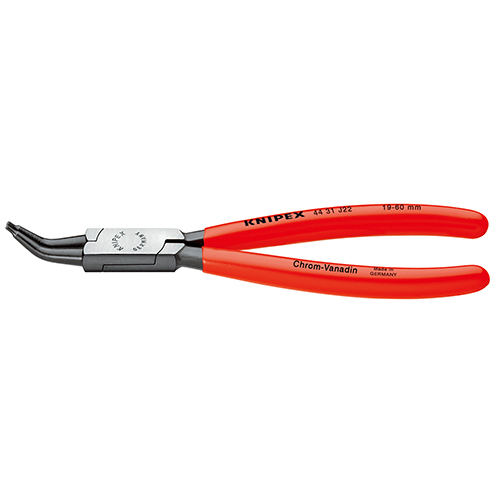

KNIPEX — Circlip Plier 44 31 Series (Internal 45°)
Family ID: 215-6358
KNIPEX 44 31 series circlip plier for internal rings — 45° tip. For fitting snap rings in bore holes. Non-slip 45° tip. Chrome vanadium steel. Oil hardened. Available: 44 31 J02 (8–13mm) / 44 31 J22 (19–60mm) / 44 31 J32 (40–100mm) / 44 31 J42 (85–140mm). Origin: Germany.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 215-6358 | Internal circlip plier, 45° tip. For snap rings in bore holes. | KNIPEX | Model: 44 31 J02 | Length: 140mm | Tip: 0.9mm | Range: 8–13mm | ||
| 215-6367 | Internal circlip plier, 45° tip. For snap rings in bore holes. | KNIPEX | Model: 44 31 J22 | Length: 180mm | Tip: 1.8mm | Range: 19–60mm | ||
| 215-6376 | Internal circlip plier, 45° tip. For snap rings in bore holes. | KNIPEX | Model: 44 31 J32 | Length: 195mm | Tip: 2.3mm | Range: 40–100mm | ||
| 215-6385 | Internal circlip plier, 45° tip. For snap rings in bore holes. | KNIPEX | Model: 44 31 J42 | Length: 310mm | Tip: 3.2mm | Range: 85–140mm |
