Snap Ring
KNIPEX

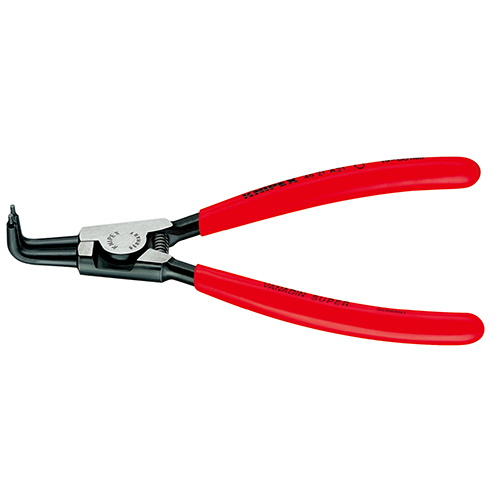

KNIPEX — Circlip Plier 46 21 Series (External 90°)
Family ID: 215-6437
KNIPEX 46 21 series circlip plier for external rings — 90° tip. For inserting snap rings on shafts, dia. 3–140mm. Non-slip 90° tip. Chrome vanadium steel. Oil hardened. Available: 46 21 A01 SB (3–10mm) / 46 21 A11 SB (10–25mm) / 46 21 A21 SB (19–60mm) / 46 21 A31 SB (40–100mm) / 46 21 A41 SB (85–140mm). Origin: Germany.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 215-6437 | External circlip plier, 90° tip. For snap rings on shafts. | KNIPEX | Model: 46 21 A01 SB | Length: 125mm | Tip: 0.9mm | Range: 3–10mm | ||
| 215-7728 | External circlip plier, 90° tip. For snap rings on shafts. | KNIPEX | Model: 46 21 A11 SB | Length: 125mm | Tip: 1.3mm | Range: 10–25mm | ||
| 215-6446 | External circlip plier, 90° tip. For snap rings on shafts. | KNIPEX | Model: 46 21 A21 SB | Length: 170mm | Tip: 1.8mm | Range: 19–60mm | ||
| 215-6455 | External circlip plier, 90° tip. For snap rings on shafts. | KNIPEX | Model: 46 21 A31 SB | Length: 200mm | Tip: 2.3mm | Range: 40–100mm | ||
| 215-6464 | External circlip plier, 90° tip. For snap rings on shafts. | KNIPEX | Model: 46 21 A41 SB | Length: 320mm | Tip: 3.2mm | Range: 85–140mm |
