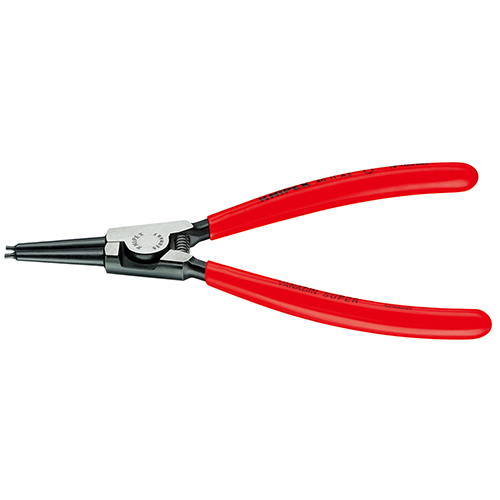

KNIPEX — Circlip Plier 46 11 Series (External Straight)
Family ID: 215-6394
KNIPEX 46 11 series circlip plier for external rings — straight tip. For inserting snap rings on shafts, dia. 3–140mm. Non-slip tip. Chrome vanadium steel. Oil hardened. Available: 46 11 A0 SB (3–10mm) / 46 11 A1 SB (10–25mm) / 46 11 A2 SB (19–60mm) / 46 11 A3 SB (40–100mm) / 46 11 A4 SB (85–140mm). Origin: Germany.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 215-6394 | External circlip plier, straight tip. For snap rings on shafts. | KNIPEX | Model: 46 11 A0 SB | Length: 140mm | Tip: 0.9mm | Range: 3–10mm | ||
| 215-7719 | External circlip plier, straight tip. For snap rings on shafts. | KNIPEX | Model: 46 11 A1 SB | Length: 140mm | Tip: 1.3mm | Range: 10–25mm | ||
| 215-6400 | External circlip plier, straight tip. For snap rings on shafts. | KNIPEX | Model: 46 11 A2 SB | Length: 180mm | Tip: 1.8mm | Range: 19–60mm | ||
| 215-6419 | External circlip plier, straight tip. For snap rings on shafts. | KNIPEX | Model: 46 11 A3 SB | Length: 210mm | Tip: 2.3mm | Range: 40–100mm | ||
| 215-6428 | External circlip plier, straight tip. For snap rings on shafts. | KNIPEX | Model: 46 11 A4 SB | Length: 320mm | Tip: 3.2mm | Range: 85–140mm |
