![[LS ELECTRIC] — Mini MC-6M Standard Magnetic Contactor (6A AC-3, Screw, DC Standard 3W)](https://img.prosourcemro.com/2026/04/001-1510.png)
Magnetic Contactors
LS ELECTRIC

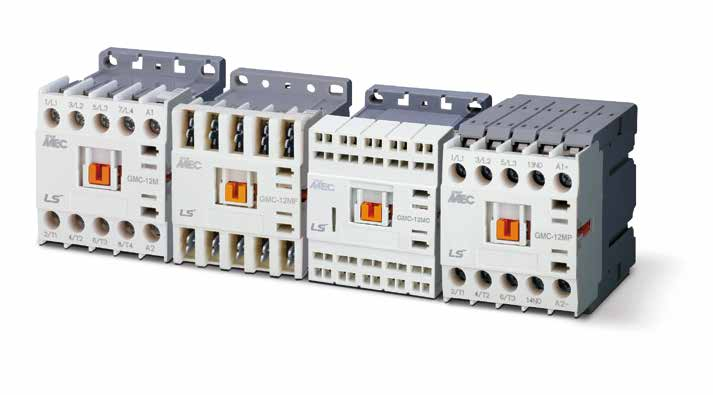

[LS ELECTRIC] — Mini MC-6M Standard Magnetic Contactor (6A AC-3, Screw, DC Standard 3W)
Family ID: LSE-MINI-MC-6M-SCREW-DC3W
Meta-MEC Mini Magnetic Contactor MC-6M, Screw terminals, DC Standard 3W coil (3W consumption). 1.5kW @ 220-240V / 2.2kW @ 380-440V. 3-pole and 4-pole variants. Compliant with IEC 60947-4, K 60947, UL 508. KEMA Type Tested. Certifications: UL, CE, CCC, KS.
36 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| GMD-6M/DC12-3/10 | Mini MC-6M, Screw, DC12V, 1a NO | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC12V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1a NO | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/DC12-3/01 | Mini MC-6M, Screw, DC12V, 1b NC | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC12V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b NC | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/4/DC12-3 | Mini MC-6M/4 (4NO), Screw, DC12V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC12V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/4/DC12-3/2A2B | Mini MC-6M/4 (2NO+2NC), Screw, DC12V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC12V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/DC24-3/10 | Mini MC-6M, Screw, DC24V, 1a NO | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC24V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1a NO | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/DC24-3/01 | Mini MC-6M, Screw, DC24V, 1b NC | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC24V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b NC | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/4/DC24-3 | Mini MC-6M/4 (4NO), Screw, DC24V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC24V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/4/DC24-3/2A2B | Mini MC-6M/4 (2NO+2NC), Screw, DC24V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC24V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/DC36-3/10 | Mini MC-6M, Screw, DC36V, 1a NO | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC36V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1a NO | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/DC36-3/01 | Mini MC-6M, Screw, DC36V, 1b NC | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC36V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b NC | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/4/DC36-3 | Mini MC-6M/4 (4NO), Screw, DC36V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC36V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/4/DC36-3/2A2B | Mini MC-6M/4 (2NO+2NC), Screw, DC36V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC36V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/DC48-3/10 | Mini MC-6M, Screw, DC48V, 1a NO | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC48V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1a NO | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/DC48-3/01 | Mini MC-6M, Screw, DC48V, 1b NC | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC48V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b NC | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/4/DC48-3 | Mini MC-6M/4 (4NO), Screw, DC48V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC48V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/4/DC48-3/2A2B | Mini MC-6M/4 (2NO+2NC), Screw, DC48V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC48V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/DC110-3/10 | Mini MC-6M, Screw, DC110V, 1a NO | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC110V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1a NO | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/DC110-3/01 | Mini MC-6M, Screw, DC110V, 1b NC | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC110V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b NC | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/4/DC110-3 | Mini MC-6M/4 (4NO), Screw, DC110V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC110V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/4/DC110-3/2A2B | Mini MC-6M/4 (2NO+2NC), Screw, DC110V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC110V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/DC120-3/10 | Mini MC-6M, Screw, DC120V, 1a NO | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC120V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1a NO | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/DC120-3/01 | Mini MC-6M, Screw, DC120V, 1b NC | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC120V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b NC | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/4/DC120-3 | Mini MC-6M/4 (4NO), Screw, DC120V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC120V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/4/DC120-3/2A2B | Mini MC-6M/4 (2NO+2NC), Screw, DC120V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC120V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/DC220-3/10 | Mini MC-6M, Screw, DC220V, 1a NO | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC220V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1a NO | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/DC220-3/01 | Mini MC-6M, Screw, DC220V, 1b NC | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC220V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b NC | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/4/DC220-3 | Mini MC-6M/4 (4NO), Screw, DC220V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC220V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/4/DC220-3/2A2B | Mini MC-6M/4 (2NO+2NC), Screw, DC220V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC220V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/DC240-3/10 | Mini MC-6M, Screw, DC240V, 1a NO | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC240V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1a NO | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/DC240-3/01 | Mini MC-6M, Screw, DC240V, 1b NC | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC240V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b NC | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/4/DC240-3 | Mini MC-6M/4 (4NO), Screw, DC240V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC240V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/4/DC240-3/2A2B | Mini MC-6M/4 (2NO+2NC), Screw, DC240V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC240V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/DC250-3/10 | Mini MC-6M, Screw, DC250V, 1a NO | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC250V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1a NO | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/DC250-3/01 | Mini MC-6M, Screw, DC250V, 1b NC | LS ELECTRIC | Pole: 3-Pole | Frame: MC-6M | Rated Current AC-3: 6A | Coil: DC250V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Aux Contact: 1b NC | Capacity: 1.5kW@220V / 2.2kW@440V | ||
| GMD-6M/4/DC250-3 | Mini MC-6M/4 (4NO), Screw, DC250V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 4 NO | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC250V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant | ||
| GMD-6M/4/DC250-3/2A2B | Mini MC-6M/4 (2NO+2NC), Screw, DC250V | LS ELECTRIC | Pole: 4-Pole | Main Contact: 2 NO + 2 NC | Frame: MC-6M/4 | Rated Current AC-3: 6A | Coil: DC250V | Coil Power: 3W | Frequency: DC | Terminal: Screw | Note: No aux contacts on 4-pole variant |
