Inverters (VFD)
MITSUBISHI ELECTRIC

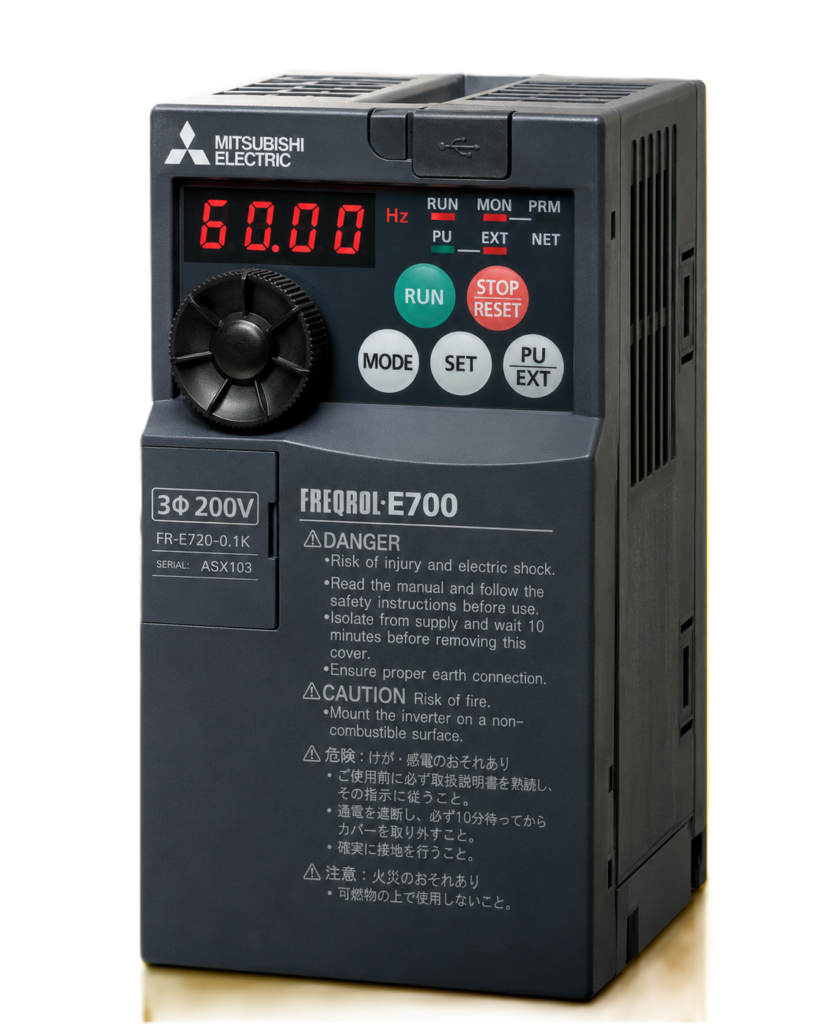

[MITSUBISHI ELECTRIC] — FREQROL-E700 3-Phase 200V VFD (Standard FM terminal, 0.1–15kW)
Family ID: MEL-FRE700-E720-STD
Mitsubishi FREQROL-E700 3-phase 200V compact VFD, 0.1–15kW. Standard FM terminal. Advanced magnetic flux vector control with 200%/0.5Hz starting torque (≤3.7K). UL/cUL/CE compliant.
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| FR-E720-0.1K | FR-E720-0.1K Standard FM terminal, 0.1kW | MITSUBISHI ELECTRIC | Applied Motor: 0.1 kW · Rated Capacity: 0.3 kVA · Rated Current: 0.8 A (0.8 A at 2kHz+ low-noise PWM) · Overload Current: 150% 60s, 200% 3s (inverse-time) · Output Voltage: 3-Phase 200-240V · Regenerative Torque: 150% · Input: 3-phase 200-240V 50/60Hz · Input Voltage Range: 170-264V (DC240-373V) · Frequency Tolerance: ±5% · Power Supply Capacity: 0.4 kVA · Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation · Max Frequency: 400 Hz · PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) · Brake Transistor: None (no brake resistor connection) · Cooling: Self-cooled · Protection Structure: IP20 (enclosed) · Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) · Safety Function: — · Standards: UL, cUL, CE · Mass: 0.5 kg · Spec Type: Standard FM terminal | ||
| FR-E720-0.2K | FR-E720-0.2K Standard FM terminal, 0.2kW | MITSUBISHI ELECTRIC | Applied Motor: 0.2 kW · Rated Capacity: 0.6 kVA · Rated Current: 1.5 A (1.4 A at 2kHz+ low-noise PWM) · Overload Current: 150% 60s, 200% 3s (inverse-time) · Output Voltage: 3-Phase 200-240V · Regenerative Torque: 150% · Input: 3-phase 200-240V 50/60Hz · Input Voltage Range: 170-264V (DC240-373V) · Frequency Tolerance: ±5% · Power Supply Capacity: 0.8 kVA · Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation · Max Frequency: 400 Hz · PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) · Brake Transistor: None (no brake resistor connection) · Cooling: Self-cooled · Protection Structure: IP20 (enclosed) · Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) · Safety Function: — · Standards: UL, cUL, CE · Mass: 0.5 kg · Spec Type: Standard FM terminal | ||
| FR-E720-0.4K | FR-E720-0.4K Standard FM terminal, 0.4kW | MITSUBISHI ELECTRIC | Applied Motor: 0.4 kW · Rated Capacity: 1.2 kVA · Rated Current: 3 A (2.5 A at 2kHz+ low-noise PWM) · Overload Current: 150% 60s, 200% 3s (inverse-time) · Output Voltage: 3-Phase 200-240V · Regenerative Torque: 100% · Input: 3-phase 200-240V 50/60Hz · Input Voltage Range: 170-264V (DC240-373V) · Frequency Tolerance: ±5% · Power Supply Capacity: 1.5 kVA · Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation · Max Frequency: 400 Hz · PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) · Brake Transistor: Built-in (0.4K and above) · Cooling: Self-cooled · Protection Structure: IP20 (enclosed) · Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) · Safety Function: — · Standards: UL, cUL, CE · Mass: 0.7 kg · Spec Type: Standard FM terminal | ||
| FR-E720-0.75K | FR-E720-0.75K Standard FM terminal, 0.75kW | MITSUBISHI ELECTRIC | Applied Motor: 0.75 kW · Rated Capacity: 2.0 kVA · Rated Current: 5 A (4.1 A at 2kHz+ low-noise PWM) · Overload Current: 150% 60s, 200% 3s (inverse-time) · Output Voltage: 3-Phase 200-240V · Regenerative Torque: 100% · Input: 3-phase 200-240V 50/60Hz · Input Voltage Range: 170-264V (DC240-373V) · Frequency Tolerance: ±5% · Power Supply Capacity: 2.5 kVA · Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation · Max Frequency: 400 Hz · PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) · Brake Transistor: Built-in (0.4K and above) · Cooling: Self-cooled · Protection Structure: IP20 (enclosed) · Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) · Safety Function: — · Standards: UL, cUL, CE · Mass: 1.0 kg · Spec Type: Standard FM terminal | ||
| FR-E720-1.5K | FR-E720-1.5K Standard FM terminal, 1.5kW | MITSUBISHI ELECTRIC | Applied Motor: 1.5 kW · Rated Capacity: 3.2 kVA · Rated Current: 8 A (7 A at 2kHz+ low-noise PWM) · Overload Current: 150% 60s, 200% 3s (inverse-time) · Output Voltage: 3-Phase 200-240V · Regenerative Torque: 50% · Input: 3-phase 200-240V 50/60Hz · Input Voltage Range: 170-264V (DC240-373V) · Frequency Tolerance: ±5% · Power Supply Capacity: 4.5 kVA · Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation · Max Frequency: 400 Hz · PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) · Brake Transistor: Built-in (0.4K and above) · Cooling: Forced air · Protection Structure: IP20 (enclosed) · Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) · Safety Function: — · Standards: UL, cUL, CE · Mass: 1.4 kg · Spec Type: Standard FM terminal | ||
| FR-E720-2.2K | FR-E720-2.2K Standard FM terminal, 2.2kW | MITSUBISHI ELECTRIC | Applied Motor: 2.2 kW · Rated Capacity: 4.4 kVA · Rated Current: 11 A (10 A at 2kHz+ low-noise PWM) · Overload Current: 150% 60s, 200% 3s (inverse-time) · Output Voltage: 3-Phase 200-240V · Regenerative Torque: 20% · Input: 3-phase 200-240V 50/60Hz · Input Voltage Range: 170-264V (DC240-373V) · Frequency Tolerance: ±5% · Power Supply Capacity: 5.5 kVA · Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation · Max Frequency: 400 Hz · PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) · Brake Transistor: Built-in (0.4K and above) · Cooling: Forced air · Protection Structure: IP20 (enclosed) · Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) · Safety Function: — · Standards: UL, cUL, CE · Mass: 1.4 kg · Spec Type: Standard FM terminal | ||
| FR-E720-3.7K | FR-E720-3.7K Standard FM terminal, 3.7kW | MITSUBISHI ELECTRIC | Applied Motor: 3.7 kW · Rated Capacity: 7.0 kVA · Rated Current: 17.5 A (16.5 A at 2kHz+ low-noise PWM) · Overload Current: 150% 60s, 200% 3s (inverse-time) · Output Voltage: 3-Phase 200-240V · Regenerative Torque: 20% · Input: 3-phase 200-240V 50/60Hz · Input Voltage Range: 170-264V (DC240-373V) · Frequency Tolerance: ±5% · Power Supply Capacity: 9 kVA · Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation · Max Frequency: 400 Hz · PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) · Brake Transistor: Built-in (0.4K and above) · Cooling: Forced air · Protection Structure: IP20 (enclosed) · Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) · Safety Function: — · Standards: UL, cUL, CE · Mass: 1.7 kg · Spec Type: Standard FM terminal | ||
| FR-E720-5.5K | FR-E720-5.5K Standard FM terminal, 5.5kW | MITSUBISHI ELECTRIC | Applied Motor: 5.5 kW · Rated Capacity: 9.5 kVA · Rated Current: 24 A (23 A at 2kHz+ low-noise PWM) · Overload Current: 150% 60s, 200% 3s (inverse-time) · Output Voltage: 3-Phase 200-240V · Regenerative Torque: 20% · Input: 3-phase 200-240V 50/60Hz · Input Voltage Range: 170-264V (DC240-373V) · Frequency Tolerance: ±5% · Power Supply Capacity: 12 kVA · Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation · Max Frequency: 400 Hz · PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) · Brake Transistor: Built-in (0.4K and above) · Cooling: Forced air · Protection Structure: IP20 (enclosed) · Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) · Safety Function: — · Standards: UL, cUL, CE · Mass: 4.3 kg · Spec Type: Standard FM terminal | ||
| FR-E720-7.5K | FR-E720-7.5K Standard FM terminal, 7.5kW | MITSUBISHI ELECTRIC | Applied Motor: 7.5 kW · Rated Capacity: 13.1 kVA · Rated Current: 33 A (31 A at 2kHz+ low-noise PWM) · Overload Current: 150% 60s, 200% 3s (inverse-time) · Output Voltage: 3-Phase 200-240V · Regenerative Torque: 20% · Input: 3-phase 200-240V 50/60Hz · Input Voltage Range: 170-264V (DC240-373V) · Frequency Tolerance: ±5% · Power Supply Capacity: 17 kVA · Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation · Max Frequency: 400 Hz · PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) · Brake Transistor: Built-in (0.4K and above) · Cooling: Forced air · Protection Structure: IP20 (enclosed) · Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) · Safety Function: — · Standards: UL, cUL, CE · Mass: 4.3 kg · Spec Type: Standard FM terminal | ||
| FR-E720-11K | FR-E720-11K Standard FM terminal, 11kW | MITSUBISHI ELECTRIC | Applied Motor: 11 kW · Rated Capacity: 18.7 kVA · Rated Current: 47 A (44 A at 2kHz+ low-noise PWM) · Overload Current: 150% 60s, 200% 3s (inverse-time) · Output Voltage: 3-Phase 200-240V · Regenerative Torque: 20% · Input: 3-phase 200-240V 50/60Hz · Input Voltage Range: 170-264V (DC240-373V) · Frequency Tolerance: ±5% · Power Supply Capacity: 20 kVA · Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation · Max Frequency: 400 Hz · PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) · Brake Transistor: Built-in (0.4K and above) · Cooling: Forced air · Protection Structure: IP20 (enclosed) · Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) · Safety Function: — · Standards: UL, cUL, CE · Mass: 6.5 kg · Spec Type: Standard FM terminal | ||
| FR-E720-15K | FR-E720-15K Standard FM terminal, 15kW | MITSUBISHI ELECTRIC | Applied Motor: 15 kW · Rated Capacity: 23.9 kVA · Rated Current: 60 A (57 A at 2kHz+ low-noise PWM) · Overload Current: 150% 60s, 200% 3s (inverse-time) · Output Voltage: 3-Phase 200-240V · Regenerative Torque: 20% · Input: 3-phase 200-240V 50/60Hz · Input Voltage Range: 170-264V (DC240-373V) · Frequency Tolerance: ±5% · Power Supply Capacity: 28 kVA · Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation · Max Frequency: 400 Hz · PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) · Brake Transistor: Built-in (0.4K and above) · Cooling: Forced air · Protection Structure: IP20 (enclosed) · Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) · Safety Function: — · Standards: UL, cUL, CE · Mass: 6.5 kg · Spec Type: Standard FM terminal |
