Inverters (VFD)
MITSUBISHI ELECTRIC

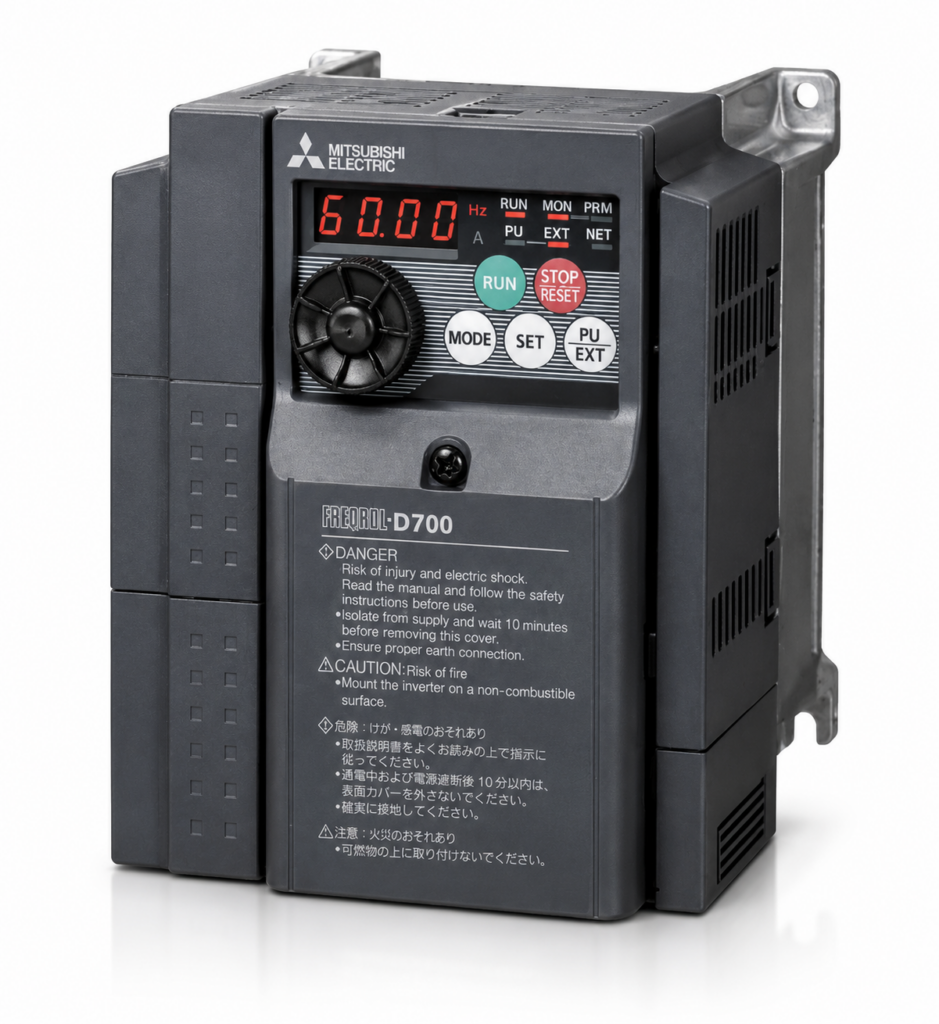

[MITSUBISHI ELECTRIC] — FREQROL FR-D710W Single-Phase 100V Compact Inverter (0.1-0.75kW)
Family ID: MEL-FRD700-D710W
Mitsubishi FREQROL FR-D710W general-purpose inverter (VFD), Single-Phase 100V input, 0.1-0.75kW (3-phase 200-230V output). Spring-clamp control terminals, 150% 60s / 200% 0.5s overload, IP20.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| FR-D710W-0.1K | FR-D710W single-phase 100v inverter, 0.1kW, FM terminal | MITSUBISHI ELECTRIC | Applied Motor: 0.1 kW · Rated Capacity: 0.3 kVA · Rated Current: 0.8 A · Input Power: Single-phase 100-115V 50/60Hz · Output Voltage: 3-phase 200-230V · Regen Braking Torque: 150% · Output Monitor: FM terminal (pulse train output) · Cooling: Self-cooling · Weight: 0.6 kg | ||
| FR-D710W-0.2K | FR-D710W single-phase 100v inverter, 0.2kW, FM terminal | MITSUBISHI ELECTRIC | Applied Motor: 0.2 kW · Rated Capacity: 0.6 kVA · Rated Current: 1.4 A · Input Power: Single-phase 100-115V 50/60Hz · Output Voltage: 3-phase 200-230V · Regen Braking Torque: 150% · Output Monitor: FM terminal (pulse train output) · Cooling: Self-cooling · Weight: 0.7 kg | ||
| FR-D710W-0.4K | FR-D710W single-phase 100v inverter, 0.4kW, FM terminal | MITSUBISHI ELECTRIC | Applied Motor: 0.4 kW · Rated Capacity: 1.0 kVA · Rated Current: 2.5 A · Input Power: Single-phase 100-115V 50/60Hz · Output Voltage: 3-phase 200-230V · Regen Braking Torque: 100% · Output Monitor: FM terminal (pulse train output) · Cooling: Self-cooling · Weight: 0.9 kg | ||
| FR-D710W-0.75K | FR-D710W single-phase 100v inverter, 0.75kW, FM terminal | MITSUBISHI ELECTRIC | Applied Motor: 0.75 kW · Rated Capacity: 1.7 kVA · Rated Current: 4.2 A · Input Power: Single-phase 100-115V 50/60Hz · Output Voltage: 3-phase 200-230V · Regen Braking Torque: 100% · Output Monitor: FM terminal (pulse train output) · Cooling: Self-cooling · Weight: 1.4 kg |
