![[MITSUBISHI ELECTRIC] — GM-DYPMB Hypoid Right-Angle Geared Motor (3.7-11kW, Foot Mount, Brake, SF1.4)](https://img.prosourcemro.com/2026/07/0707-9-1-1024x1024.png)
Geared Motors
MITSUBISHI ELECTRIC

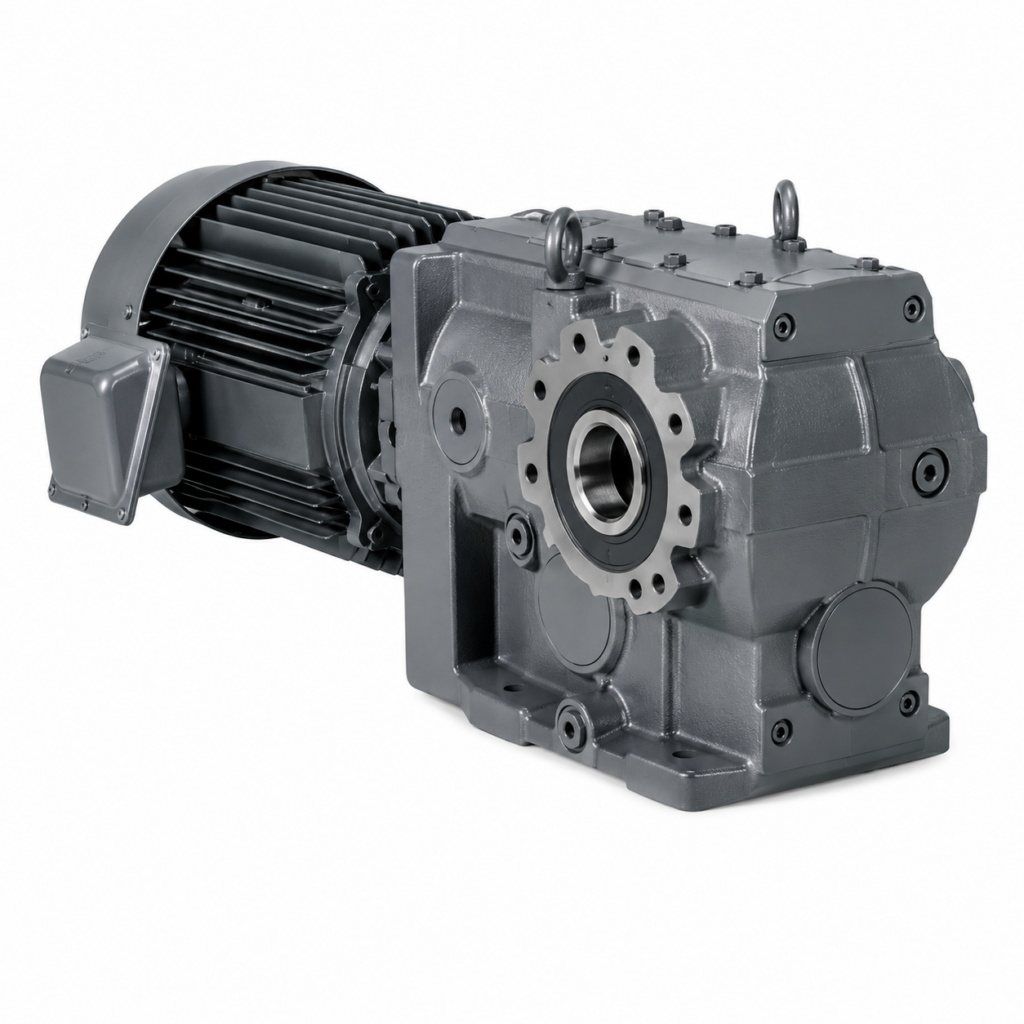

[MITSUBISHI ELECTRIC] — GM-DYPMB Hypoid Right-Angle Geared Motor (3.7-11kW, Foot Mount, Brake, SF1.4)
Family ID: MEL-GM-DYP-FOOT-B
Mitsubishi Electric GM-DYPMB large-frame hypoid right-angle geared motor, 3.7 to 11kW, foot mount, service factor 1.4. Reduction ratios 1/15 to 1/100 with output speeds 18 to 120 r/min at 60Hz. Heavy-duty hypoid gearing for high-torque right-angle drives in conveyors, mixers and process machinery. 3-phase 200/200/220V (400/400/440V option), 4-pole, oil-lubricated, insulation class 130(B), hollow output shaft, IP44 indoor, horizontal installation. Built-in brake (low-noise type 3.7-7.5kW, long-life type 11kW) for load holding. Solid output shaft (R) and outdoor variants available on request. Ships without oil; fill recommended lubricant.
29 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| GM-DYPMB 3.7kW 1/15 | GM-DYPMB 3.7kW 1/15, foot mount, hollow shaft, gear size 34, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 3.7kW · Reduction Ratio: 1/15 · Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 34 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 3.7kW 1/20 | GM-DYPMB 3.7kW 1/20, foot mount, hollow shaft, gear size 34, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 3.7kW · Reduction Ratio: 1/20 · Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 34 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 3.7kW 1/25 | GM-DYPMB 3.7kW 1/25, foot mount, hollow shaft, gear size 44, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 3.7kW · Reduction Ratio: 1/25 · Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 44 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 3.7kW 1/30 | GM-DYPMB 3.7kW 1/30, foot mount, hollow shaft, gear size 44, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 3.7kW · Reduction Ratio: 1/30 · Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 44 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 3.7kW 1/40 | GM-DYPMB 3.7kW 1/40, foot mount, hollow shaft, gear size 44, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 3.7kW · Reduction Ratio: 1/40 · Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 44 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 3.7kW 1/50 | GM-DYPMB 3.7kW 1/50, foot mount, hollow shaft, gear size 44, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 3.7kW · Reduction Ratio: 1/50 · Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 44 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 3.7kW 1/60 | GM-DYPMB 3.7kW 1/60, foot mount, hollow shaft, gear size 44, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 3.7kW · Reduction Ratio: 1/60 · Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 44 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 3.7kW 1/80 | GM-DYPMB 3.7kW 1/80, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 3.7kW · Reduction Ratio: 1/80 · Output Speed: 22.5 r/min (60Hz) / 18.8 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 3.7kW 1/100 | GM-DYPMB 3.7kW 1/100, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 3.7kW · Reduction Ratio: 1/100 · Output Speed: 18 r/min (60Hz) / 15 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 5.5kW 1/15 | GM-DYPMB 5.5kW 1/15, foot mount, hollow shaft, gear size 44, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 5.5kW · Reduction Ratio: 1/15 · Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 44 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 5.5kW 1/20 | GM-DYPMB 5.5kW 1/20, foot mount, hollow shaft, gear size 44, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 5.5kW · Reduction Ratio: 1/20 · Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 44 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 5.5kW 1/25 | GM-DYPMB 5.5kW 1/25, foot mount, hollow shaft, gear size 44, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 5.5kW · Reduction Ratio: 1/25 · Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 44 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 5.5kW 1/30 | GM-DYPMB 5.5kW 1/30, foot mount, hollow shaft, gear size 44, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 5.5kW · Reduction Ratio: 1/30 · Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 44 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 5.5kW 1/40 | GM-DYPMB 5.5kW 1/40, foot mount, hollow shaft, gear size 44, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 5.5kW · Reduction Ratio: 1/40 · Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 44 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 5.5kW 1/50 | GM-DYPMB 5.5kW 1/50, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 5.5kW · Reduction Ratio: 1/50 · Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 5.5kW 1/60 | GM-DYPMB 5.5kW 1/60, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 5.5kW · Reduction Ratio: 1/60 · Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 5.5kW 1/80 | GM-DYPMB 5.5kW 1/80, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 5.5kW · Reduction Ratio: 1/80 · Output Speed: 22.5 r/min (60Hz) / 18.8 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 7.5kW 1/15 | GM-DYPMB 7.5kW 1/15, foot mount, hollow shaft, gear size 44, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 7.5kW · Reduction Ratio: 1/15 · Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 44 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 7.5kW 1/20 | GM-DYPMB 7.5kW 1/20, foot mount, hollow shaft, gear size 44, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 7.5kW · Reduction Ratio: 1/20 · Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 44 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 7.5kW 1/25 | GM-DYPMB 7.5kW 1/25, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 7.5kW · Reduction Ratio: 1/25 · Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 7.5kW 1/30 | GM-DYPMB 7.5kW 1/30, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 7.5kW · Reduction Ratio: 1/30 · Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 7.5kW 1/40 | GM-DYPMB 7.5kW 1/40, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 7.5kW · Reduction Ratio: 1/40 · Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 7.5kW 1/50 | GM-DYPMB 7.5kW 1/50, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 7.5kW · Reduction Ratio: 1/50 · Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 7.5kW 1/60 | GM-DYPMB 7.5kW 1/60, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in low-noise type · Output: 7.5kW · Reduction Ratio: 1/60 · Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 11kW 1/15 | GM-DYPMB 11kW 1/15, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in long-life type · Output: 11kW · Reduction Ratio: 1/15 · Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 11kW 1/20 | GM-DYPMB 11kW 1/20, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in long-life type · Output: 11kW · Reduction Ratio: 1/20 · Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 11kW 1/25 | GM-DYPMB 11kW 1/25, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in long-life type · Output: 11kW · Reduction Ratio: 1/25 · Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 11kW 1/30 | GM-DYPMB 11kW 1/30, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in long-life type · Output: 11kW · Reduction Ratio: 1/30 · Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GM-DYPMB 11kW 1/40 | GM-DYPMB 11kW 1/40, foot mount, hollow shaft, gear size 54, brake | MITSUBISHI ELECTRIC | Series: GM-DYP · Type: Right-Angle Hypoid (large frame) · Service Factor: 1.4 · Shaft: Hollow shaft (standard); solid (R) on request · Mount: Foot mount · Brake: Built-in long-life type · Output: 11kW · Reduction Ratio: 1/40 · Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option · Gear Size: 54 · Lubrication: Oil (ships without oil; fill recommended lubricant) · Installation: Horizontal · Protection: IP44 (indoor) · Availability: Made-to-order |
