Sensorless Servo Geared Motors
MITSUBISHI ELECTRIC

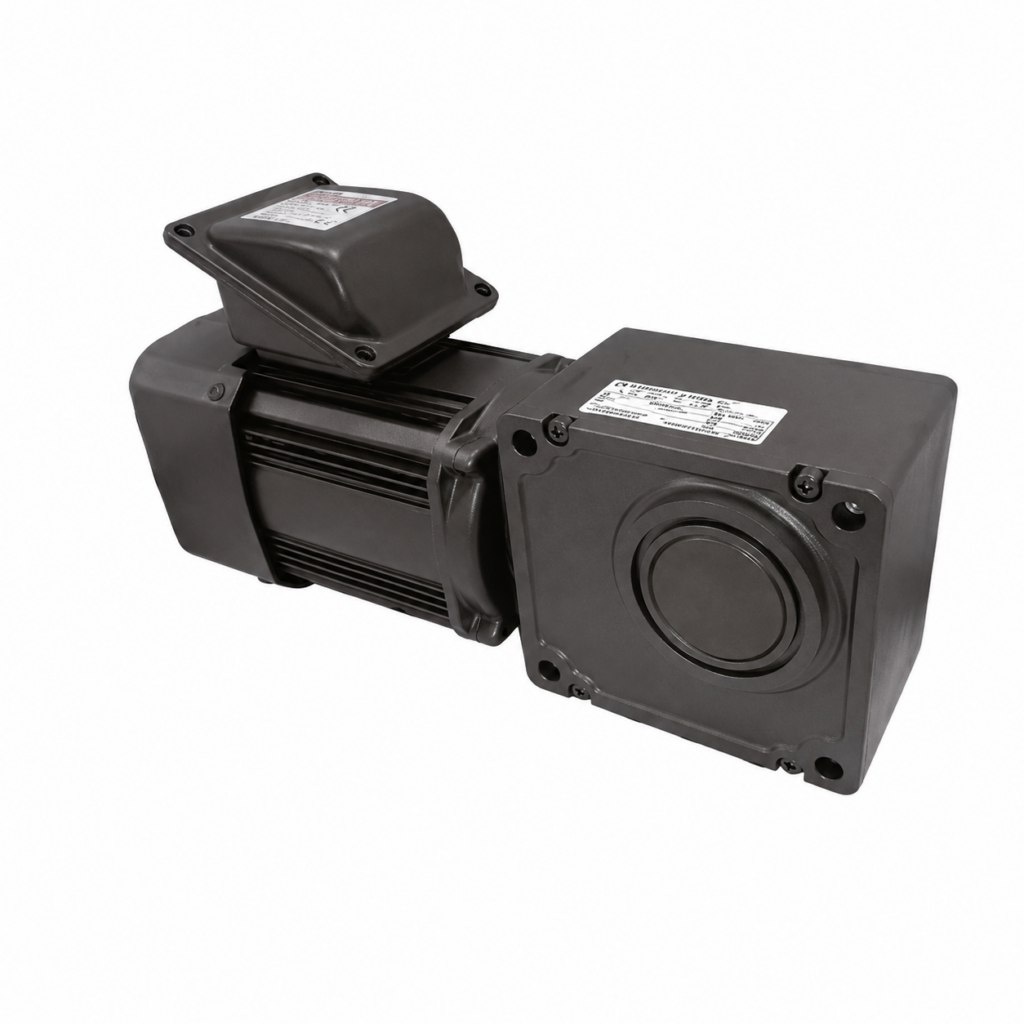

[MITSUBISHI ELECTRIC] — GV-SHYF 2.2kW S-PM Sensorless Servo Right-Angle Geared Motor (Hypoid)
Family ID: MEL-GV-SHYF-22
Mitsubishi Electric GV-SHYF 2.2kW S-PM sensorless servo hypoid right-angle geared motor, hollow shaft with flange/face-common mounting. Permanent-magnet motor with PM sensorless vector control for wide constant-torque control. Nominal reduction ratios 1/5 to 1/200 with permissible output torque 30 to 1120 Nm. Motor rated 3000 r/min, 6P, insulation 130(B), grease-lubricated, IP44 indoor. Requires a matching S-PM drive unit (3-phase 200-240V input; cannot be connected directly to commercial power).
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| GV-SHYF 2.2kW 1/5 | GV-SHYF 2.2kW 1/5, hollow shaft flange/face mount, 30Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/5 · Actual Ratio: 1/4.89 · Output Speed: 600 r/min (motor 3000 r/min) · Permissible Output Torque: 30 Nm · Permissible Overhang Load: 3450 N · Permissible Thrust Load: 694 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/7 | GV-SHYF 2.2kW 1/7, hollow shaft flange/face mount, 44Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/7 · Actual Ratio: 1/7.26 · Output Speed: 428.6 r/min (motor 3000 r/min) · Permissible Output Torque: 44 Nm · Permissible Overhang Load: 3850 N · Permissible Thrust Load: 770 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/10 | GV-SHYF 2.2kW 1/10, hollow shaft flange/face mount, 59Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/10 · Actual Ratio: 1/9.39 · Output Speed: 300 r/min (motor 3000 r/min) · Permissible Output Torque: 59 Nm · Permissible Overhang Load: 3950 N · Permissible Thrust Load: 790 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/12 | GV-SHYF 2.2kW 1/12, hollow shaft flange/face mount, 79Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/12 · Actual Ratio: 1/12.50 · Output Speed: 250 r/min (motor 3000 r/min) · Permissible Output Torque: 79 Nm · Permissible Overhang Load: 4300 N · Permissible Thrust Load: 860 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/15 | GV-SHYF 2.2kW 1/15, hollow shaft flange/face mount, 95Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/15 · Actual Ratio: 1/15.04 · Output Speed: 200 r/min (motor 3000 r/min) · Permissible Output Torque: 95 Nm · Permissible Overhang Load: 4550 N · Permissible Thrust Load: 896 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/20 | GV-SHYF 2.2kW 1/20, hollow shaft flange/face mount, 121Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/20 · Actual Ratio: 1/19.12 · Output Speed: 150 r/min (motor 3000 r/min) · Permissible Output Torque: 121 Nm · Permissible Overhang Load: 4800 N · Permissible Thrust Load: 960 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/25 | GV-SHYF 2.2kW 1/25, hollow shaft flange/face mount, 158Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/25 · Actual Ratio: 1/25.06 · Output Speed: 120 r/min (motor 3000 r/min) · Permissible Output Torque: 158 Nm · Permissible Overhang Load: 5150 N · Permissible Thrust Load: 1030 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/30 | GV-SHYF 2.2kW 1/30, hollow shaft flange/face mount, 182Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/30 · Actual Ratio: 1/28.88 · Output Speed: 100 r/min (motor 3000 r/min) · Permissible Output Torque: 182 Nm · Permissible Overhang Load: 5400 N · Permissible Thrust Load: 1080 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/40 | GV-SHYF 2.2kW 1/40, hollow shaft flange/face mount, 248Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/40 · Actual Ratio: 1/39.38 · Output Speed: 75 r/min (motor 3000 r/min) · Permissible Output Torque: 248 Nm · Permissible Overhang Load: 5500 N · Permissible Thrust Load: 1100 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/50 | GV-SHYF 2.2kW 1/50, hollow shaft flange/face mount, 296Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/50 · Actual Ratio: 1/46.93 · Output Speed: 60 r/min (motor 3000 r/min) · Permissible Output Torque: 296 Nm · Permissible Overhang Load: 5660 N · Permissible Thrust Load: 1132 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/60 | GV-SHYF 2.2kW 1/60, hollow shaft flange/face mount, 368Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/60 · Actual Ratio: 1/58.33 · Output Speed: 50 r/min (motor 3000 r/min) · Permissible Output Torque: 368 Nm · Permissible Overhang Load: 5800 N · Permissible Thrust Load: 1160 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/80 | GV-SHYF 2.2kW 1/80, hollow shaft flange/face mount, 470Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/80 · Actual Ratio: 1/77.08 · Output Speed: 37.5 r/min (motor 3000 r/min) · Permissible Output Torque: 470 Nm · Permissible Overhang Load: 7150 N · Permissible Thrust Load: 1431 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/100 | GV-SHYF 2.2kW 1/100, hollow shaft flange/face mount, 581Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/100 · Actual Ratio: 1/95.34 · Output Speed: 30 r/min (motor 3000 r/min) · Permissible Output Torque: 581 Nm · Permissible Overhang Load: 7150 N · Permissible Thrust Load: 1431 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/120 | GV-SHYF 2.2kW 1/120, hollow shaft flange/face mount, 710Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/120 · Actual Ratio: 1/116.56 · Output Speed: 25 r/min (motor 3000 r/min) · Permissible Output Torque: 710 Nm · Permissible Overhang Load: 7150 N · Permissible Thrust Load: 1431 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/160 | GV-SHYF 2.2kW 1/160, hollow shaft flange/face mount, 927Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/160 · Actual Ratio: 1/152.22 · Output Speed: 18.8 r/min (motor 3000 r/min) · Permissible Output Torque: 927 Nm · Permissible Overhang Load: 8100 N · Permissible Thrust Load: 1620 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SHYF 2.2kW 1/200 | GV-SHYF 2.2kW 1/200, hollow shaft flange/face mount, 1120Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SHY (S-PM sensorless servo) · Type: Right-Angle Hypoid · Shaft: Hollow shaft (standard); solid (RR/RL) on request · Mount: Flange / face mount (common) · Brake: None · Output: 2.2kW · Poles: 6P · Nominal Ratio: 1/200 · Actual Ratio: 1/183.82 · Output Speed: 15 r/min (motor 3000 r/min) · Permissible Output Torque: 1120 Nm · Permissible Overhang Load: 8100 N · Permissible Thrust Load: 1620 N · Motor Rated Voltage: 155V · Motor Rated Current: 9.4A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order |
