Sensorless Servo Geared Motors
MITSUBISHI ELECTRIC

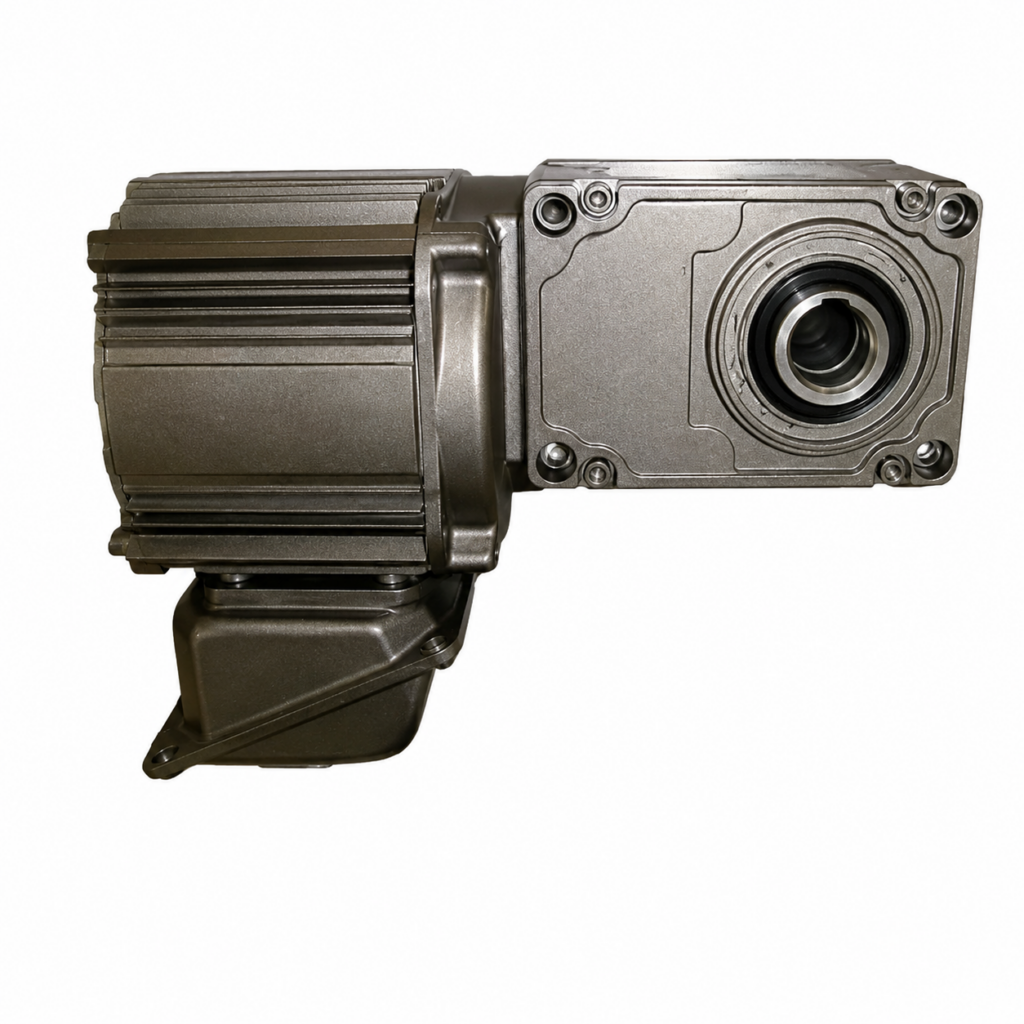

[MITSUBISHI ELECTRIC] — GV-SSYF 0.2kW S-PM Sensorless Servo Right-Angle Geared Motor (Super Heli-Cross)
Family ID: MEL-GV-SSYF-02
Mitsubishi Electric GV-SSYF 0.2kW S-PM sensorless servo super heli-cross right-angle geared motor, hollow shaft with flange/face-common mounting. Permanent-magnet motor with PM sensorless vector control for wide constant-torque control. Nominal reduction ratios 1/7.5 to 1/60 with permissible output torque 3.9 to 28 Nm. Motor rated 3000 r/min, 4P, insulation 130(B), grease-lubricated, IP44 indoor. Requires a matching S-PM drive unit (3-phase 200-240V input; cannot be connected directly to commercial power).
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| GV-SSYF 0.2kW 1/7.5 | GV-SSYF 0.2kW 1/7.5, hollow shaft flange/face mount, 3.9Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SSY (S-PM sensorless servo) · Type: Right-Angle Super Heli-Cross · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Poles: 4P · Nominal Ratio: 1/7.5 · Actual Ratio: 1/7.68 · Output Speed: 400 r/min (motor 3000 r/min) · Permissible Output Torque: 3.9 Nm · Permissible Overhang Load: 900 N · Permissible Thrust Load: 180 N · Motor Rated Voltage: 150V · Motor Rated Current: 1.05A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed non-ventilated (TENV) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SSYF 0.2kW 1/10 | GV-SSYF 0.2kW 1/10, hollow shaft flange/face mount, 5.1Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SSY (S-PM sensorless servo) · Type: Right-Angle Super Heli-Cross · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Poles: 4P · Nominal Ratio: 1/10 · Actual Ratio: 1/10.06 · Output Speed: 300 r/min (motor 3000 r/min) · Permissible Output Torque: 5.1 Nm · Permissible Overhang Load: 950 N · Permissible Thrust Load: N · Motor Rated Voltage: 150V · Motor Rated Current: 1.05A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed non-ventilated (TENV) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SSYF 0.2kW 1/12.5 | GV-SSYF 0.2kW 1/12.5, hollow shaft flange/face mount, 6.6Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SSY (S-PM sensorless servo) · Type: Right-Angle Super Heli-Cross · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Poles: 4P · Nominal Ratio: 1/12.5 · Actual Ratio: 1/12.90 · Output Speed: 240 r/min (motor 3000 r/min) · Permissible Output Torque: 6.6 Nm · Permissible Overhang Load: 1070 N · Permissible Thrust Load: 216 N · Motor Rated Voltage: 150V · Motor Rated Current: 1.05A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed non-ventilated (TENV) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SSYF 0.2kW 1/15 | GV-SSYF 0.2kW 1/15, hollow shaft flange/face mount, 8.0Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SSY (S-PM sensorless servo) · Type: Right-Angle Super Heli-Cross · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Poles: 4P · Nominal Ratio: 1/15 · Actual Ratio: 1/15.79 · Output Speed: 200 r/min (motor 3000 r/min) · Permissible Output Torque: 8.0 Nm · Permissible Overhang Load: 1070 N · Permissible Thrust Load: N · Motor Rated Voltage: 150V · Motor Rated Current: 1.05A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed non-ventilated (TENV) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SSYF 0.2kW 1/20 | GV-SSYF 0.2kW 1/20, hollow shaft flange/face mount, 11Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SSY (S-PM sensorless servo) · Type: Right-Angle Super Heli-Cross · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Poles: 4P · Nominal Ratio: 1/20 · Actual Ratio: 1/20.77 · Output Speed: 150 r/min (motor 3000 r/min) · Permissible Output Torque: 11 Nm · Permissible Overhang Load: 1170 N · Permissible Thrust Load: 235 N · Motor Rated Voltage: 150V · Motor Rated Current: 1.05A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed non-ventilated (TENV) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SSYF 0.2kW 1/25 | GV-SSYF 0.2kW 1/25, hollow shaft flange/face mount, 13Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SSY (S-PM sensorless servo) · Type: Right-Angle Super Heli-Cross · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Poles: 4P · Nominal Ratio: 1/25 · Actual Ratio: 1/25.83 · Output Speed: 120 r/min (motor 3000 r/min) · Permissible Output Torque: 13 Nm · Permissible Overhang Load: 1220 N · Permissible Thrust Load: N · Motor Rated Voltage: 150V · Motor Rated Current: 1.05A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed non-ventilated (TENV) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SSYF 0.2kW 1/30 | GV-SSYF 0.2kW 1/30, hollow shaft flange/face mount, 15Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SSY (S-PM sensorless servo) · Type: Right-Angle Super Heli-Cross · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Poles: 4P · Nominal Ratio: 1/30 · Actual Ratio: 1/30.21 · Output Speed: 100 r/min (motor 3000 r/min) · Permissible Output Torque: 15 Nm · Permissible Overhang Load: 1270 N · Permissible Thrust Load: 255 N · Motor Rated Voltage: 150V · Motor Rated Current: 1.05A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed non-ventilated (TENV) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SSYF 0.2kW 1/40 | GV-SSYF 0.2kW 1/40, hollow shaft flange/face mount, 20Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SSY (S-PM sensorless servo) · Type: Right-Angle Super Heli-Cross · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Poles: 4P · Nominal Ratio: 1/40 · Actual Ratio: 1/39.74 · Output Speed: 75 r/min (motor 3000 r/min) · Permissible Output Torque: 20 Nm · Permissible Overhang Load: 1420 N · Permissible Thrust Load: N · Motor Rated Voltage: 150V · Motor Rated Current: 1.05A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed non-ventilated (TENV) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SSYF 0.2kW 1/50 | GV-SSYF 0.2kW 1/50, hollow shaft flange/face mount, 25Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SSY (S-PM sensorless servo) · Type: Right-Angle Super Heli-Cross · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Poles: 4P · Nominal Ratio: 1/50 · Actual Ratio: 1/48.85 · Output Speed: 60 r/min (motor 3000 r/min) · Permissible Output Torque: 25 Nm · Permissible Overhang Load: 1470 N · Permissible Thrust Load: 294 N · Motor Rated Voltage: 150V · Motor Rated Current: 1.05A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed non-ventilated (TENV) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order | ||
| GV-SSYF 0.2kW 1/60 | GV-SSYF 0.2kW 1/60, hollow shaft flange/face mount, 28Nm, no brake | MITSUBISHI ELECTRIC | Series: GV-SSY (S-PM sensorless servo) · Type: Right-Angle Super Heli-Cross · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Poles: 4P · Nominal Ratio: 1/60 · Actual Ratio: 1/54.77 · Output Speed: 50 r/min (motor 3000 r/min) · Permissible Output Torque: 28 Nm · Permissible Overhang Load: 1510 N · Permissible Thrust Load: N · Motor Rated Voltage: 150V · Motor Rated Current: 1.05A · Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) · Insulation: 130(B) · Enclosure: Totally-enclosed non-ventilated (TENV) · Lubrication: Grease · Protection: IP44 (indoor) · Availability: Made-to-order |
