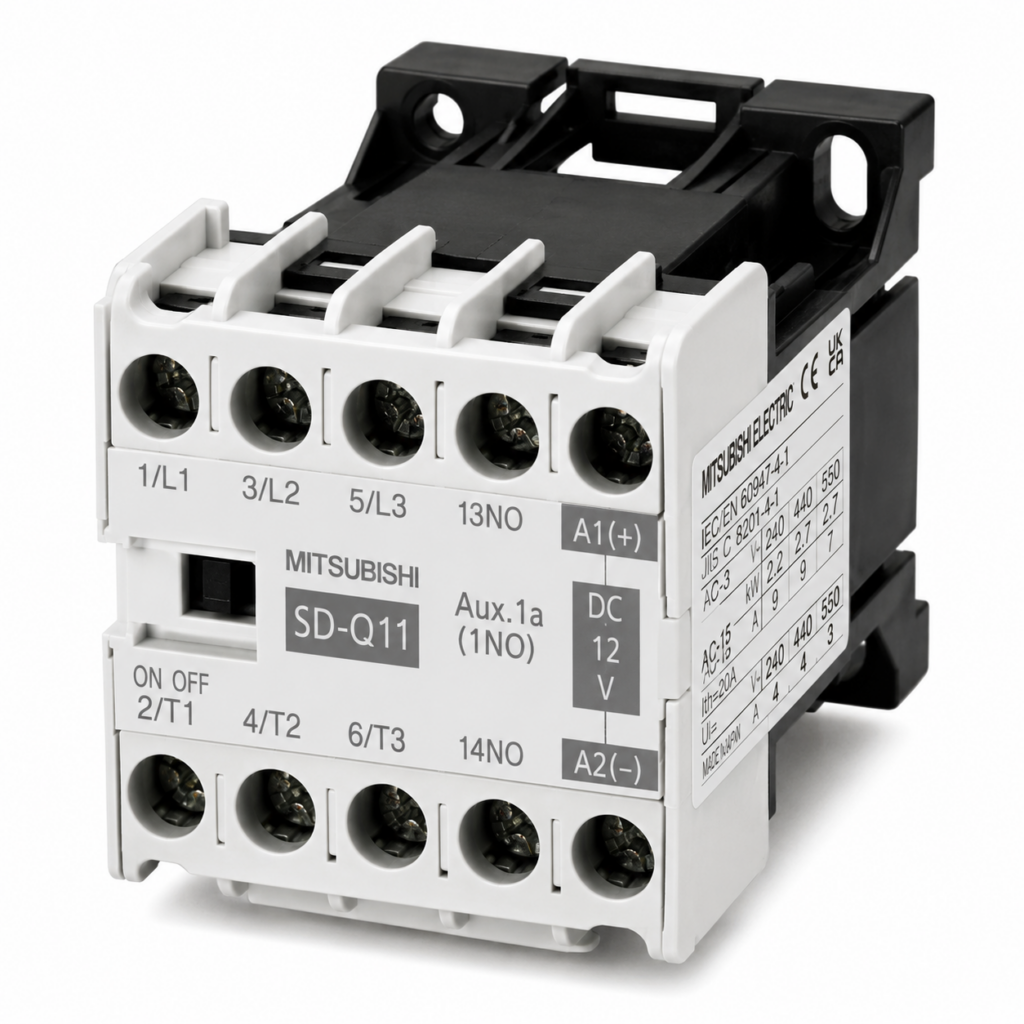

![[MITSUBISHI ELECTRIC] — MSOD-Q12 High-Sensitivity DC-Operated Magnetic Starter (Non-reversing, Standard Thermal)](https://img.prosourcemro.com/2026/08/Mstn-photo-sdq-1-1024x1024.png)
Magnetic Starters
MITSUBISHI ELECTRIC
[MITSUBISHI ELECTRIC] — MSOD-Q12 High-Sensitivity DC-Operated Magnetic Starter (Non-reversing, Standard Thermal)
Family ID: MEL-MSOD-Q12
Mitsubishi Electric MSOD-Q12 high-sensitivity magnetic starter: SD-Q12 DC-operated contactor combined with a TH-T18 standard 2-element thermal overload relay, driven directly from PLC transistor outputs (DC24V 0.1A). Non-reversing type with 1a1b auxiliary contacts. Heater designations 0.12A to 11A (16 steps) for three-phase motors up to 2.2kW at 200-220V and 3.7kW at 380-440V. Thermal relay mounts directly on the contactor without an adapter. Built-in surge absorption, safe-separation function per EN 60204-1, IEC/DIN 35mm rail mounting, operating coils DC12V/DC24V/DC48V. Conforms to JIS C8201-4-1, JIS C8201-5-1, IEC 60947-4-1, IEC 60947-5-1. UL, CSA, CE, CCC certified; EC directive and GB compliant. IEC/DIN 35mm rail mounting.
96 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MSOD-Q12 0.12A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 0.12A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.12A (adjustment 0.1-0.16A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.12A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 0.12A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.12A (adjustment 0.1-0.16A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.12A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 0.12A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.12A (adjustment 0.1-0.16A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.12A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 0.12A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.12A (adjustment 0.1-0.16A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.12A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 0.12A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.12A (adjustment 0.1-0.16A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.12A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 0.12A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.12A (adjustment 0.1-0.16A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.17A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 0.17A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.17A (adjustment 0.14-0.22A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.17A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 0.17A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.17A (adjustment 0.14-0.22A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.17A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 0.17A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.17A (adjustment 0.14-0.22A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.17A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 0.17A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.17A (adjustment 0.14-0.22A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.17A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 0.17A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.17A (adjustment 0.14-0.22A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.17A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 0.17A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.17A (adjustment 0.14-0.22A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.24A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 0.24A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.24A (adjustment 0.2-0.32A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.24A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 0.24A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.24A (adjustment 0.2-0.32A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.24A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 0.24A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.24A (adjustment 0.2-0.32A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.24A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 0.24A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.24A (adjustment 0.2-0.32A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.24A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 0.24A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.24A (adjustment 0.2-0.32A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.24A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 0.24A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.24A (adjustment 0.2-0.32A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.35A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 0.35A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.35A (adjustment 0.28-0.42A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.35A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 0.35A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.35A (adjustment 0.28-0.42A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.35A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 0.35A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.35A (adjustment 0.28-0.42A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.35A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 0.35A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.35A (adjustment 0.28-0.42A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.35A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 0.35A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.35A (adjustment 0.28-0.42A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.35A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 0.35A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.35A (adjustment 0.28-0.42A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.5A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 0.5A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.5A (adjustment 0.4-0.6A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.5A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 0.5A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.5A (adjustment 0.4-0.6A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.5A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 0.5A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.5A (adjustment 0.4-0.6A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.5A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 0.5A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.5A (adjustment 0.4-0.6A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.5A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 0.5A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.5A (adjustment 0.4-0.6A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.5A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 0.5A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.5A (adjustment 0.4-0.6A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.7A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 0.7A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.7A (adjustment 0.55-0.85A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.7A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 0.7A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.7A (adjustment 0.55-0.85A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.7A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 0.7A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.7A (adjustment 0.55-0.85A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.7A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 0.7A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.7A (adjustment 0.55-0.85A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.7A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 0.7A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.7A (adjustment 0.55-0.85A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.7A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 0.7A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.7A (adjustment 0.55-0.85A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.9A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 0.9A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.9A (adjustment 0.7-1.1A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.9A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 0.9A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.9A (adjustment 0.7-1.1A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.9A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 0.9A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.9A (adjustment 0.7-1.1A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.9A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 0.9A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 0.9A (adjustment 0.7-1.1A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.9A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 0.9A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 0.9A (adjustment 0.7-1.1A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 0.9A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 0.9A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 0.9A (adjustment 0.7-1.1A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 1.3A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 1.3A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 1.3A (adjustment 1-1.6A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 1.3A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 1.3A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 1.3A (adjustment 1-1.6A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 1.3A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 1.3A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 1.3A (adjustment 1-1.6A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 1.3A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 1.3A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 1.3A (adjustment 1-1.6A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 1.3A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 1.3A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 1.3A (adjustment 1-1.6A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 1.3A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 1.3A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 1.3A (adjustment 1-1.6A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 1.7A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 1.7A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 1.7A (adjustment 1.4-2A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 1.7A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 1.7A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 1.7A (adjustment 1.4-2A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 1.7A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 1.7A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 1.7A (adjustment 1.4-2A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 1.7A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 1.7A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 1.7A (adjustment 1.4-2A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 1.7A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 1.7A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 1.7A (adjustment 1.4-2A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 1.7A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 1.7A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 1.7A (adjustment 1.4-2A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 2.1A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 2.1A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 2.1A (adjustment 1.7-2.5A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 2.1A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 2.1A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 2.1A (adjustment 1.7-2.5A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 2.1A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 2.1A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 2.1A (adjustment 1.7-2.5A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 2.1A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 2.1A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 2.1A (adjustment 1.7-2.5A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 2.1A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 2.1A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 2.1A (adjustment 1.7-2.5A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 2.1A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 2.1A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 2.1A (adjustment 1.7-2.5A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 2.5A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 2.5A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 2.5A (adjustment 2-3A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 2.5A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 2.5A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 2.5A (adjustment 2-3A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 2.5A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 2.5A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 2.5A (adjustment 2-3A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 2.5A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 2.5A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 2.5A (adjustment 2-3A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 2.5A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 2.5A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 2.5A (adjustment 2-3A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 2.5A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 2.5A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 2.5A (adjustment 2-3A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 3.6A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 3.6A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 3.6A (adjustment 2.8-4.4A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 3.6A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 3.6A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 3.6A (adjustment 2.8-4.4A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 3.6A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 3.6A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 3.6A (adjustment 2.8-4.4A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 3.6A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 3.6A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 3.6A (adjustment 2.8-4.4A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 3.6A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 3.6A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 3.6A (adjustment 2.8-4.4A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 3.6A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 3.6A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 3.6A (adjustment 2.8-4.4A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 5A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 5A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 5A (adjustment 4-6A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 5A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 5A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 5A (adjustment 4-6A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 5A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 5A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 5A (adjustment 4-6A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 5A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 5A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 5A (adjustment 4-6A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 5A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 5A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 5A (adjustment 4-6A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 5A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 5A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 5A (adjustment 4-6A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 6.6A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 6.6A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 6.6A (adjustment 5.2-8A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 6.6A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 6.6A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 6.6A (adjustment 5.2-8A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 6.6A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 6.6A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 6.6A (adjustment 5.2-8A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 6.6A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 6.6A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 6.6A (adjustment 5.2-8A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 6.6A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 6.6A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 6.6A (adjustment 5.2-8A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 6.6A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 6.6A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 6.6A (adjustment 5.2-8A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 9A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 9A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 9A (adjustment 7-11A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 9A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 9A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 9A (adjustment 7-11A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 9A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 9A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 9A (adjustment 7-11A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 9A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 9A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 9A (adjustment 7-11A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 9A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 9A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 9A (adjustment 7-11A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 9A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 9A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 9A (adjustment 7-11A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 11A 200V DC12V | High-sensitivity starter MSOD-Q12, heater 11A, 200V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 11A (adjustment 9-13A) · Main Circuit: 200V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 11A 200V DC24V | High-sensitivity starter MSOD-Q12, heater 11A, 200V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 11A (adjustment 9-13A) · Main Circuit: 200V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 11A 200V DC48V | High-sensitivity starter MSOD-Q12, heater 11A, 200V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 11A (adjustment 9-13A) · Main Circuit: 200V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 11A 400V DC12V | High-sensitivity starter MSOD-Q12, heater 11A, 400V main circuit, DC12V | MITSUBISHI ELECTRIC | Heater: 11A (adjustment 9-13A) · Main Circuit: 400V class · Coil: DC12V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 11A 400V DC24V | High-sensitivity starter MSOD-Q12, heater 11A, 400V main circuit, DC24V | MITSUBISHI ELECTRIC | Heater: 11A (adjustment 9-13A) · Main Circuit: 400V class · Coil: DC24V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) | ||
| MSOD-Q12 11A 400V DC48V | High-sensitivity starter MSOD-Q12, heater 11A, 400V main circuit, DC48V | MITSUBISHI ELECTRIC | Heater: 11A (adjustment 9-13A) · Main Circuit: 400V class · Coil: DC48V · Thermal Relay: TH-T18 · Aux Contacts: 1a1b (standard) |
