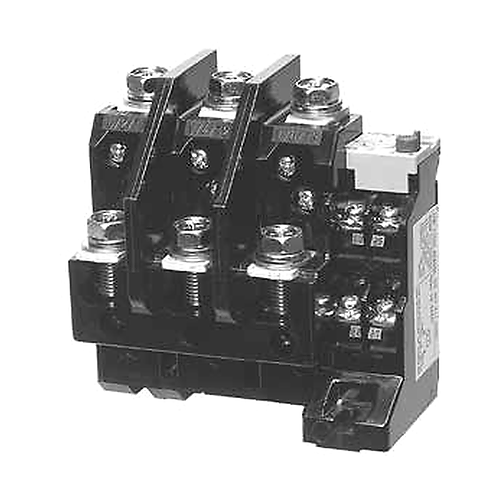

[MITSUBISHI ELECTRIC] — TH-T100 / TH-T100KP Thermal Overload Relay (67-82A, T100 Frame)
Family ID: MEL-TH-T100
Mitsubishi Electric TH-T100 / TH-T100KP thermal overload relay for MS-T/N series magnetic contactors and starters, t100 frame, heater designations 67-82A. 2-element type for overload protection, KP 3-element (2E) type for combined overload and open-phase protection. Manual reset standard (auto-reset AR type available to order); auxiliary contact 1a1b. Compliant with JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| TH-T100 67A | TH-T100 thermal relay, 67A heater, 2-element | Mitsubishi Electric | Frame: T100 · Type: Thermal Overload Relay · Elements: 2-element · Protection: Overload · Heater: 67A (adjustable 54-80A) · Mounting: For magnetic starter combination · Reset: Manual (standard) · Aux Contact: 1a1b · Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4 | ||
| TH-T100 82A | TH-T100 thermal relay, 82A heater, 2-element | Mitsubishi Electric | Frame: T100 · Type: Thermal Overload Relay · Elements: 2-element · Protection: Overload · Heater: 82A (adjustable 65-100A) · Mounting: For magnetic starter combination · Reset: Manual (standard) · Aux Contact: 1a1b · Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4 | ||
| TH-T100KP 67A | TH-T100KP thermal relay, 67A heater, 3-element 2E | Mitsubishi Electric | Frame: T100 · Type: Thermal Overload Relay · Elements: 3-element (2E) · Protection: Overload + Open-phase · Heater: 67A (adjustable 54-80A) · Mounting: For magnetic starter combination · Reset: Manual (standard) · Aux Contact: 1a1b · Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4 | ||
| TH-T100KP 82A | TH-T100KP thermal relay, 82A heater, 3-element 2E | Mitsubishi Electric | Frame: T100 · Type: Thermal Overload Relay · Elements: 3-element (2E) · Protection: Overload + Open-phase · Heater: 82A (adjustable 65-100A) · Mounting: For magnetic starter combination · Reset: Manual (standard) · Aux Contact: 1a1b · Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4 |
