![[Mitutoyo] — 102178 Sub Anvil](https://img.prosourcemro.com/2026/05/1239077-1.jpg)
Measuring Instruments
Mitutoyo

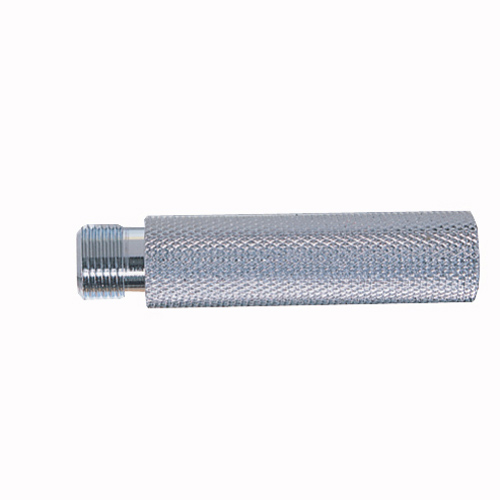

[Mitutoyo] — 102178 Sub Anvil
Family ID: 402-2727
Mitutoyo 102178 Sub Anvil is a precision replacement and accessory component for micrometer measurement setups, sourced direct from Korea. Sub anvils are used to adapt or extend the measuring range of outside micrometers, making them practical for machinists and quality control technicians working with non-standard workpiece geometries. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 402-2727 | 102178 | Mitutoyo | 102178 (50mm) | Applicable Model: 511-703/713/723 | Extension Length: 50 | ||
| 402-2736 | 953550 | Mitutoyo | 953550(250mm) | Note: 511 Series Extension Rod | Applicable Model: 511-701 | Extension Length: 250 | ||
| 402-2745 | 953553 | Mitutoyo | 953553(250mm) | Note: 511 Series Extension Rod | Applicable Model: 511-702~4/803/804 | Extension Length: 250 | ||
| 402-2763 | 953551 | Mitutoyo | 953551(500mm) | Note: 511 Series Extension Rod | Applicable Model: 511-701 | Extension Length: 500 | ||
| 402-2772 | 953554 | Mitutoyo | 953554(500mm) | Note: 511 Series Extension Rod | Applicable Model: 511-702~4/803/804 | Extension Length: 500 | ||
| 402-2781 | 953558 | Mitutoyo | 953558(500mm) | Note: 511 Series Extension Rod | Applicable Model: 511-705/706/805~8 | Extension Length: 500 | ||
| 402-2790 | 953555 | Mitutoyo | 953555(750mm) | Note: 511 Series Extension Rod | Applicable Model: 511-702~4/803/804 | Extension Length: 750 | ||
| 402-2806 | 953559 | Mitutoyo | 953559(750mm) | Note: 511 Series Extension Rod | Applicable Models: 511-705/706/805~8 | Extension Length: 750 | ||
| 402-2815 | 953556 | Mitutoyo | 953556(1000mm) | Note: 511 Series Extension Rod | Applicable Model: 511-702~4/803/804 | Extension Length: 1/000 | ||
| 402-2824 | 953560 | Mitutoyo | 953560(1000mm) | Note: 511 Series Extension Rod | Application Model: 511-705/706/805~8 | Extension Length: 1/000 | ||
| 402-6866 | 953549 | Mitutoyo | 953549(125mm) | Note: 511 Series Extension Rod | Applicable Model: 511-701 | Extension Length: 125 | ||
| 402-9076 | 202974 | Mitutoyo | 202974 (75mm) | Applicable Model: 511-706/716/726 | Extension Length: 75 |
