![[Mitutoyo] — 527-201 Vernier Depth Gauge](https://img.prosourcemro.com/2026/05/1118307-1.jpg)
Measuring Instruments
Mitutoyo

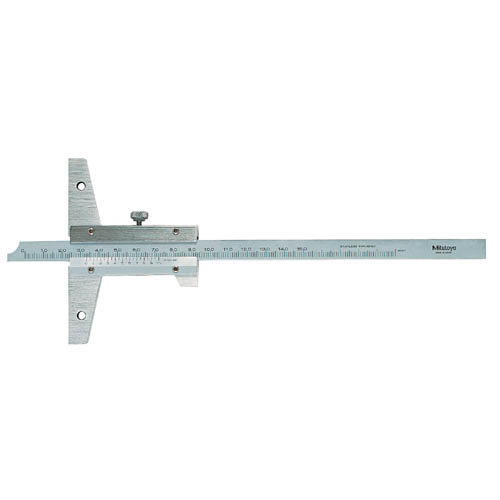

[Mitutoyo] — 527-201 Vernier Depth Gauge
Family ID: 402-0622
Mitutoyo's 527-201 Vernier Depth Gauge delivers precise depth measurement for stepped surfaces, slots, and blind holes, sourced direct from Korea. Depth gauges of this type are commonly used by machinists, toolroom technicians, and quality control inspectors to verify dimensional accuracy on machined components and assemblies. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 402-0622 | 527-201 | Mitutoyo | 527-201 (150*0.05) | Measurement Range: 0~150 | Minimum Division: 0.05 | Base: 100 | ||
| 402-0631 | 527-202 | Mitutoyo | 527-202 (200*0.05) | Measurement Range: 0~200 | Minimum Division: 0.05 | Base: 100 | ||
| 402-0640 | 527-203 | Mitutoyo | 527-203 (300*0.05) | Measurement Range: 0~300 | Minimum Division: 0.05 | Base: 100 | ||
| 402-6282 | 527-204 | Mitutoyo | 527-204 (600*0.05) | Measurement Range: 0~600 | Minimum Division: 0.05 | Base: 250 | ||
| 402-6291 | 527-121 | Mitutoyo | 527-121 (150*0.02) | Measurement Range: 0~150 | Minimum Scale: 0.02 | Base: 100 | ||
| 402-6307 | 527-122 | Mitutoyo | 527-122 (200*0.02) | Measurement Range: 0~200 | Minimum Division: 0.02 | Base: 100 | ||
| 402-6316 | 527-123 | Mitutoyo | 527-123 (300*0.02) | Measurement Range: 0~300 | Minimum Division: 0.02 | Base: 100 |
