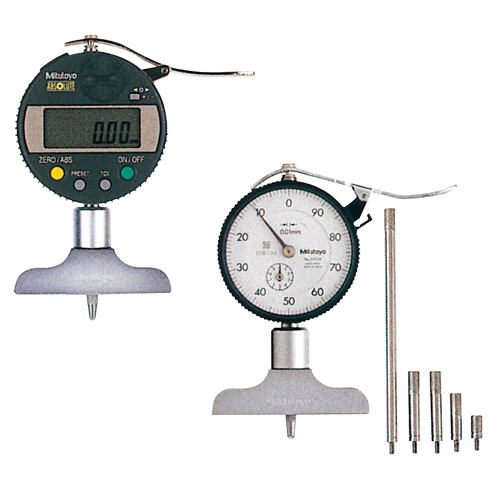

[Mitutoyo] — 7211A Dial Depth Gauge
Family ID: 402-5308
Mitutoyo 7211A Dial Depth Gauge delivers precise depth measurement for machined bores, slots, and stepped surfaces, sourced direct from Korea. Depth gauges of this type are a shop-floor staple for machinists, toolmakers, and QC inspectors who need reliable, repeatable readings without the setup time of digital alternatives. Request a quote today for export-ready supply, competitive pricing, and fulfillment through a KITA-registered Korean exporter.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 402-5308 | 7211A | Mitutoyo | 7211A (old.7211, 200mm/0.01) | Stroke: 10 | Measurement Range: 0~200 | Base: 63.5 | Measuring Rod: 5pcs (10/20/30/30/100) | ||
| 402-5821 | 7210A | Mitutoyo | 7210A (old.7210, 10mm/0.01) | Stroke: 10 | Measurement Range: 0~10 | Base: 40 | Measurement Rod: Needle Point | ||
| 402-6334 | 7212A | Mitutoyo | 7212A (old.7212, 200mm/0.01) | Stroke: 10 | Measurement Range: 0~200 | Base: 101.6 | Measuring Rod: 5 pcs (10/20/30/30/100) | ||
| 402-6343 | 7220A | Mitutoyo | 7220A (old.7220, 200mm/0.01) | Stroke: 10 | Measurement Range: 0~200 | Base: 100 | Measuring Rod: 5 pcs (10/20/30/30/100) | ||
| 402-6352 | 7221A | Mitutoyo | 7221A (old.7221, 200mm/0.01) | Stroke: 10 | Measurement Range: 0~200 | Base: 150 | Measurement Rod: 5 pcs (10/20/30/30/100) | ||
| 402-6361 | 7231A | Mitutoyo | 7231A (old.7231, 200mm/0.01) | Stroke: 5 | Measurement Range: 0~200 | Base: 63.5 | Measuring Rod: 5 pcs (10/20/30/30/100) | ||
| 402-8013 | 7222A | Mitutoyo | 7222A (old.7222, 10mm/0.01) | Stroke: 10 | Measurement Range: 0~10 | Base: 16Ø | Measuring Rod: - |
