Angular Contact
NSK

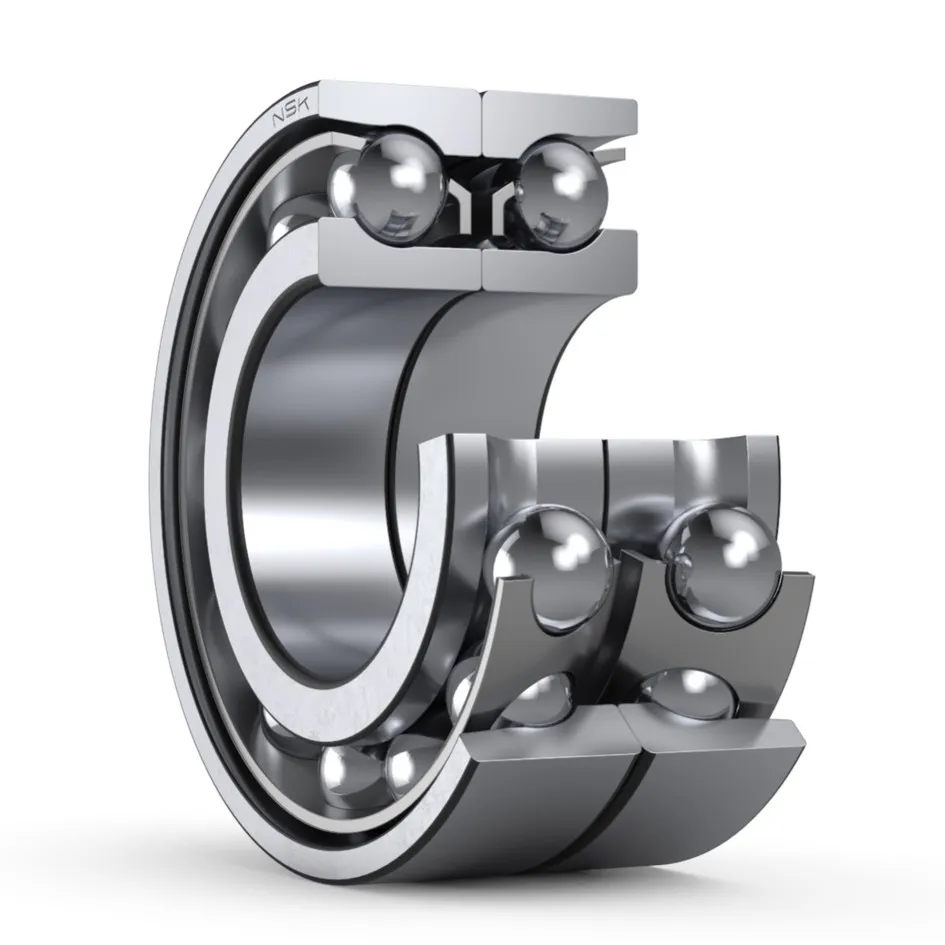

[NSK] 7200 Series Angular Contact Ball Bearings (DB)
Family ID: NSK-7200-DB-SERIES
Single-row angular contact ball bearings designed to support combined radial and axial loads with high precision and high-speed performance.
21 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| NSK-7200-DB | 7200 Series Angular Contact Ball Bearing | NSK | 10x30x9 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7201-DB | 7200 Series Angular Contact Ball Bearing | NSK | 12x32x10 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7202-DB | 7200 Series Angular Contact Ball Bearing | NSK | 15x35x11 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7203-DB | 7200 Series Angular Contact Ball Bearing | NSK | 17x40x12 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7204-DB | 7200 Series Angular Contact Ball Bearing | NSK | 20x47x14 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7205-DB | 7200 Series Angular Contact Ball Bearing | NSK | 25x52x15 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7206-DB | 7200 Series Angular Contact Ball Bearing | NSK | 30x62x16 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7207-DB | 7200 Series Angular Contact Ball Bearing | NSK | 35x72x17 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7208-DB | 7200 Series Angular Contact Ball Bearing | NSK | 40x80x18 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7209-DB | 7200 Series Angular Contact Ball Bearing | NSK | 45x85x19 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7210-DB | 7200 Series Angular Contact Ball Bearing | NSK | 50x90x20 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7211-DB | 7200 Series Angular Contact Ball Bearing | NSK | 55x100x21 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7212-DB | 7200 Series Angular Contact Ball Bearing | NSK | 60x110x22 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7213-DB | 7200 Series Angular Contact Ball Bearing | NSK | 65x120x23 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7214-DB | 7200 Series Angular Contact Ball Bearing | NSK | 70x125x24 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7215-DB | 7200 Series Angular Contact Ball Bearing | NSK | 75x130x25 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7216-DB | 7200 Series Angular Contact Ball Bearing | NSK | 80x140x26 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7217-DB | 7200 Series Angular Contact Ball Bearing | NSK | 85x150x28 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7218-DB | 7200 Series Angular Contact Ball Bearing | NSK | 90x160x30 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7219-DB | 7200 Series Angular Contact Ball Bearing | NSK | 95x170x32 mm | Angular Contact | 15° | Back-to-Back (DB) | ||
| NSK-7220-DB | 7200 Series Angular Contact Ball Bearing | NSK | 100x180x34 mm | Angular Contact | 15° | Back-to-Back (DB) |
Product Details
7200 Series angular contact ball bearings from NSK. Designed for applications requiring high rotational accuracy and the ability to handle axial loads in one direction or paired configurations.
