Angular Contact
NTN

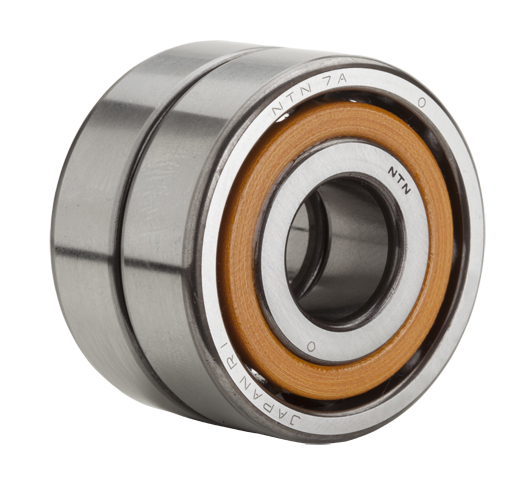

[NTN] 7200 Series Angular Contact Ball Bearings (DF)
Family ID: NTN-7200-DF-SERIES
Single-row angular contact ball bearings designed to support combined radial and axial loads with high precision and high-speed performance.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| NTN-7200-DF | 7200 Series Angular Contact Ball Bearing | NTN | 10x30x9 mm | Angular Contact | 15° | Face-to-Face (DF) | ||
| NTN-7201-DF | 7200 Series Angular Contact Ball Bearing | NTN | 12x32x10 mm | Angular Contact | 15° | Face-to-Face (DF) | ||
| NTN-7202-DF | 7200 Series Angular Contact Ball Bearing | NTN | 15x35x11 mm | Angular Contact | 15° | Face-to-Face (DF) | ||
| NTN-7203-DF | 7200 Series Angular Contact Ball Bearing | NTN | 17x40x12 mm | Angular Contact | 15° | Face-to-Face (DF) | ||
| NTN-7204-DF | 7200 Series Angular Contact Ball Bearing | NTN | 20x47x14 mm | Angular Contact | 15° | Face-to-Face (DF) | ||
| NTN-7205-DF | 7200 Series Angular Contact Ball Bearing | NTN | 25x52x15 mm | Angular Contact | 15° | Face-to-Face (DF) | ||
| NTN-7206-DF | 7200 Series Angular Contact Ball Bearing | NTN | 30x62x16 mm | Angular Contact | 15° | Face-to-Face (DF) | ||
| NTN-7207-DF | 7200 Series Angular Contact Ball Bearing | NTN | 35x72x17 mm | Angular Contact | 15° | Face-to-Face (DF) | ||
| NTN-7208-DF | 7200 Series Angular Contact Ball Bearing | NTN | 40x80x18 mm | Angular Contact | 15° | Face-to-Face (DF) | ||
| NTN-7209-DF | 7200 Series Angular Contact Ball Bearing | NTN | 45x85x19 mm | Angular Contact | 15° | Face-to-Face (DF) |
Product Details
7200 Series angular contact ball bearings from NTN. Designed for applications requiring high rotational accuracy and the ability to handle axial loads in one direction or paired configurations.
