Switches
Omron

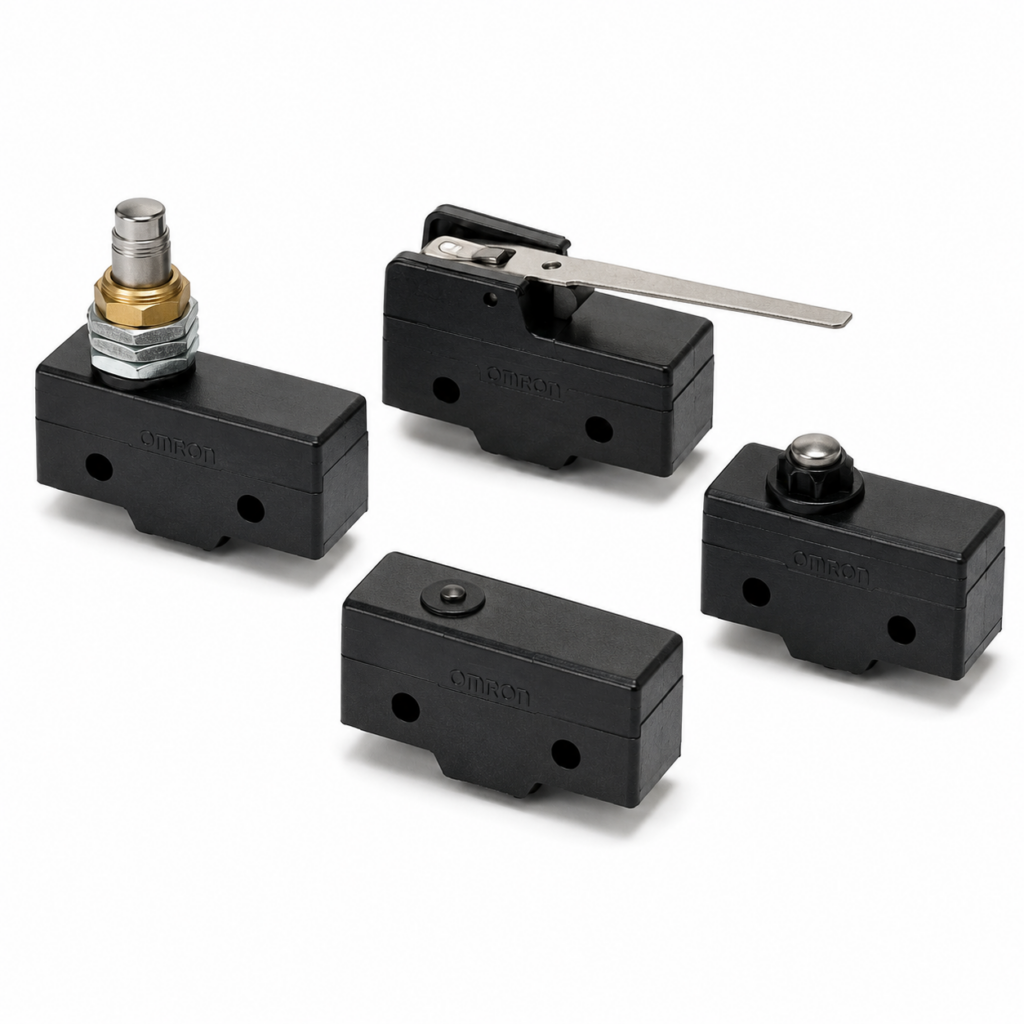

[OMRON] — A General-purpose Basic Switch (High-capacity 20A, Pin/Lever/Roller Actuators)
Family ID: OMRON-A-BASIC
High-capacity Switch Capable of Handling 20 A Loads with Large Inrush Currents
17 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| A-20G | A Pin plunger Solder | OMRON | Type: Basic Switch (High-capacity) | Actuator: Pin plunger | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Solder | ||
| A-20G-B | A Pin plunger Screw | OMRON | Type: Basic Switch (High-capacity) | Actuator: Pin plunger | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Screw | ||
| A-20GD | A Short spring plunger Solder | OMRON | Type: Basic Switch (High-capacity) | Actuator: Short spring plunger | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Solder | ||
| A-20GD-B | A Short spring plunger Screw | OMRON | Type: Basic Switch (High-capacity) | Actuator: Short spring plunger | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Screw | ||
| A-20GQ | A Panel mount plunger Solder | OMRON | Type: Basic Switch (High-capacity) | Actuator: Panel mount plunger | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Solder | ||
| A-20GQ-B | A Panel mount plunger Screw | OMRON | Type: Basic Switch (High-capacity) | Actuator: Panel mount plunger | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Screw | ||
| A-20GQ22 | A Panel mount roller plunger Solder | OMRON | Type: Basic Switch (High-capacity) | Actuator: Panel mount roller plunger | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Solder | ||
| A-20GQ22-B | A Panel mount roller plunger Screw | OMRON | Type: Basic Switch (High-capacity) | Actuator: Panel mount roller plunger | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Screw | ||
| A-20GQ21-B | A Panel mount cross roller plunger Screw | OMRON | Type: Basic Switch (High-capacity) | Actuator: Panel mount cross roller plunger | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Screw | ||
| A-20GV21 | A Short hinge lever Solder | OMRON | Type: Basic Switch (High-capacity) | Actuator: Short hinge lever | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Solder | ||
| A-20GV21-B | A Short hinge lever Screw | OMRON | Type: Basic Switch (High-capacity) | Actuator: Short hinge lever | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Screw | ||
| A-20GV | A Hinge lever Solder | OMRON | Type: Basic Switch (High-capacity) | Actuator: Hinge lever | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Solder | ||
| A-20GV-B | A Hinge lever Screw | OMRON | Type: Basic Switch (High-capacity) | Actuator: Hinge lever | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Screw | ||
| A-20GV22 | A Short hinge roller lever Solder | OMRON | Type: Basic Switch (High-capacity) | Actuator: Short hinge roller lever | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Solder | ||
| A-20GV22-B | A Short hinge roller lever Screw | OMRON | Type: Basic Switch (High-capacity) | Actuator: Short hinge roller lever | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Screw | ||
| A-20GV2 | A Hinge roller lever Solder | OMRON | Type: Basic Switch (High-capacity) | Actuator: Hinge roller lever | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Solder | ||
| A-20GV2-B | A Hinge roller lever Screw | OMRON | Type: Basic Switch (High-capacity) | Actuator: Hinge roller lever | Rated Current: 20 A | Contact Gap: G (0.5mm) | Terminal: Screw |
