Switches
Omron

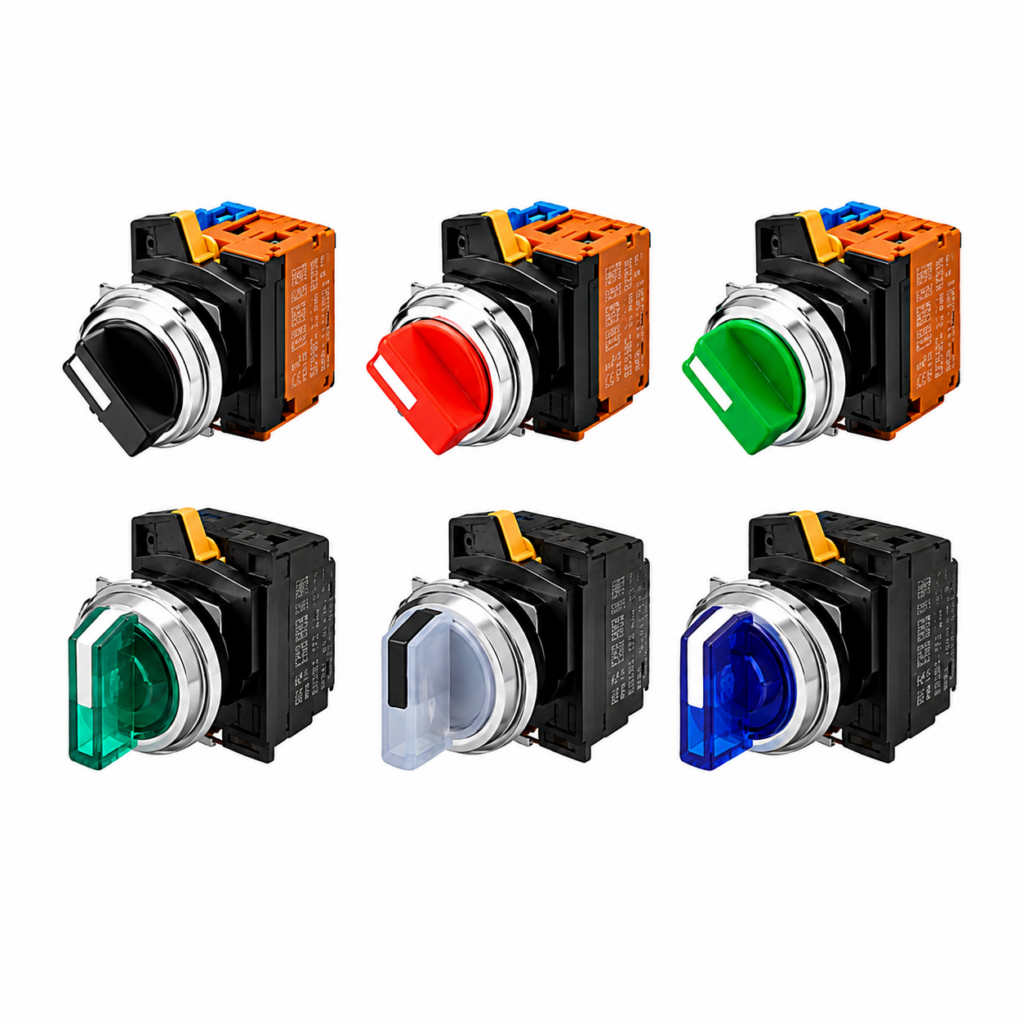

[OMRON] — A30NW Lighted Selector Switch Set (30mm, 2/3-position, Brushed metal, LED, Screw+Push-In)
Family ID: OMRON-A30NW-LIT
30-mm dia. Knob-type Selector Switches Control panel miniaturization through a more compact design and modified wiring direction.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| A30NW-2M(3)-(4)(4)A-G(7)(7)(7)-(8)(9) | A30NW 2-position Screw 1 output | OMRON | Type: Selector Switch Set (30mm, Lighted, Brushed metal) | Positions: 2-position | Terminal: Screw | Outputs: 1 output | Reset: M (Manual) / L (Auto left) | Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | LED Colors: R/G/Y/A/O/W | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (3)=reset, (4)(4)=color, (7)(7)(7)=contact, (8)=LED color, (9)=voltage when ordering | ||
| A30NW-2M(3)-(4)(4)A-P(7)(7)(7)-(8)(9) | A30NW 2-position Push-In Plus 1 output | OMRON | Type: Selector Switch Set (30mm, Lighted, Brushed metal) | Positions: 2-position | Terminal: Push-In Plus | Outputs: 1 output | Reset: M (Manual) / L (Auto left) | Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | LED Colors: R/G/Y/A/O/W | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (3)=reset, (4)(4)=color, (7)(7)(7)=contact, (8)=LED color, (9)=voltage when ordering | ||
| A30NW-3M(3)-(4)(4)A-G(7)(7)(7)-(8)(9) | A30NW 3-position Screw 2 outputs | OMRON | Type: Selector Switch Set (30mm, Lighted, Brushed metal) | Positions: 3-position | Terminal: Screw | Outputs: 2 outputs | Reset: M (Manual) / L (Auto left) / R (Auto right) / B (Auto both) | Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | Contact Codes: 101/202/102/201 | LED Colors: R/G/Y/A/O/W | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (3)=reset, (4)(4)=color, (7)(7)(7)=contact, (8)=LED color, (9)=voltage when ordering | ||
| A30NW-3M(3)-(4)(4)A-P(7)(7)(7)-(8)(9) | A30NW 3-position Push-In Plus 2 outputs | OMRON | Type: Selector Switch Set (30mm, Lighted, Brushed metal) | Positions: 3-position | Terminal: Push-In Plus | Outputs: 2 outputs | Reset: M (Manual) / L (Auto left) / R (Auto right) / B (Auto both) | Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | Contact Codes: 101/202/102/201 | LED Colors: R/G/Y/A/O/W | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (3)=reset, (4)(4)=color, (7)(7)(7)=contact, (8)=LED color, (9)=voltage when ordering |
